Class II Biological Safety Cabinet

ProductsBiological Safety CabinetClass II BSC › Airstream® Gen 3 Class II BSC- S Series

Airstream® Class II BSC- S Series

AC2-_S_

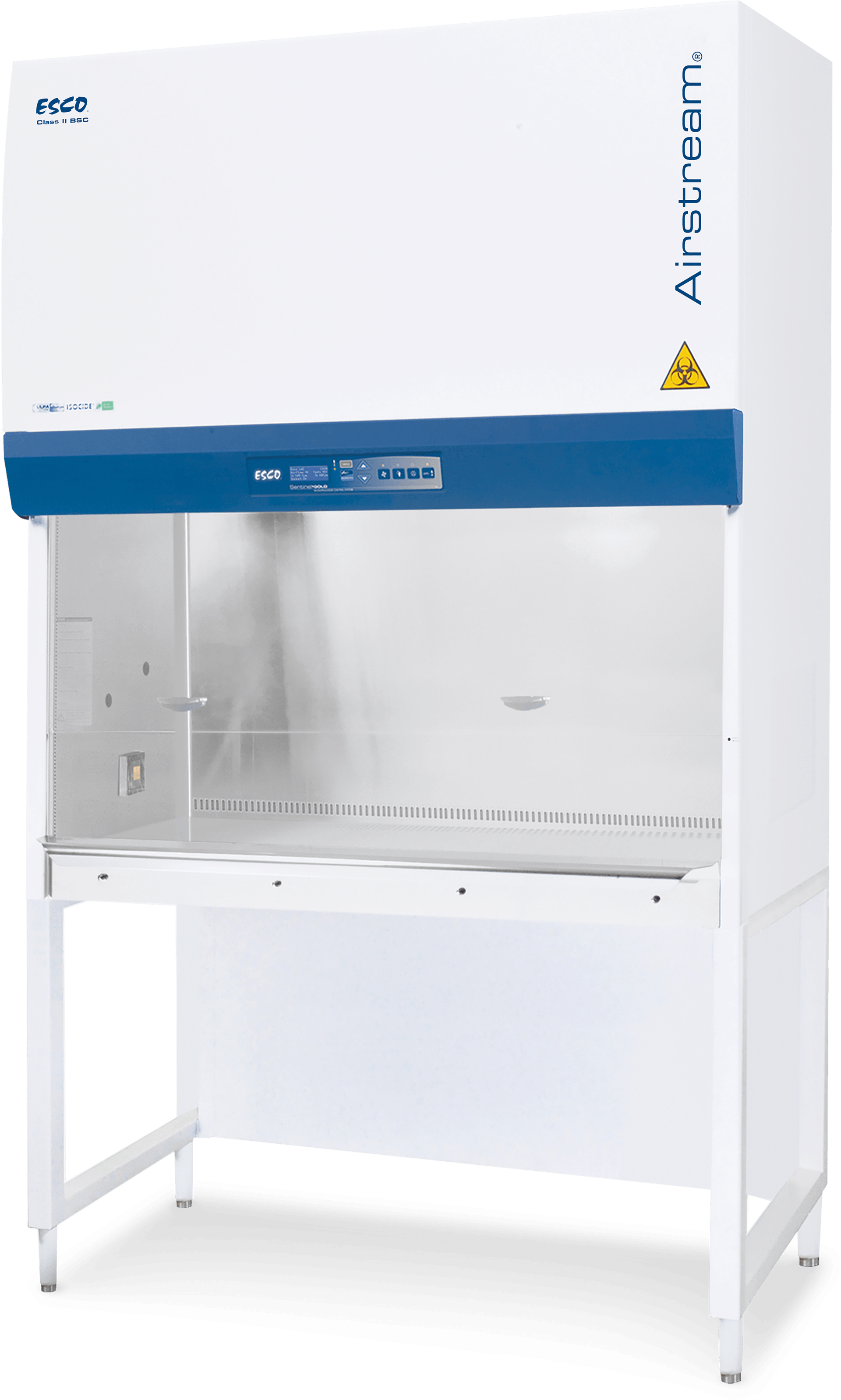

Airstream® Gen 3 Class II BSC- S Series

The Esco Airstream® Gen 3 Class II Biological Safety Cabinet (AC2) is an effective solution in providing operator, product and environmental protection. It also features stable and self-compensating airflow, despite building voltage fluctuations & filter loading. Certified to EN 12469, Esco Airstream® Class II Biological Safety Cabinet also has antimicrobial coating on all its external and internal painted surfaces for improved safety.

The AC2- S series Class II Biosafety cabinet features a one-piece stainless steel with coved corners for cleanability. The side capture zones and negative pressure side walls optimize containment.

Features

Sentinel™ Gold Microprocessor Control system

  • Has audible and visual alarms
  • Displays all safety information on one screen
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

DC-ECM Blower

  • Energy-efficient with 70% energy savings compared to AC motor
  • Single blower for inflow and downflow, energy-efficient and cost-effective.

ULPA Filter

  • 10 x filtration efficiency compared to HEPA filter
  • 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA or >99.999% at MPPS, H14 as per EN 1822 EU

Cabinet construction

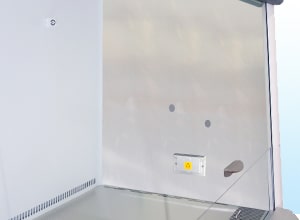

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean

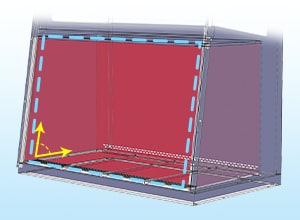

Ergonomic features

  • Angled front improves reach and comfort, reduces glare.
  • Frameless, shatterproof sash is easier to clean, offers larger, unobstructed viewing area.

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50/60 Hz
2010767AC2-2S8Airstream® Class II, Biological Safety Cabinet (S-Series), 2ft/0.6m
2010721AC2-3S8Airstream® Class II, Biological Safety Cabinet (S-Series), 3ft/0.9m
2010711AC2-4S8Airstream® Class II, Biological Safety Cabinet (S-Series), 4ft/1.2m
2010725AC2-5S8Airstream® Class II, Biological Safety Cabinet (S-Series), 5ft/1.5m
2010722AC2-6S8Airstream® Class II, Biological Safety Cabinet (S-Series), 6ft/1.8m
110-120 VAC, 50/60 Hz
2010790AC2-2S9Airstream® Class II, Biological Safety Cabinet (S-Series), 2ft/0.6m
2010792AC2-3S9Airstream® Class II, Biological Safety Cabinet (S-Series), 3ft/0.9m
2010744AC2-4S9Airstream® Class II, Biological Safety Cabinet (S-Series), 4ft/1.2m
2010797AC2-5S9Airstream® Class II, Biological Safety Cabinet (S-Series), 5ft/1.5m
2010800AC2-6S9Airstream® Class II, Biological Safety Cabinet (S-Series), 6ft/1.8m

Accessories

Item CodeModel CodeDescription
5170251UV-15AUV Lamp for 2ft, 3ft Cabinets and AC3-4B
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length - Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length - Vacuum
5170503SF-1N20European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502SF-1A20European Style Service Fixture with 20mm Thread Length - Air
5170458SF-1W20European Style Service Fixture with 20mm Thread Length - Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
Support Stands
SPC-_A0 Gen2Support Stand with Caster Wheels (Height 28”)
SPC-_B0 Gen 2Support Stand with Caster Wheels (Height 34”)
SAL-_A0 Gen 2Support Stand with Leveling Feet - I (Height 28”)
SAL-_B0 Gen 2Support Stand with Leveling Feet - I (Height 34”)
IV Bars
5170498IV-605IV Bar 605mm
5170499IV-910IV Bar 910mm
5170231IV-1215IV Bar 1215mm
5170500IV-1520IV Bar 1520mm
5170501IV-1825IV Bar 1825mm
Pre-Filters
5090060PF-40Prefilter, 590x125x6mm, AC2-2ft
5090061PF-41Prefilter, 895x125x6mm, AC2-3ft
5090062PF-42Prefilter, 1200x125x6mm, AC2-4ft
5090063PF-43Prefilter, 1505x125x6mm, AC2-5ft
5090064PF-44Prefilter, 1810x125x6mm, AC2-6ft
