SC2-_E_

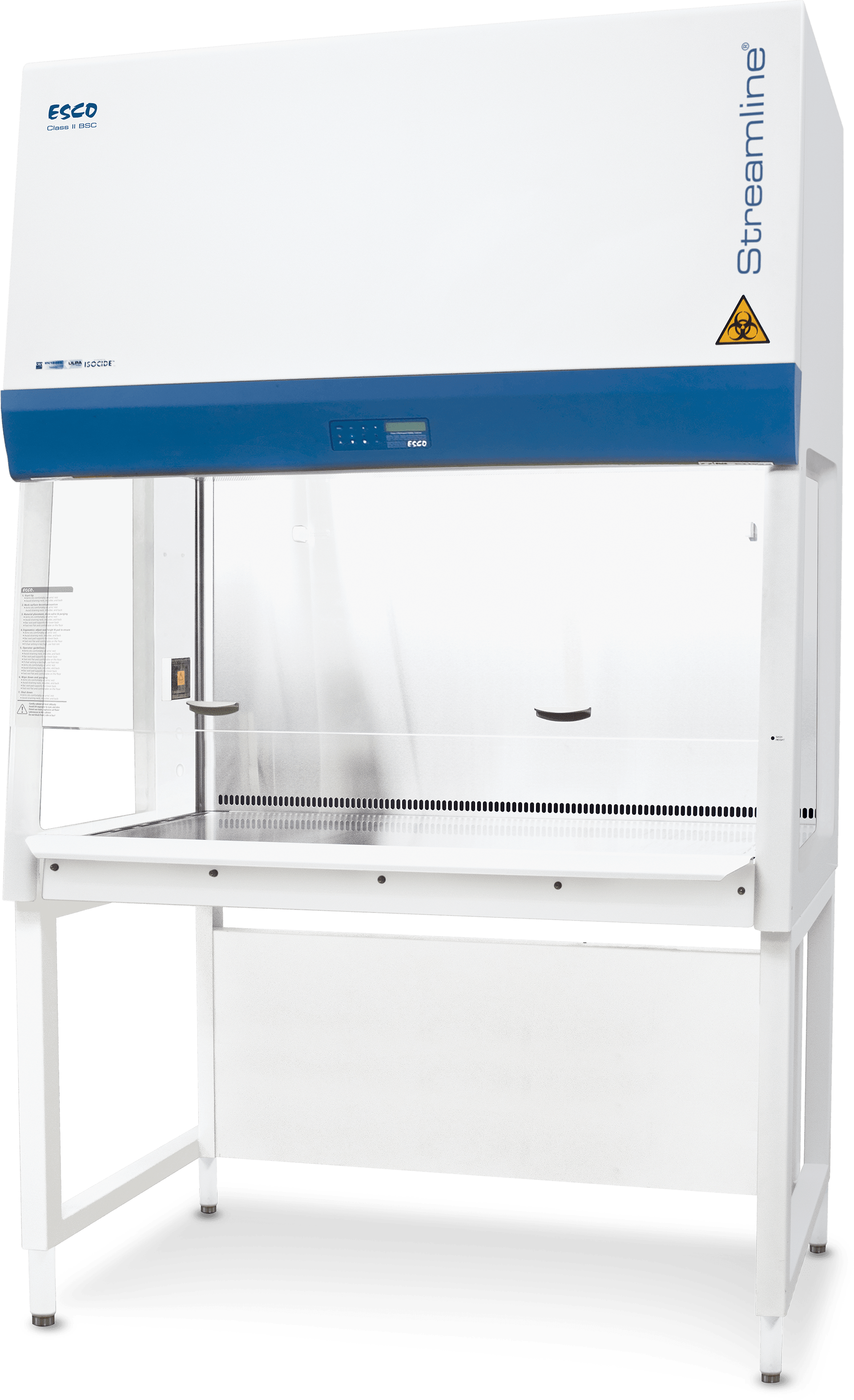

Streamline^® Class II BSC - E Series

Esco Streamline^® Class II Biological Safety Cabinets (SC2) provide optimum performance which is continuously monitored and controlled by the user-friendly Sentinel™ Silver control system, giving the user, a safe and reliable working environment.

The SC2-E series features a multi-piece and autoclavable work tray for a hassle-free cleaning process. This model also has glass side walls that provide a brighter work zone.

Request for Quote Online Product Form

Features

	Sentinel™ Silver Microprocessor Control system Displays basic parameters such as airflow on one screen Has audible and visual alarms
	ULPA Filter 10 x filtration efficiency compared to HEPA filter 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA or >99.999% at MPPS, H14 as per EN 1822 EU

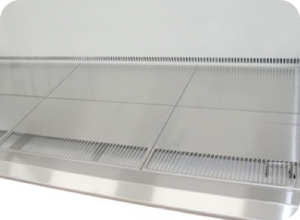

	Cabinet construction Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a "boxed-in" feeling Multi-piece work tray, autoclavable
	Ergonomic features Angled front improves reach and comfort, reduces glare. Frameless, shatterproof sash is easier to clean, offers larger, unobstructed viewing area.
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
2010655	SC2-4E1	Streamline^® Class II, Biological Safety Cabinet - E Series, 4ft/1.2m, 220-240 VAC, 50 Hz
‎2010969	SC2-6E1	Streamline^® Class II, Biological Safety Cabinet - E Series, 6ft/1.8m, 220-240 VAC, 50 Hz
2010890	SC2-4E2	Streamline^® Class II, Biological Safety Cabinet - E Series, 4ft/1.2m, 110-120 VAC, 60 Hz
2010902	SC2-6E2	Streamline^® Class II, Biological Safety Cabinet - E Series, 6ft/1.8m, 110-120 VAC, 60 Hz
2010892	SC2-4E3	Streamline^® Class II, Biological Safety Cabinet - E Series, 4ft/1.2m, 220-240 VAC, 60 Hz
2010904	SC2-6E3	Streamline^® Class II, Biological Safety Cabinet - E Series, 6ft/1.8m, 220-240 VAC, 60 Hz

Accessories

Item Code	Model Code	Description
5170255	UV-30A	UV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
5170026	CU-Pipe	Copper Piping for Service Fixture - Must be Factory Installed
Support Stands
5130152	SPC-4A0 Gen 2	Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5130154	SPC-6A0 Gen 2	Support Stand with Caster Wheels (Height 28”) for 6ft cabinets
5130166	SPC-4B0 Gen 2	Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5130168	SPC-6B0 Gen 2	Support Stand with Caster Wheels (Height 34”) for 6ft cabinets
IV Bars
5170231	IV-1215	IV Bar 1215mm
5170501	IV-1825	IV Bar 1825mm
Pre-Filters
5090062	PF-42	Prefilter, 1200x125x6mm, AC2-4ft
5090064	PF-44	Prefilter, 1810x125x6mm, AC2-6ft
