Class II Biological Safety Cabinet

ProductsBiological Safety CabinetClass II BSC › Streamline® Class II BSC - S Series

Streamline® Class II BSC- S Series

SC2-_S_

Streamline® Class II BSC - S Series

Esco Streamline® Class II Biological Safety Cabinets (SC2) provide optimum performance which is continuously monitored and controlled by the user-friendly Sentinel™ Silver control system, giving the user, a safe and reliable working environment.

The SC2-S series has a single-piece, spill-retaining worktray and a stainless steel sidewall with coved corners for cleanability.

Features

Sentinel™ Silver Microprocessor Control system

  • Displays basic parameters such as airflow on one screen
  • Has audible and visual alarms

ULPA Filter

  • 10 x filtration efficiency compared to HEPA filter
  • 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA or >99.999% at MPPS, H14 as per EN 1822 EU

Cabinet construction

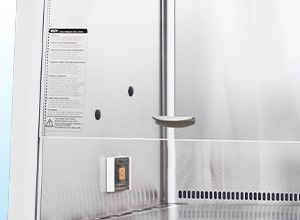

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean

Ergonomic features

  • Angled front improves reach and comfort, reduces glare.
  • Frameless, shatterproof sash is easier to clean, offers larger, unobstructed viewing area.

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
SC2-S
2010930SC2-4S1Streamline® Class II, Biological Safety Cabinet - S Series, 4ft/1.2m, 220-240 VAC, 50 Hz
2010906SC2-6S1Streamline® Class II, Biological Safety Cabinet - S Series, 6ft/1.8m, 220-240 VAC, 50 Hz
2010896SC2-4S2Streamline® Class II, Biological Safety Cabinet - S Series, 4ft/1.2m, 110-120 VAC, 60 Hz
2010908SC2-6S2Streamline® Class II, Biological Safety Cabinet - S Series, 6ft/1.8m, 110-120 VAC, 60 Hz
2010898SC2-4S3Streamline® Class II, Biological Safety Cabinet - S Series, 4ft/1.2m, 220-240 VAC, 60 Hz
2010910SC2-6S3Streamline® Class II, Biological Safety Cabinet - S Series, 6ft/1.8m, 220-240 VAC, 60 Hz

Accessories

Item CodeModel CodeDescription
5170255UV-30AUV Lamp for 4ft, 5ft, 6ft Cabinets except AC3-4B
Service Fixtures
5170410SF-1G20European Style Service Fixture with 20mm Thread Length - Gas
5170457SF-1V20European Style Service Fixture with 20mm Thread Length - Vacuum
5170503SF-1N20European Style Service Fixture with 20mm Thread Length - Nitrogen
5170502SF-1A20European Style Service Fixture with 20mm Thread Length - Air
5170458SF-1W20European Style Service Fixture with 20mm Thread Length - Water
5170504SF-2U22American Style Service Fixture with 22mm Thread Length - Universal
5170026CU-PipeCopper Piping for Service Fixture - Must be Factory Installed
Support Stands
5130152SPC-4A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5130154SPC-6A0 Gen 2Support Stand with Caster Wheels (Height 28”) for 6ft cabinets
5130166SPC-4B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5130168SPC-6B0 Gen 2Support Stand with Caster Wheels (Height 34”) for 6ft cabinets
IV Bars
5170231IV-1215IV Bar 1215mm
5170501IV-1825IV Bar 1825mm
Pre-Filters
5090062PF-42Prefilter, 1200x125x6mm, AC2-4ft
5090064PF-44Prefilter, 1810x125x6mm, AC2-6ft

Catalogs and Brochures

Esco Class II BSC Tri-fold brochure

Streamline® Class II BSC Brochure

Guide to Biosafety and Biological Safety Cabinets

Streamline® Class II BSC German Brochure
