Ductless Fume Hood

ProductsDuctless Fume Hood › Ascent™ Max – F Series

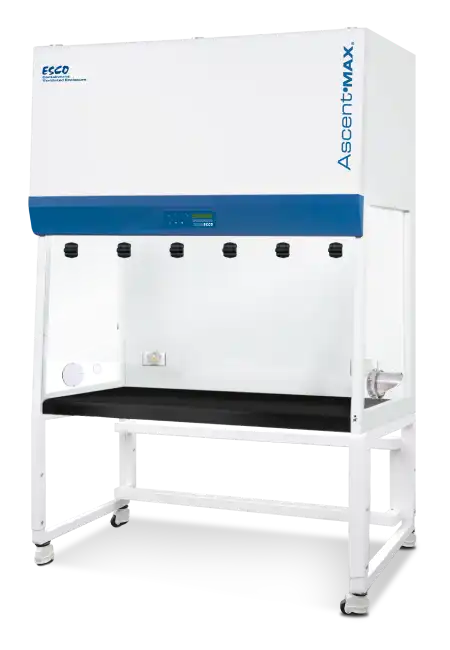

Ascent™ Max – F Series

ADC- _F_

Ascent™ Max – F Series

Esco Ascent™ Max (ADC) Pharmaceutical Containment Ventilated Enclosure is meticulously crafted to deliver essential containment features crucial for pharmacies handling non-sterile hazardous drugs. Equipped with a transparent side wall offers ergonomic visual access, enhancing visibility while maintaining impeccable containment standards. Engineered with a double HEPA filter for optimal room recirculation and the flexibility to connect to an external exhaust, it offers unparalleled protection for both users and the environment, ensuring safety and efficiency at every step of the compounding process.

The ADC-F series is equipped with a double HEPA filter. This unit is suitable for cleanroom applications and for handling chemicals in powdered/solid form.

Features

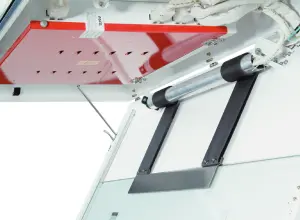

Robust Hood Construction

  • Key components including Fluorescent Lamps, Motor Capacitor, Electrical parts, and Switch Control are mounted outside the airstream and away from contaminated areas to permit easy service.

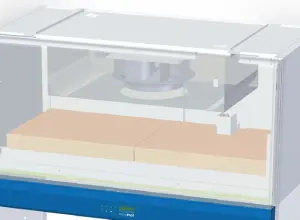

Centrifugal Fan

  • Permanently lubricated fans are energy-efficient with external rotor motor design that reduces operating costs.
  • Extremely low noise and low vibration level

Filtration System

  • Main Filter: HEPA Filter
  • Secondary Filter: HEPA Filter
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

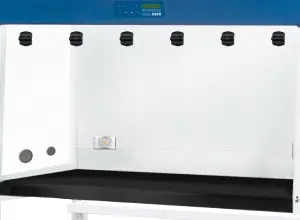

Worktop Options

  • Phenolic resin worktop
  • Optional upgrades: Epoxy or Polypropylene

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code Model Code Description
220-240 VAC, 50 Hz
2040426 ADC-3F1 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 3ft/0.9m
2040427 ADC-4F1 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 4ft/1.2m
2040428 ADC-6F1 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 6ft/1.8m
110-120 VAC, 60 Hz
2040444 ADC-3F2 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 3ft/0.9m
2040442 ADC-4F2 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 4ft/1.2m
2040445 ADC-6F2 Ascent™ Max Pharmaceutical Containment Ventilated Enclosure, 6ft/1.8m

Accessories

Item Code Model Code Description
Support Stand
5131508 STA-3A0-C Support Stand, 3ft
5131390 STA-4A0-C Support Stand, 4ft
5131466 STA-6A0-C Support Stand, 6ft

Catalogs and Brochures

Ascent™ Max – F Series brochure For USA

Ascent™ Max – F Series brochure
