Ductless Fume Hood

ProductsDuctless Fume Hood › Ascent™ Opti Titramax

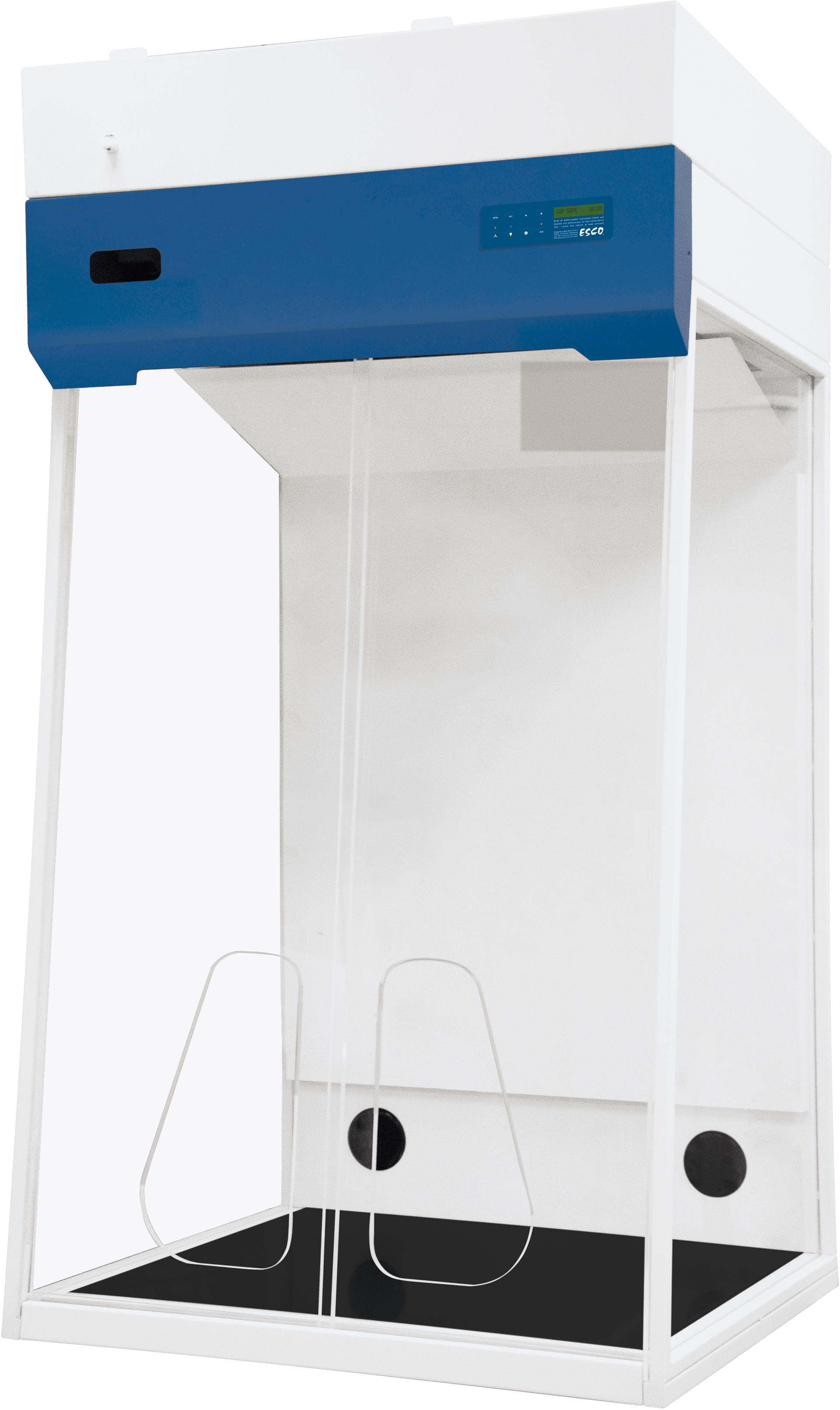

Ascent™ Opti Titramax

SPT

Ascent™ Opti Titramax

Titration analysis is a common laboratory method done to quantitatively identify the unknown concentration of a specific analyte. During this analysis, operators are often exposed to chemical fumes, vapors, and odor.

As an advocate of safety, Esco introduces the Ascent™ Opti Titramax (SPT), a specialized ductless fume hood designed to enclose titration devices such as burettes and auto-titrators while containing toxic vapours. Its ductless design offers customers full mobility and convenience as no complex installation system is required.

Features

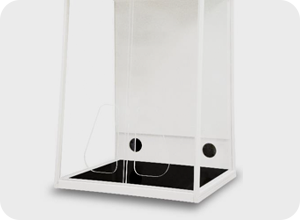

Taller work zone and horizontal sliding sash

  • Provides easy access during loading and setting up of titration equipment inside the enclosure
  • Elongated height to accommodate a typical 50 ml burette, a 500 ml flask and a magnetic stirrer

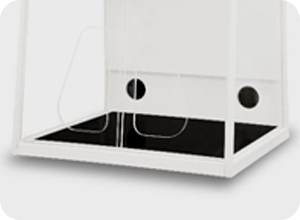

Epoxy worktop

  • Resistant to most acids and bases used in Titration

Filtration System

  • Main Filter: Nanocarb™ Activated carbon, available in 8 types
  • Efficient perimeter clamping ensures no leakage as well as allows easy filter change procedure.

Ergonomic Features

  • Sample Port - For manual determination of filter saturation through color tubes

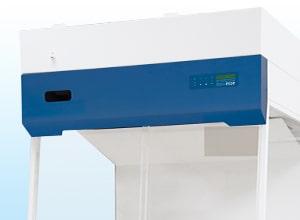

  • Filter ID window - to easily determine the type of carbon filter installed in the unit

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item CodeModel CodeDescription
220-240 VAC, 50 Hz
2040301SPT-3A1Ascent™ Opti Titramax, 3ft/0.9m
2040307SPT-4A1Ascent™ Opti Titramax, 4ft/1.2m
2040304SPT-3B1Ascent™ Opti Titramax with Transparent Back Wall, 3ft/0.9m
2040310SPT-4B1Ascent™ Opti Titramax with Transparent Back Wall, 4ft/1.2m
110-120 VAC, 60 Hz
2040302SPT-3A2Ascent™ Opti Titramax, 3ft/0.9m
2040308SPT-4A2Ascent™ Opti Titramax, 4ft/1.2m
2040305SPT-3B2Ascent™ Opti Titramax with Transparent Back Wall, 3ft/0.9m
2040311SPT-4B2Ascent™ Opti Titramax with Transparent Back Wall, 4ft/1.2m
220-240 VAC, 60 Hz
2040303SPT-3A3Ascent™ Opti Titramax, 3ft/0.9m
2040309SPT-4A3Ascent™ Opti Titramax, 4ft/1.2m
2040306SPT-3B3Ascent™ Opti Titramax with Transparent Back Wall, 3ft/0.9m
2040312SPT-4B3Ascent™ Opti Titramax with Transparent Back Wall, 4ft/1.2m

Accessories

Item CodeModel CodeDescription
Main Carbon Filters for SPT, 3 ft models
5080013CFA-6Code A Standard Filter - 745mm x 460mm x 65mm
5080022CFB-6Code B Acid Filter - 745mm x 460mm x 65mm
5080033CFC-6Code C Mercury Filter - 745mm x 460mm x 65mm
5080044CFD-6Code D Sulphur Filter - 745mm x 460mm x 65mm
5080055CFE-6Code E Halogen Filter - 745mm x 460mm x 65mm
5080066CFF-6Code F Aldehyde Filter - 745mm x 460mm x 65mm
5080077CFG-6Code G Ammonia/Amines Filter - 745mm x 460mm x 65mm
5080111CFH-6Code H Chloroform/Ethers Filter - 745mm x 460mm x 65mm
Main Carbon Filters for SPT, 4 ft models
5080012CFA-4Code A Standard Filter - 440mm x 460mm x 65mm
5080021CFB-4Code B Acid Filter - 440mm x 460mm x 65mm
5080032CFC-4Code C Mercury Filter - 440mm x 460mm x 65mm
5080043CFD-4Code D Sulphur Filter - 440mm x 460mm x 65mm
5080054CFE-4Code E Halogen Filter - 440mm x 460mm x 65mm
5080065CFF-4Code F Aldehyde Filter - 440mm x 460mm x 65mm
5080076CFG-4Code G Ammonia/Amines Filter - 440mm x 460mm x 65mm
5080110CFH-4Code H Chloroform/Ethers Filter - 440mm x 460mm x 65mm
Mobile Base Cabinet for SPT
5131559MBT-3A0Mobile Base cabinet for SPT, 3ft
5131560MBT-4A0Mobile Base cabinet for SPT, 4ft

Catalogs and Brochures

Esco Ductless Fume Hood Tri-fold Brochure

Ascent™ Opti Titramax Sellsheet

Guide to Esco Nanocarb™ Carbon Filters
