Laboratory Refrigerator

› Products › Laboratory Refrigerator › Esco Laboratory Refrigerator

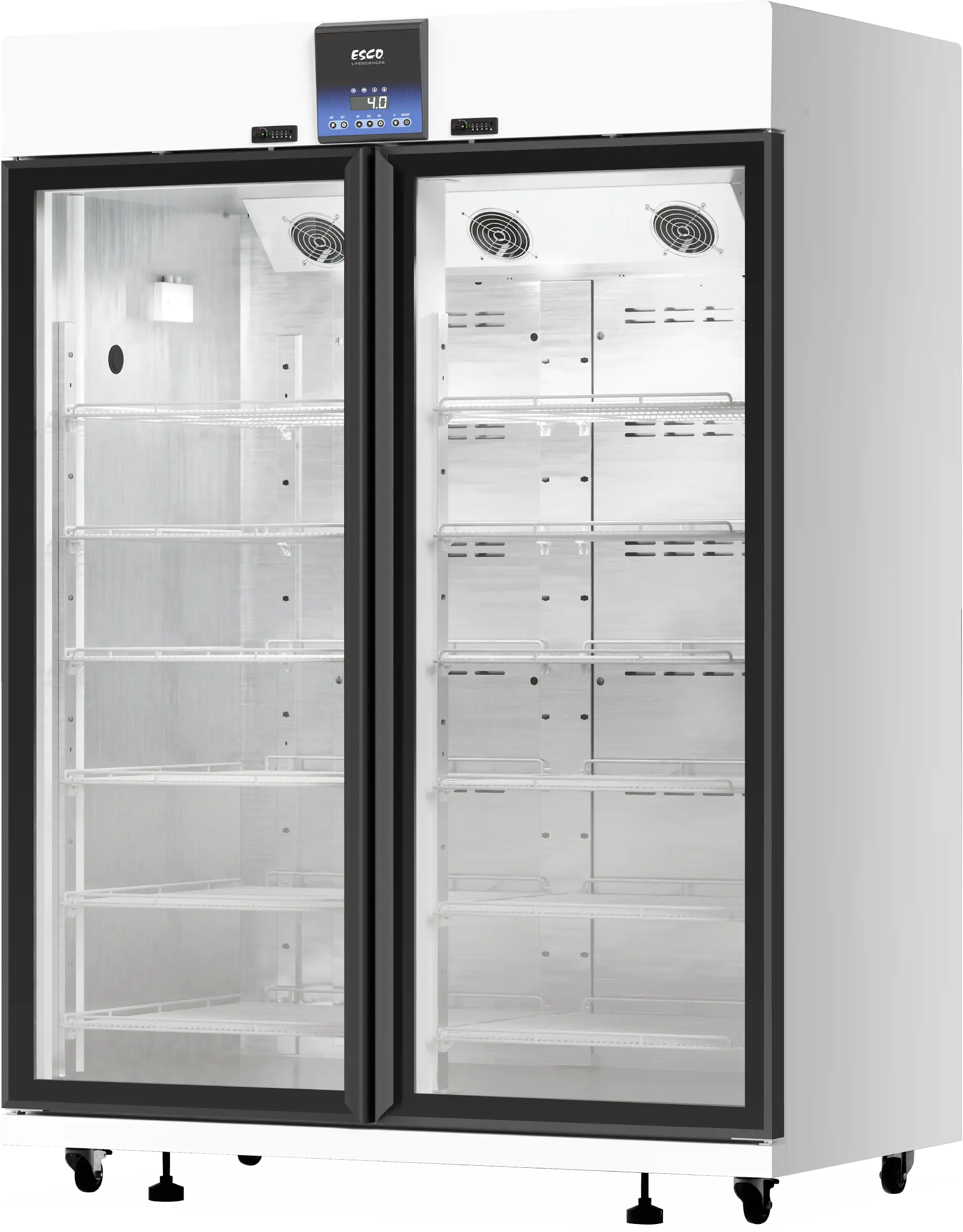

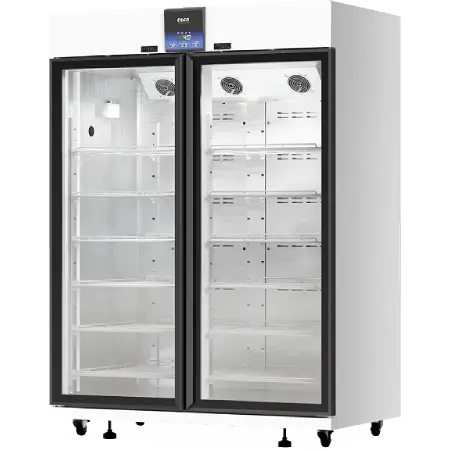

Esco Lab Refrigerator Full

LR-1380S-8

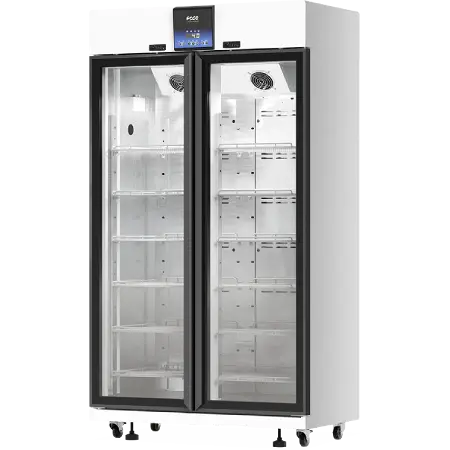

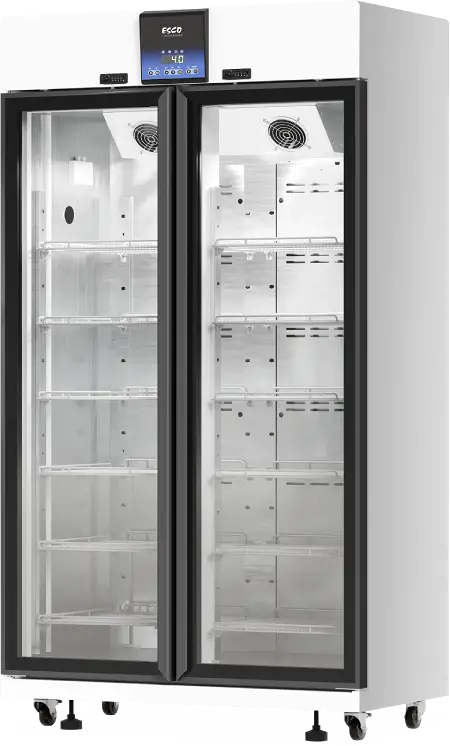

Esco Lab Refrigerator Full

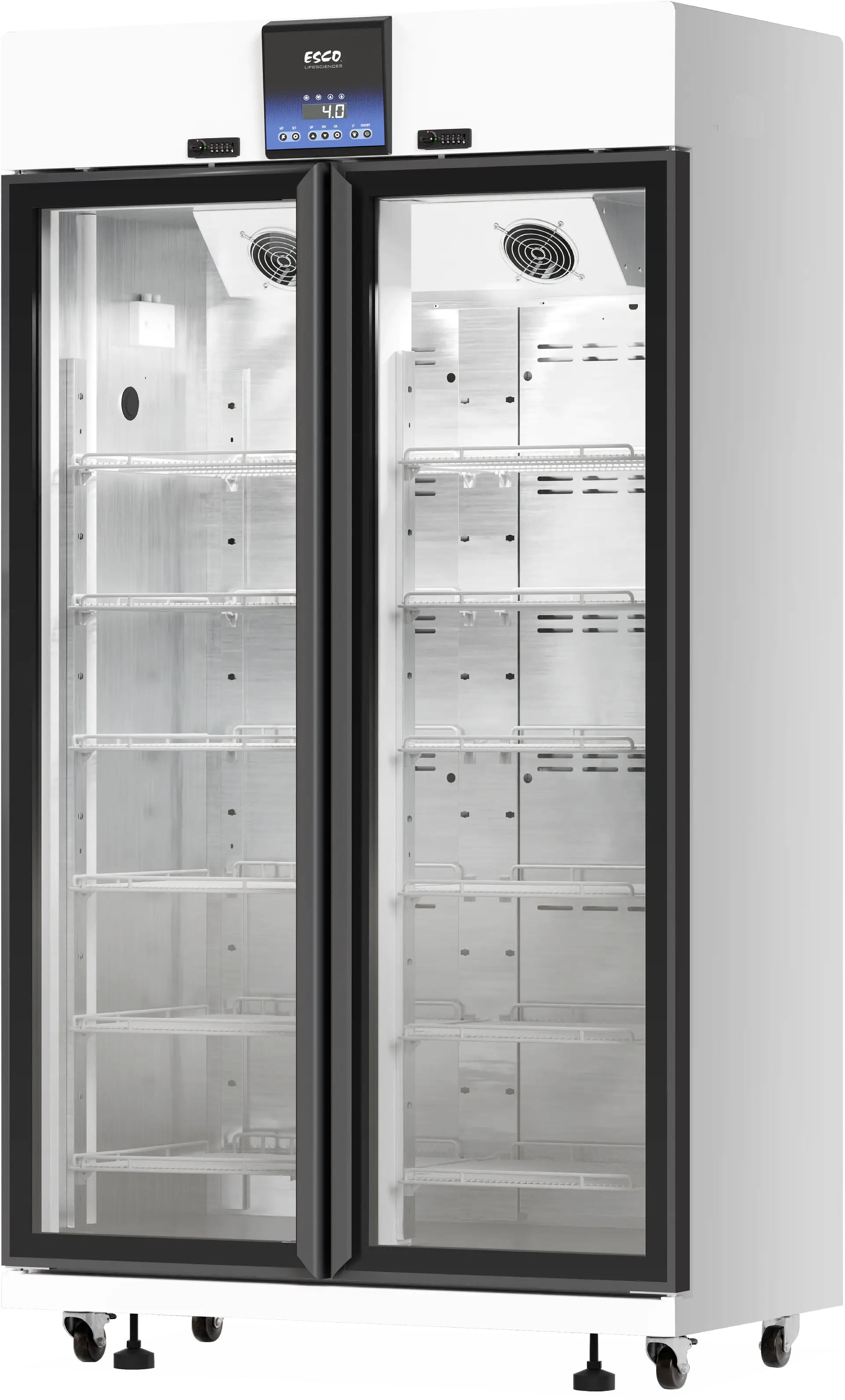

LR-660S-8

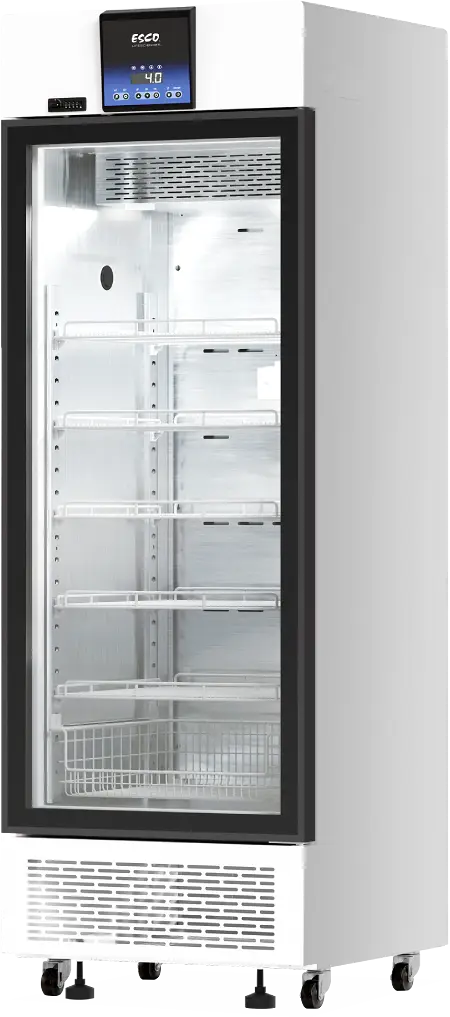

Esco Lab Refrigerator Full

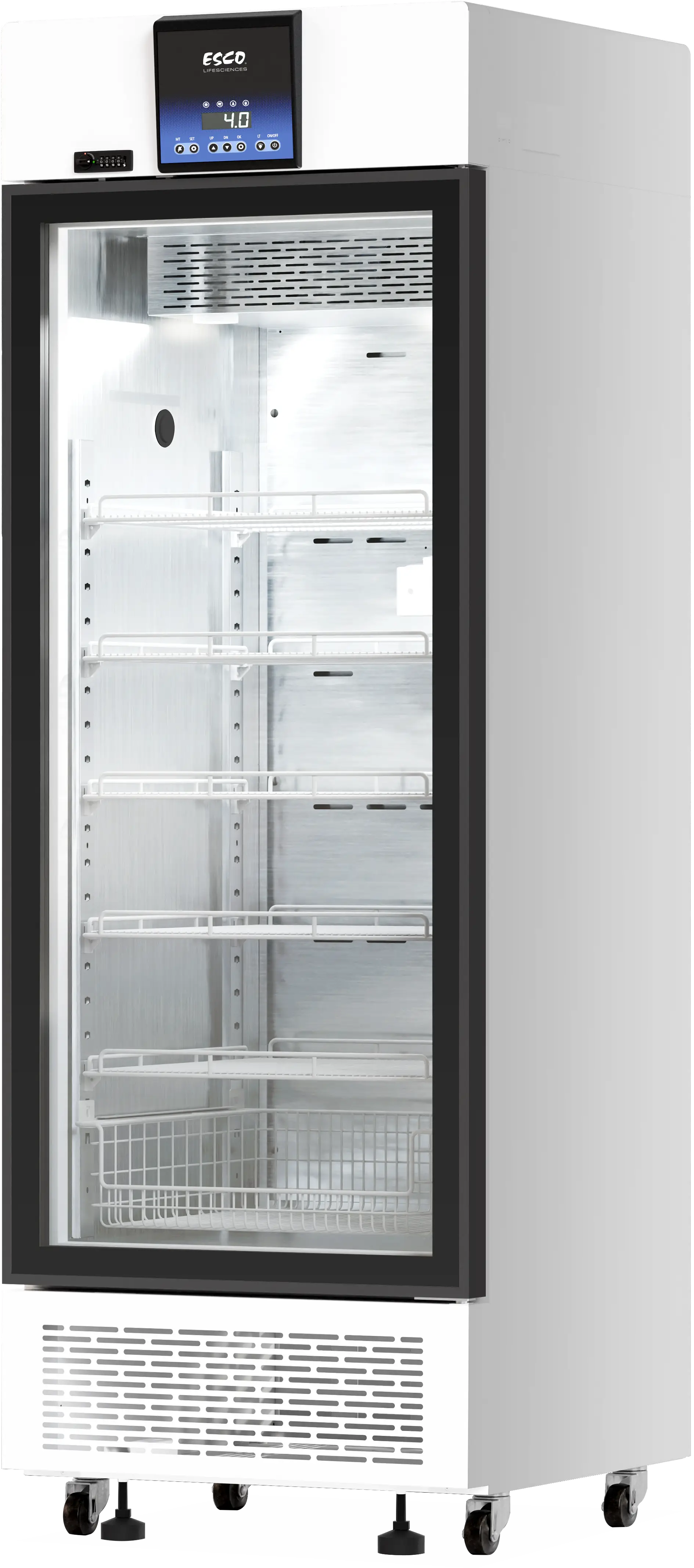

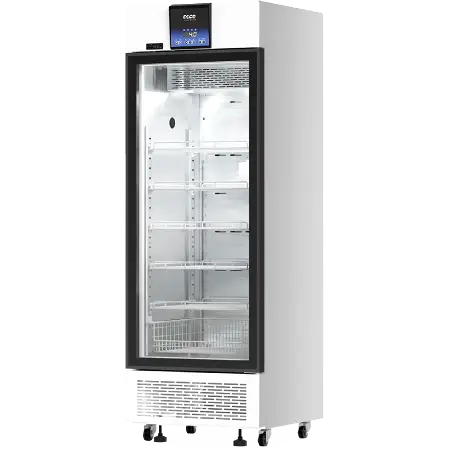

LR-400S-8

Esco Laboratory Refrigerator

Esco Laboratory Refrigerators are designed to deliver ultimate protection for your valuable experimental samples. With easy-to-use controls, stable performance, and energy-efficient operation, these refrigerators are perfect for scientific research, healthcare, and biopharmaceutical industries. The temperature range from +2°C to +15°C ensures optimal conditions for storing temperature-sensitive biological and medical samples.

Request for Quote

Features

LR Chamber Stills

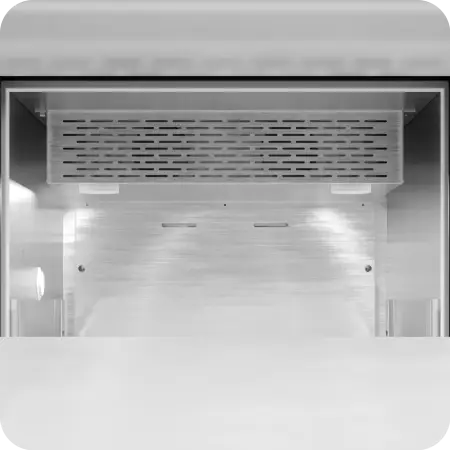

Precise Temperature Control for Sample Protection

  • Air cooling system maintains stable, uniform temperatures.
  • Upgraded evaporator prevents ice build-up for consistent performance.

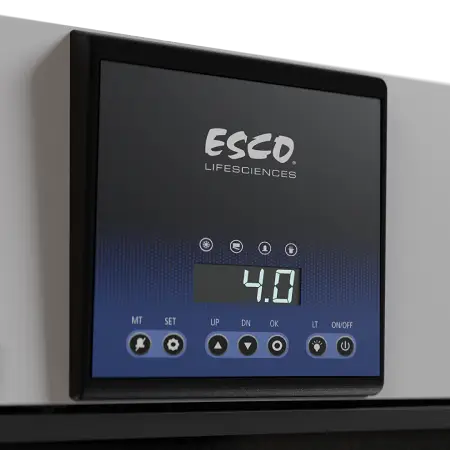

LR HUD Stills

Easy Operation, Clear, and Intuitive

  • Universal, user-friendly interface for all users.
  • Microcomputer system for precise, hands-free temperature control.

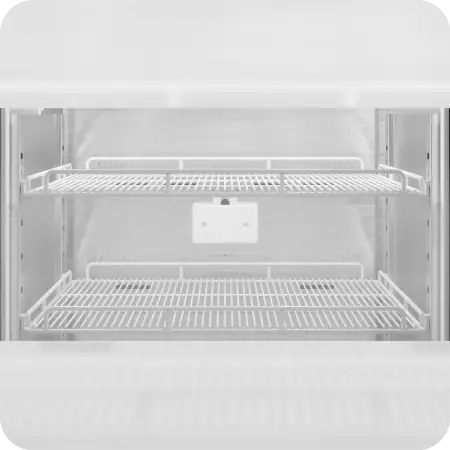

crafted-design-for-flexible-storage

Crafted Design for Flexible Storage

  • Six adjustable shelves for customizable storage.
  • Smooth interior for easy cleaning.
  • Double-glazed doors for stable, energy-efficient insulation.

Multi-layered Safeguard Mechanisms

  • Real-time alarms for complete monitoring.
  • Backup battery ensures protection during power outages
  • Built-in data recording for traceable temperature tracking.

Eco and User-Friendly Operation

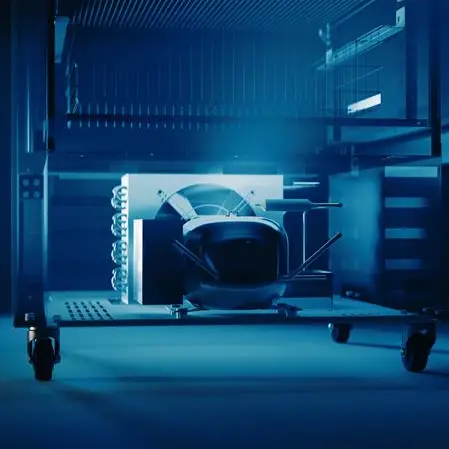

  • CFC-free, variable frequency technology is eco-friendly efficiency.
  • Smooth casters for easy movement
  • Smooth casters for easy movement. Quiet operation for a focused lab environment.

Models

Item Code Model Description
2229990 LR-400S-8 Esco Lab Refrigerator, 400L, 220 – 230 VAV 50/60 Hz
2229989 LR-660S-8 Esco Lab Refrigerator, 660L, 220 – 230 VAV 50/60 Hz
2229988 LR-1380S-8 Esco Lab Refrigerator, 1380L, 220 – 230 VAV 50/60 Hz

Accessories

Item Code Model Code Description

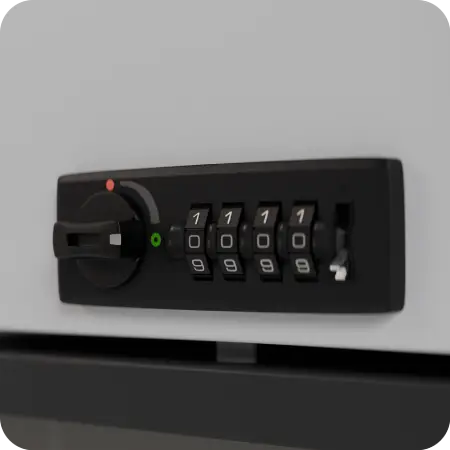

1120474 Combination Lock Mechanical combination lock, horizontal type, right-hand door
1049905 400 Door Seal Door seal for LR-400S-8
1049904 600 Door Seal Door seal for LR-660S-8
1049903 1380 Door Seal Door seal for LR-1380S-8
1129818 Caster 2.5-inch flat-top swivel caster
1129819 Caster with Brake 2.5-inch flat-top caster with brake
1239916 Refrigerant R290 refrigerant, 41 kg per bottle
1119999 660 & 400 Compressor Inverter compressor for LR-400S-8 and LR-660S-8
1119995 1380 Compressor Inverter compressor for LR-1380S-8
1119991 400 Condenser Fan Assembly Condenser fan, 240V, 50/60Hz, 28W, 1150 RPM, with 200mm fan blades and a protective grille for LR-400S-8
1089816 660 & 1380 Condenser Fan Condenser fan for LR-660S-8 and LR-1380S-8
1119992 400 Evaporator Fan Evaporator fan, adjustable speed, 4000 RPM for LR-400S-8
1089852 660 & 1380 Evaporator Fan Evaporator fan for LR-660S-8 and LR-1380S-8
1089885 400 Lighting Assembly Lightning assembly, 12V/3W, aluminum alloy housing, center cable outlet, moisture-proof, 5700K color cool white light (set) for LR-400S-8
1089859 660 & 1380 Lighting Assembly Lightning assembly, LED light strip (set) for LR-660S-8 and LR-1380S-8
1089819 Refrigerator Battery Backup battery, 7Ah (with adapter cable)
1089883 Controller Display Board Controller display board, 2-layer PCB, green, lead-free, dimensions 94 x 40 x 1.6 mm
1089825 Keypad Membrane Refrigerator thin-film keypad overlay
1089877 Mainboard Mainboard, 4-layer PCB, green, lead-free, dimensions 180 x 160 x 1.6 mm
1089827 Power Supply AC/DC Converter 24V
1059996 400 Shelf Shelf for LR-400S-8
1059978 660 Left Shelf Left shelf for LR-660S-8
1059977 660 Right Shelf Right shelf for LR-660S-8
1059976 1380 Left Shelf Left shelf for LR-1380S-8
1059975 1380 Right Shelf Right shelf for LR-1380S-8
1059995 400 Basket Bottom basket for LR-400S-8
1049957 Shelf Support Plastic shelf support, white
1089872 Temperature Probe NTC sensor 10K 1% 3950-3000, stainless steel housing, 150mm wire, XH-2.54 terminal
1089873 Door Heating Transformer Door heating transformer, input 220V 50/60Hz, output AC 24V/90W
1089983 400 Condenser Condenser with OD7.0 copper tube and t0.18 aluminum fins for LR-400S-8
1089902 600 Condenser Condenser with OD6.0 copper tube and t0.18 aluminum fins for LR-660S-8
1089904 1380 Condenser Condenser with OD6.0 copper tube and t0.18 aluminum fins for LR-1380S-8
1089982 400 Evaporator Evaporator with OD9.52 copper tube and t0.2 aluminum fins for LR-400S-8
1089903 600 Evaporator Evaporator OD9.52 copper tube and t0.2 aluminum fins for LR-660S-8
1089905 1380 Evaporator Evaporator OD9.52 copper tube and t0.2 aluminum fins for LR-1380S-8
1049910 Glycerin Bottle Glycerin bottle containing 10% glycerin
1039990 Left Insulated Glass Door Assembly-660 Left insulated glass door for LR-660S-8
1039988 1380 Left Door Left insulated glass door for LR-1380S-8
1039991 Right Insulated Glass Door Assembly-660 Right insulated glass door for LR-660S-8
1039989 1380 Right Door Right insulated glass door for LR-1380S-8
1039997 Insulated Glass Door Assembly-400 Glass door for LR-400S-8
1089822 Printer Needle printer, white, RS232 communication interface
