HP Series Lab Freezer

Laboratory professionals invest time, money, and hard-work on irreplaceable samples. Once proper storage requirements are not met, these precious samples may be put at risk and eventually lead to sample spoilage and wastage. That is why it is important to carefully choose the cold storage that can assure optimal product protection.

Esco HP Series laboratory freezers are designed for laboratory use offering superior product protection with long-term reliability and exceptional product quality. When superior levels of cold storage performance is needed, the Esco HP series lab freezer is the best choice. Temperature range: HF2 model -10°C to -25°C and HF3 model -25°C to -40°C.

Laboratory freezers are for storage and preservation of non-volatile products such as:

Biological Samples
Culture Media
Non-flammables
Pharmaceuticals
Pure Cultures
Reagents
Vaccines

Request for Quote Online Product Form

Features

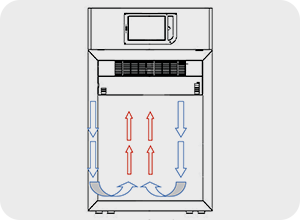

	Forced-Air Design: Superior forced air design instead of regular cold wall Rapid cool-down and fast temperature recovery Uniform temperature
	Intelligent Automatic Defrost Detects ice formation Defrosts only when needed to keep units at optimum performance Keeps chamber temperature within safe limits
	Energy Saving Low power consumption LED lights *for HF2 models only
	High-Quality Construction Stainless steel interior Electrogalvanized steel exterior Rounded corners for optimum cleanability Ergonomic fitted door handle
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Controllers

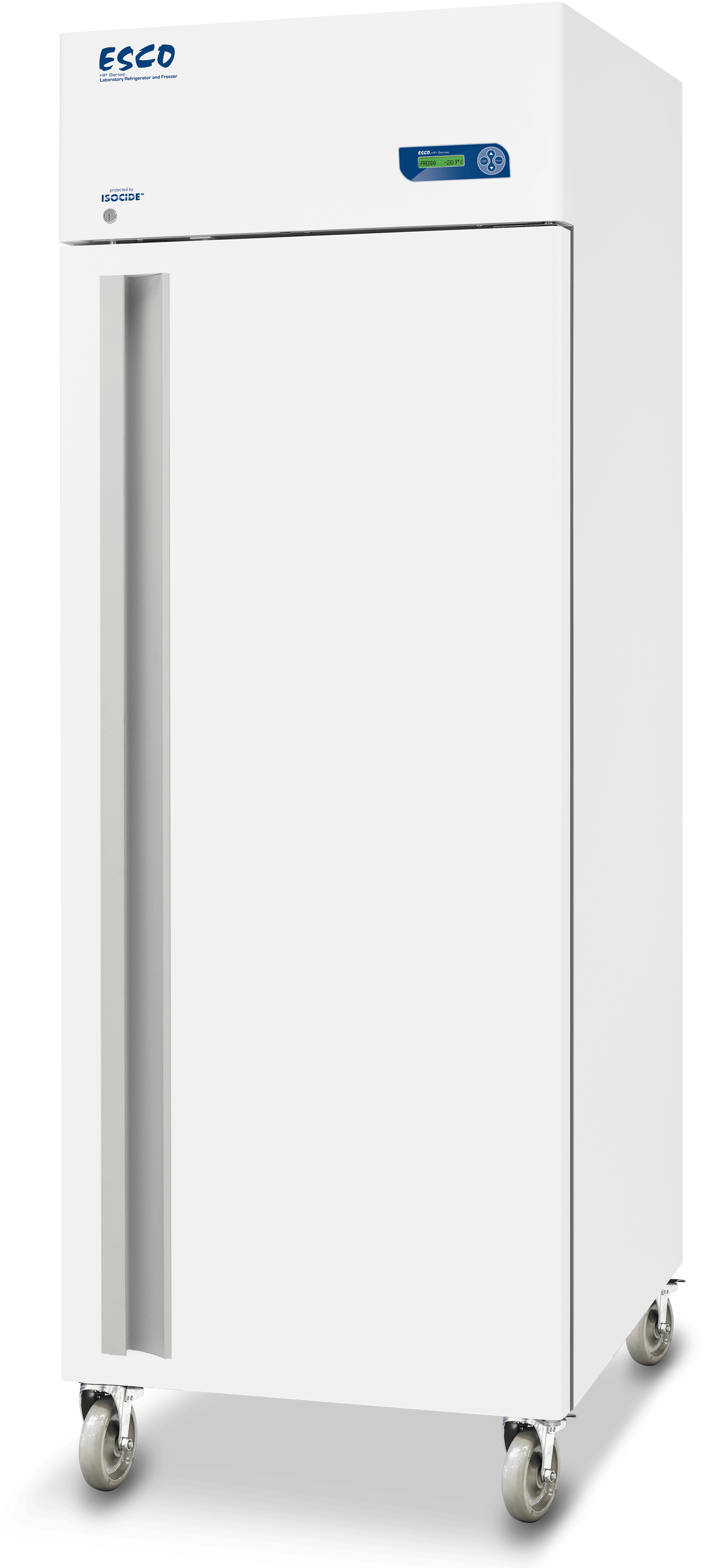

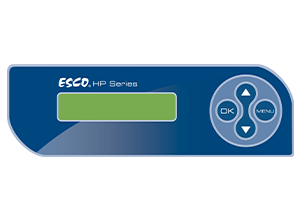

Standard Controller

microprocessor controller
alphanumeric display for temperature, date, alarms, and etc.
temperature set points, alarms, and various other settings.
audible and visual alarms for high/low temperature, door open, and power failure

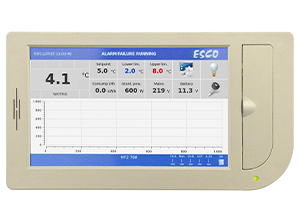

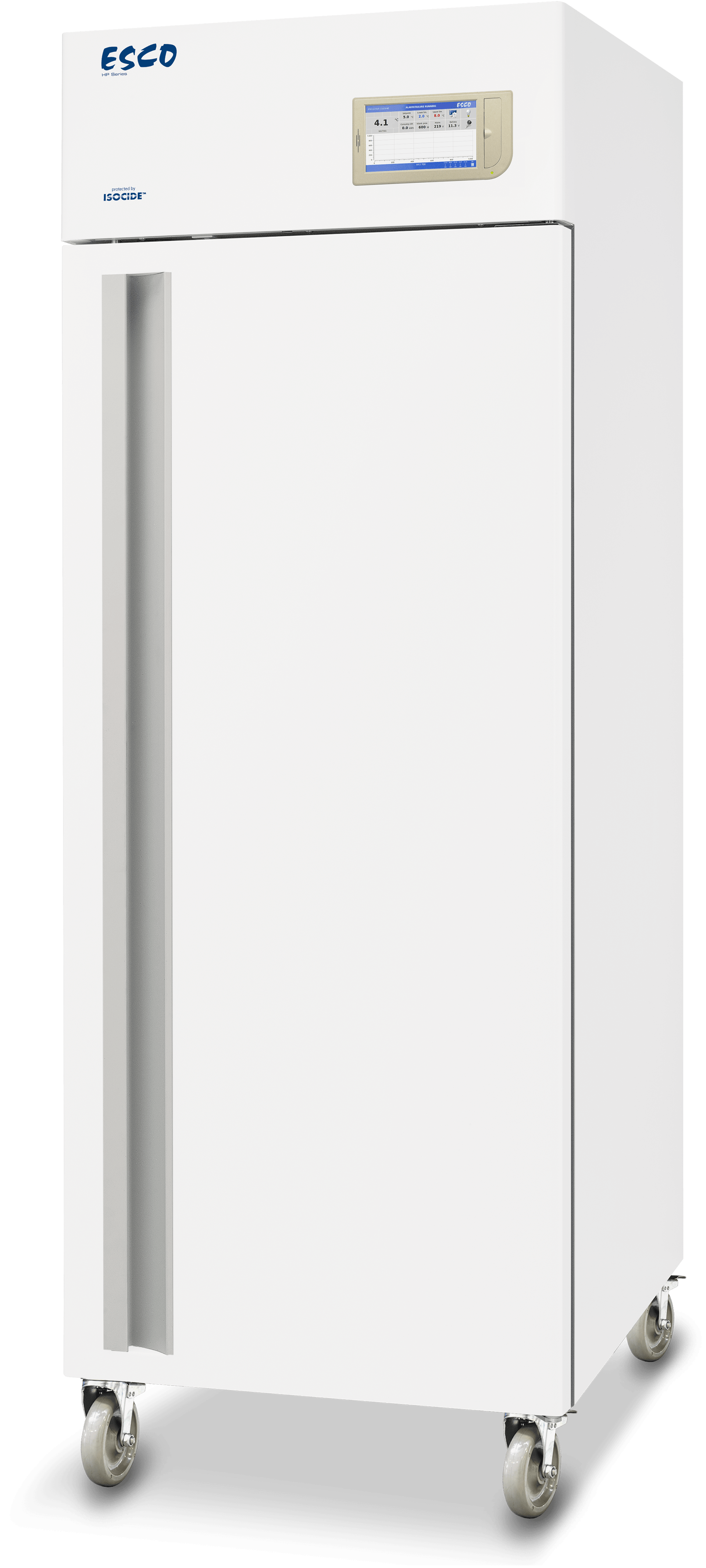

Touchscreen Controller

live temperature graph
audible and visual alarms for high/low temperature, door open, and power failure
SD Card and USB slot for data download

	Standard Controller	Touchscreen Controller
Keypad buttons, backlit LCD display	✓
Touchscreen interface		✓
Microprocessor	✓	✓
Visual and audible alarms	✓	✓
Remote alarm output	✓	✓
Digital temperature display	✓	✓
Temperature live graph		✓
GSM, ethernet connection		✓
USB and SD card slot for data download		✓
Key lock	✓
Electronic door lock		✓

Models

Item Code	Model Code	Description

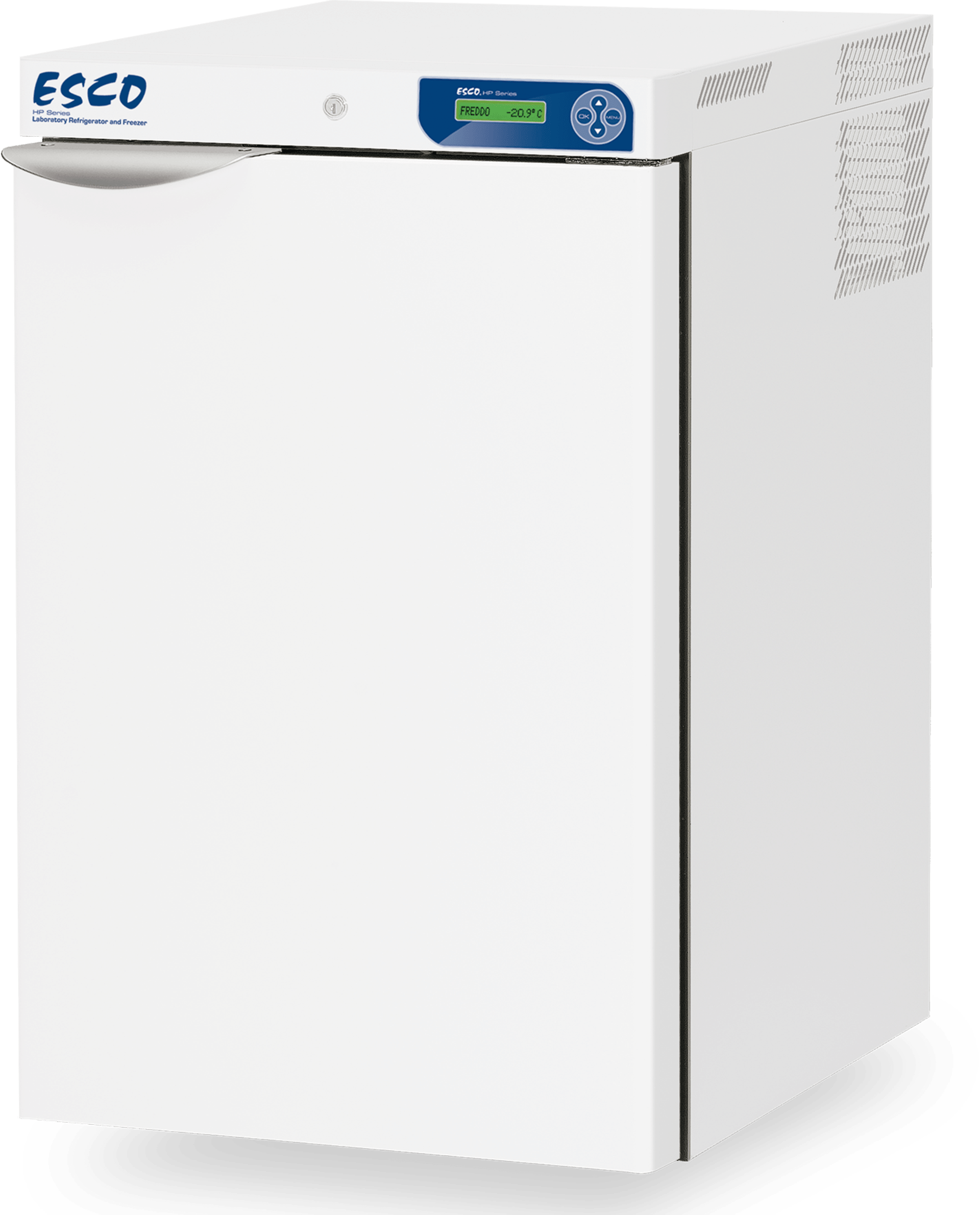

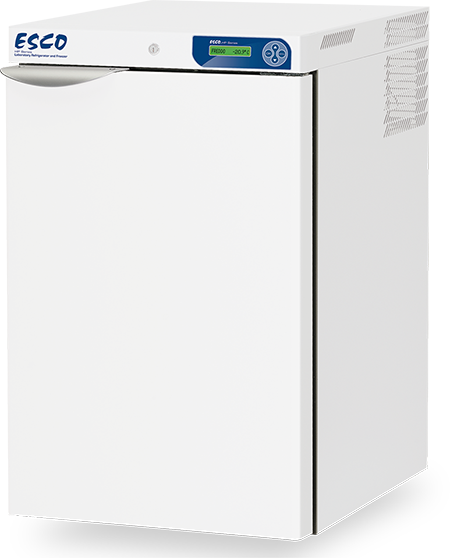

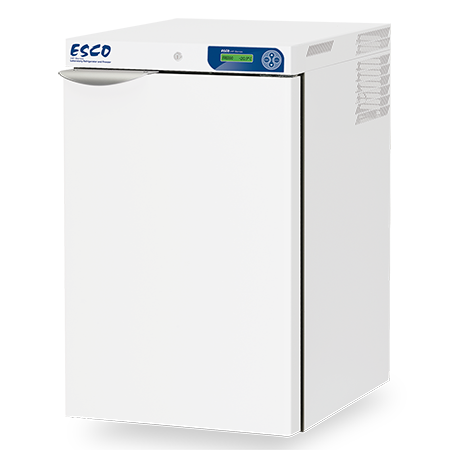

2130005	HF2-140S-1	Undercounter model, 128 L, -10°C to -20°C Standard Controller 220-240 VAC, 50 Hz
2130033	HF2-140S-2	Undercounter model, 128 L, -10°C to -20°C Standard Controller 110-120 VAC, 50/60 Hz
2130032	HF2-140S-3	Undercounter model, 128 L, -10°C to -20°C Standard Controller 220-240 VAC, 60 Hz
2130109	HF2-140T-1	Undercounter model, 128 L, -10°C to -20°C Touchscreen Controller 220-240 VAC, 50 Hz
Available upon request	HF2-140T-2	Undercounter model, 128 L, -10°C to -20°C Touchscreen Controller 110-120 VAC, 50/60 Hz
Available upon request	HF2-140T-3	Undercounter model, 128 L, -10°C to -20°C Touchscreen Controller 220-240 VAC, 60 Hz
2130006	HF2-400S-1	Upright model, 347 L, -10°C to -25°C Standard Controller 220-240 VAC, 50 Hz
2130035	HF2-400S-2	Upright model, 347 L, -10°C to -25°C Standard Controller 110-120 VAC, 50/60 Hz
2130034	HF2-400S-3	Upright model, 347 L, -10°C to -25°C Standard Controller 220-240 VAC, 60 Hz
2130016	HF2-400T-1	Upright model, 347 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 50 Hz
2130037	HF2-400T-2	Upright model, 347 L, -10°C to -25°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130036	HF2-400T-3	Upright model, 347 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 60 Hz
2130007	HF2-700S-1	Upright model, 620 L, -10°C to -25°C Standard Controller 220-240 VAC, 50 Hz
2130039	HF2-700S-2	Upright model, 620 L, -10°C to -25°C Standard Controller 110-120 VAC, 50/60 Hz
2130038	HF2-700S-3	Upright model, 620 L, -10°C to -25°C Standard Controller 220-240 VAC, 60 Hz
2130017	HF2-700T-1	Upright model, 620 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 50 Hz
2130041	HF2-700T-2	Upright model, 620 L, -10°C to -25°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130040	HF2-700T-3	Upright model, 620 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 60 Hz

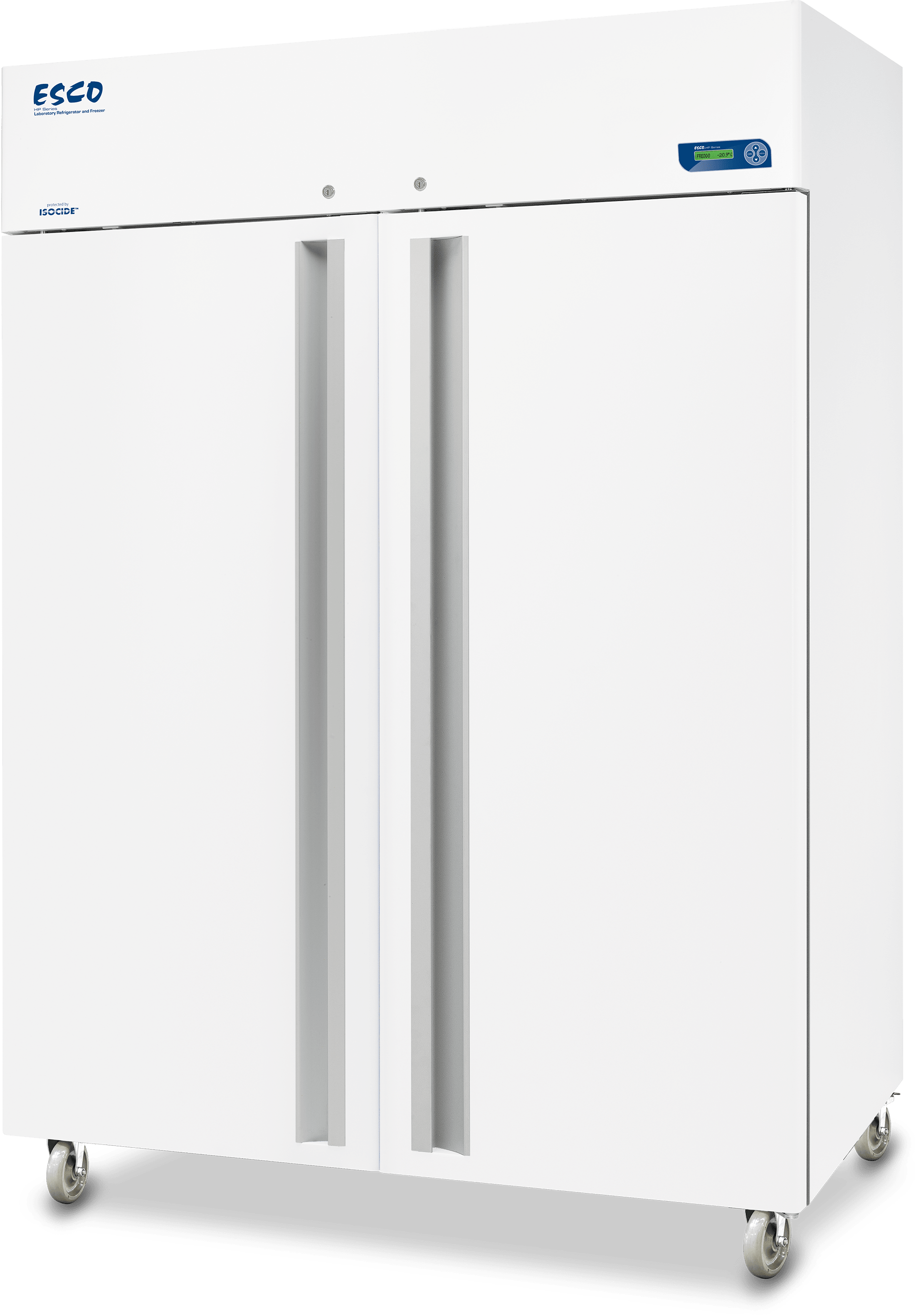

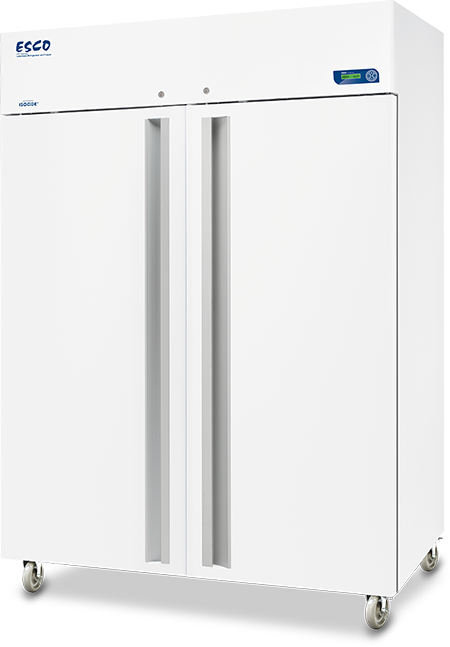

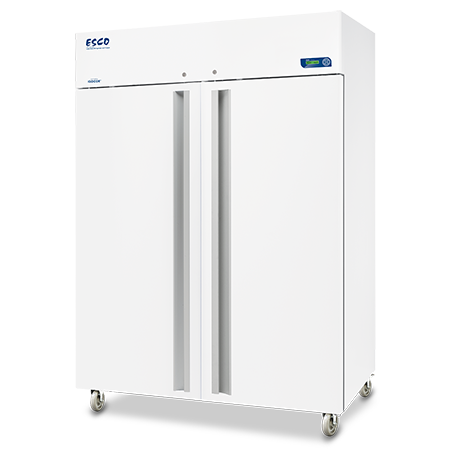

2130008	HF2-1500S-1	Upright model, 1355 L, -10°C to -25°C Standard Controller 220-240 VAC, 50 Hz
2130043	HF2-1500S-2	Upright model, 1355 L, -10°C to -25°C Standard Controller 110-120 VAC, 50/60 Hz
2130042	HF2-1500S-3	Upright model, 1355 L, -10°C to -25°C Standard Controller 220-240 VAC, 60 Hz

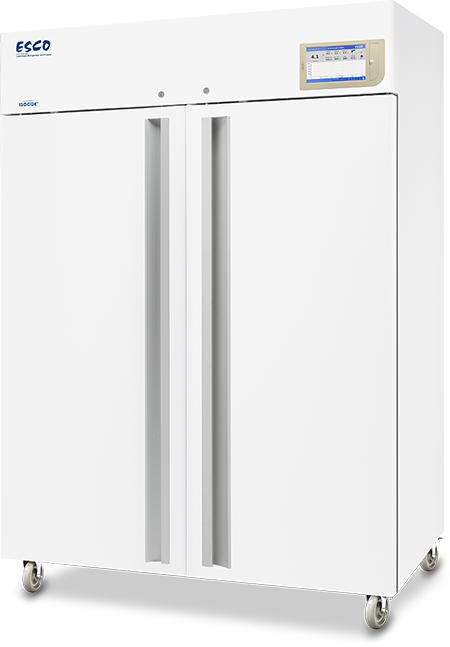

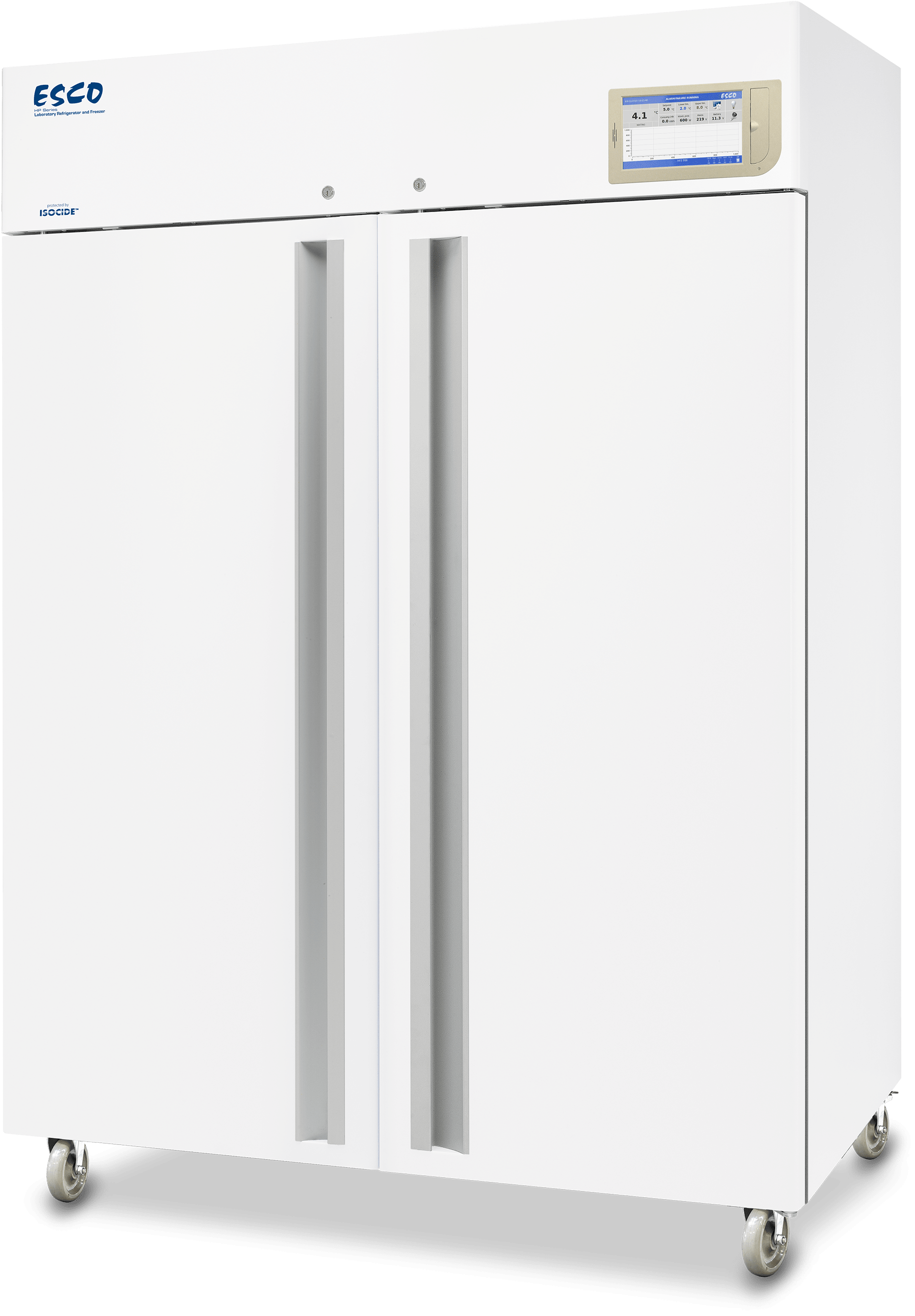

2130018	HF2-1500T-1	Upright model, 1355 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 50 Hz
2130045	HF2-1500T-2	Upright model, 1355 L, -10°C to -25°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130044	HF2-1500T-3	Upright model, 1355 L, -10°C to -25°C Touchscreen Controller 220-240 VAC, 60 Hz
2130009	HF3-400S-1	Upright model, 360 L, -20°C to -40°C Standard Controller 220-240 VAC, 50 Hz
2130047	HF3-400S-2	Upright model, 360 L, -20°C to -40°C Standard Controller 110-120 VAC, 50/60 Hz
2130046	HF3-400S-3	Upright model, 360 L, -20°C to -40°C Standard Controller 220-240 VAC, 60 Hz
2130019	HF3-400T-1	Upright model, 360 L, -20°C to -40°C Touchscreen Controller 220-240 VAC, 50 Hz
2130049	HF3-400T-2	Upright model, 360 L, -20°C to -40°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130048	HF3-400T-3	Upright model, 360 L, -20°C to -40°C Touchscreen Controller 220-240 VAC, 60 Hz
2130010	HF3-700S-1	Upright model, 544 L, -20°C to -40°C Standard Controller 220-240 VAC, 50 Hz
2130051	HF3-700S-2	Upright model, 544 L, -20°C to -40°C Standard Controller 110-120 VAC, 50/60 Hz
2130050	HF3-700S-3	Upright model, 544 L, -20°C to -40°C Standard Controller 220-240 VAC, 60 Hz
2130020	HF3-700T-1	Upright model, 544 L, -20°C to -40°C Touchscreen Controller 220-240 VAC, 50 Hz
2130053	HF3-700T-2	Upright model, 544 L, -20°C to -40°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130052	HF3-700T-3	Upright model, 544 L, -20°C to -40°C Touchscreen Controller 220-240 VAC, 60 Hz

;

Accessories

Item Code	Model Code	Description
1330063	SK1	Shelf Kits for HF2-140 (Standard and Touchscreen models)
1330064	SK2	Shelf Kits for HF2-400 (Standard and Touchscreen models)
1330065	SK3	Shelf Kits for HF2-700, HF2-1500, HF3-700 (Standard and Touchscreen models)
1330066	SK4	Shelf Kits for HF3-400 (Standard and Touchscreen models)
1330067	DK1	Drawer Kits for HF2-140 (Standard and Touchscreen models)
1330068	DK2	Drawer Kits for HF2-400 (Standard and Touchscreen models)
1330069	DK3	Drawer Kits for HF2-700, HF2-1500 (Standard and Touchscreen models)
1330070	DK4	Drawer Kits for HF3-400 (Standard and Touchscreen models)
1330071	DK5	Drawer Kits for HF3-700 (Standard and Touchscreen models)
1330072	DM1	Backup battery + Digital Monitor + PT100 probe for temperature monitoring and recording during power failure. (Single Chamber, Touchscreen Models)
5171092	AP15	15 mm Access Port with inner and outer wall cover (Standard and Touchscreen models)
1330075	AP35	35 mm Access Port with inner and outer wall cover (Standard and Touchscreen models)
1330076	BK1	Stainless Steel Basket Kit for HF2-700, HF2-1500 (Standard and Touchscreen models)
1330127	Backup Battery	Standard backup battery for temperature monitoring during power failure (Standard Models)
1330129	4-20 mA	4-20 mA Output (Touchscreen models)
1330216	GSM	GSM Module (Touchscreen models)
1330185	Chart Recorder	Chart Recorder for all models
9010179	IQOQ	Installation Qualification Operation Qualification for all models
