HP Series Lab Refrigerator

Cold storage equipment plays a very important role in a laboratory professional’s life work. Most of the studies and applications conducted rely on sample storage in maintaining the integrity and quality of their precious samples and other biological products. Protection of your essential and irreplaceable samples is a critical factor for ensuring reliable results.

Esco HP Series lab refrigerators are designed for laboratory use offering superior product protection with long-term reliability and exceptional product quality. When superior levels of cold storage performance is needed, the Esco HP series lab-grade refrigerator is the best choice. The temperature ranges from +2°C to +15°C.

Lab fridge is for storage and preservation of non-volatile products such as:

Biological Samples
Culture Media
Non-flammables
Pharmaceuticals
Pure Cultures
Reagents
Vaccines

Request for Quote

Features

	Forced-Air Design: Superior forced air design instead of regular cold wall Rapid cool-down and fast temperature recovery Uniform temperature
	Intelligent Automatic Defrost Detects ice formation Defrosts only when needed to keep units at optimum performance Keeps chamber temperature within safe limits
	Energy Saving Low power consumption LED lights
	High-Quality Construction Stainless steel interior Electrogalvanized steel exterior Rounded corners for optimum cleanability Ergonomic fitted door handle Triple-pane glass door
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Controllers

Standard Controller

microprocessor controller
alphanumeric display for temperature, date, alarms, and etc.
temperature set points, alarms, and various other settings.
audible and visual alarms for high/low temperature, door open, and power failure

Touchscreen Controller

live temperature graph
audible and visual alarms for high/low temperature, door open, and power failure
SD Card and USB slot for data download

	Standard Controller	Touchscreen Controller
Keypad buttons, backlit LCD display	✓
Touchscreen interface		✓
Microprocessor	✓	✓
Visual and audible alarms	✓	✓
Remote alarm output	✓	✓
Digital temperature display	✓	✓
Temperature live graph		✓
GSM, ethernet connection		✓
USB and SD card slot for data download		✓
Key lock	✓
Electronic door lock		✓

Models

Item Code	Model Code	Description

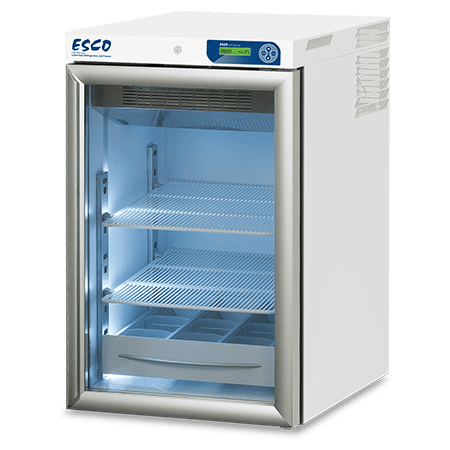

2130175	HR1-140S-1	Undercounter model, 128 L, +2°C to +15°C Standard Controller 220-240 VAC, 50 Hz
2130023	HR1-140S-2	Undercounter model, 128 L, +2°C to +15°C Standard Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-140S-3	Undercounter model, 128 L, +2°C to +15°C Standard Controller 220-240 VAC, 60 Hz
2130001	HR1-140S-8	Undercounter model, 128 L, +2°C to +15°C Standard Controller 220-240 VAC, 50/60 Hz
Available upon request	HR1-140T-1	Undercounter model, 128 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50 Hz
Available upon request	HR1-140T-2	Undercounter model, 128 L, +2°C to +15°C Touchscreen Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-140T-3	Undercounter model, 128 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 60 Hz
2130172	HR1-140T-8	Undercounter model, 128 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50/60 Hz
2130002	HR1-400S-1	Upright model, 347 L, +2°C to +15°C Standard Controller 220-240 VAC, 50 Hz
2130025	HR1-400S-2	Upright model, 347 L, +2°C to +15°C Standard Controller 110-120 VAC, 50/60 Hz
2130024	HR1-400S-3	Upright model, 347 L, +2°C to +15°C Standard Controller 220-240 VAC, 60 Hz
2130013	HR1-400T-1	Upright model, 347 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50 Hz
2130027	HR1-400T-2	Upright model, 347 L, +2°C to +15°C Touchscreen Controller 110-120 VAC, 50/60 Hz
2130026	HR1-400T-3	Upright model, 347 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 60 Hz
2130174	HR1-700S-1	Upright model, 620 L, +2°C to +15°C Standard Controller 220-240 VAC, 50 Hz
2130028	HR1-700S-2	Upright model, 620 L, +2°C to +15°C Standard Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-700S-3	Upright model, 620 L, +2°C to +15°C Standard Controller 220-240 VAC, 60 Hz
2130003	HR1-700S-8	Upright model, 620 L, +2°C to +15°C Standard Controller 220-240 VAC, 50/60 Hz
2130173	HR1-700T-1	Upright model, 620 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50 Hz
2130029	HR1-700T-2	Upright model, 620 L, +2°C to +15°C Touchscreen Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-700T-3	Upright model, 620 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 60 Hz
2130014	HR1-700T-8	Upright model, 620 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50/60 Hz

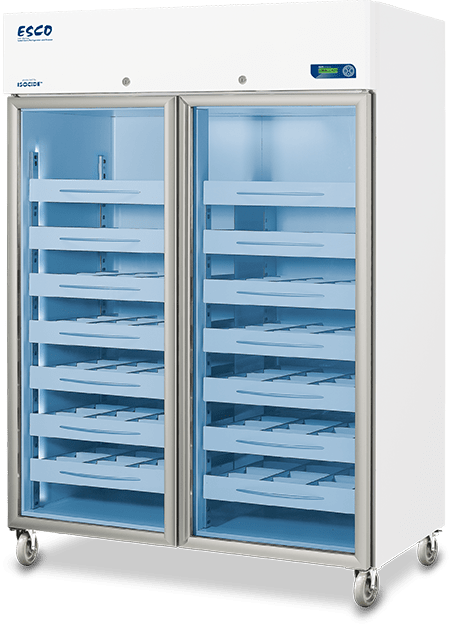

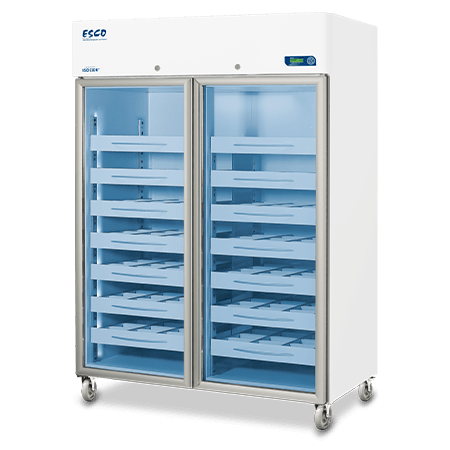

Available upon request	HR1-1500S-1	Upright model, 1355 L, +2°C to +15°C Standard Controller 220-240 VAC, 50 Hz
2130030	HR1-1500S-2	Upright model, 1355 L, +2°C to +15°C Standard Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-1500S-3	Upright model, 1355 L, +2°C to +15°C Standard Controller 220-240 VAC, 60 Hz
2130004	HR1-1500S-8	Upright model, 1355 L, +2°C to +15°C Standard Controller 220-240 VAC, 50/60 Hz

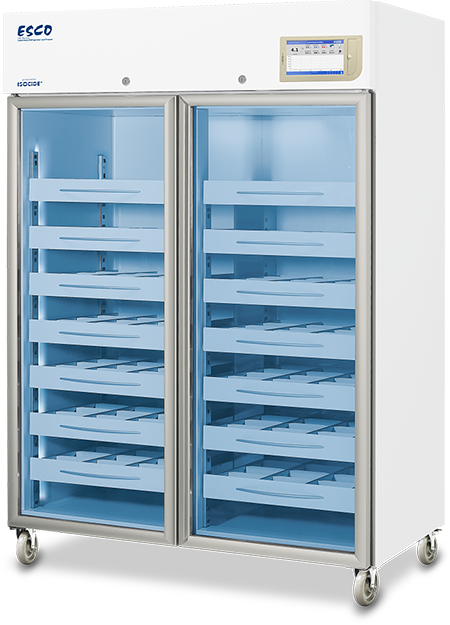

Available upon request	HR1-1500T-1	Upright model, 1355 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50 Hz
2130031	HR1-1500T-2	Upright model, 1355 L, +2°C to +15°C Touchscreen Controller 110-120 VAC, 50/60 Hz
Available upon request	HR1-1500T-3	Upright model, 1355 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 60 Hz
2130015	HR1-1500T-8	Upright model, 1355 L, +2°C to +15°C Touchscreen Controller 220-240 VAC, 50/60 Hz

Accessories

Item Code	Model Code	Description
1330063	SK1	Shelf Kits for HR1-140 (Standard and Touchscreen models)
1330064	SK2	Shelf Kits for HR1-400 (Standard and Touchscreen models)
1330065	SK3	Shelf Kits for HR1-700, HR1-1500 (Standard and Touchscreen models)
1330067	DK1	Drawer Kits for HR1-140 (Standard and Touchscreen models)
1330068	DK2	Drawer Kits for HR1-400 (Standard and Touchscreen models)
1330069	DK3	Drawer Kits for HR1-700, HR1-1500 (Standard and Touchscreen models)
1330072	DM1	Backup battery + Digital Monitor + PT100 probe for temperature monitoring and recording during power failure. (Single Chamber, Touchscreen Models)
5171092	AP15	15 mm Access Port with inner and outer wall cover (Standard and Touchscreen models)
1330075	AP35	35 mm Access Port with inner and outer wall cover (Standard and Touchscreen models)
1330076	BK1	Stainless Steel Basket Kit for HR1-700, HR1-1500 (Standard and Touchscreen models)
1330127	Backup Battery	Standard backup battery for temperature monitoring during power failure (Standard Models)
1330129	4-20 mA	4-20 mA Output (Touchscreen models)
1330216	GSM	GSM Module (Touchscreen models)
1330185	Chart Recorder	Chart Recorder for all models
9010179	IQOQ	Installation Qualification Operation Qualification for all models
