AC1-E

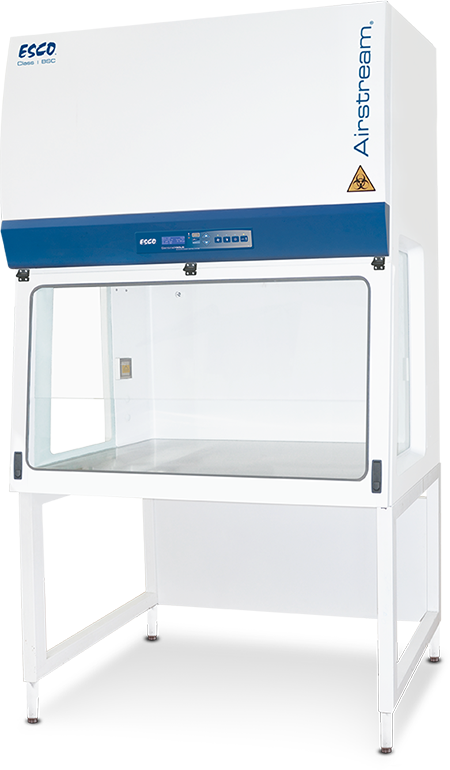

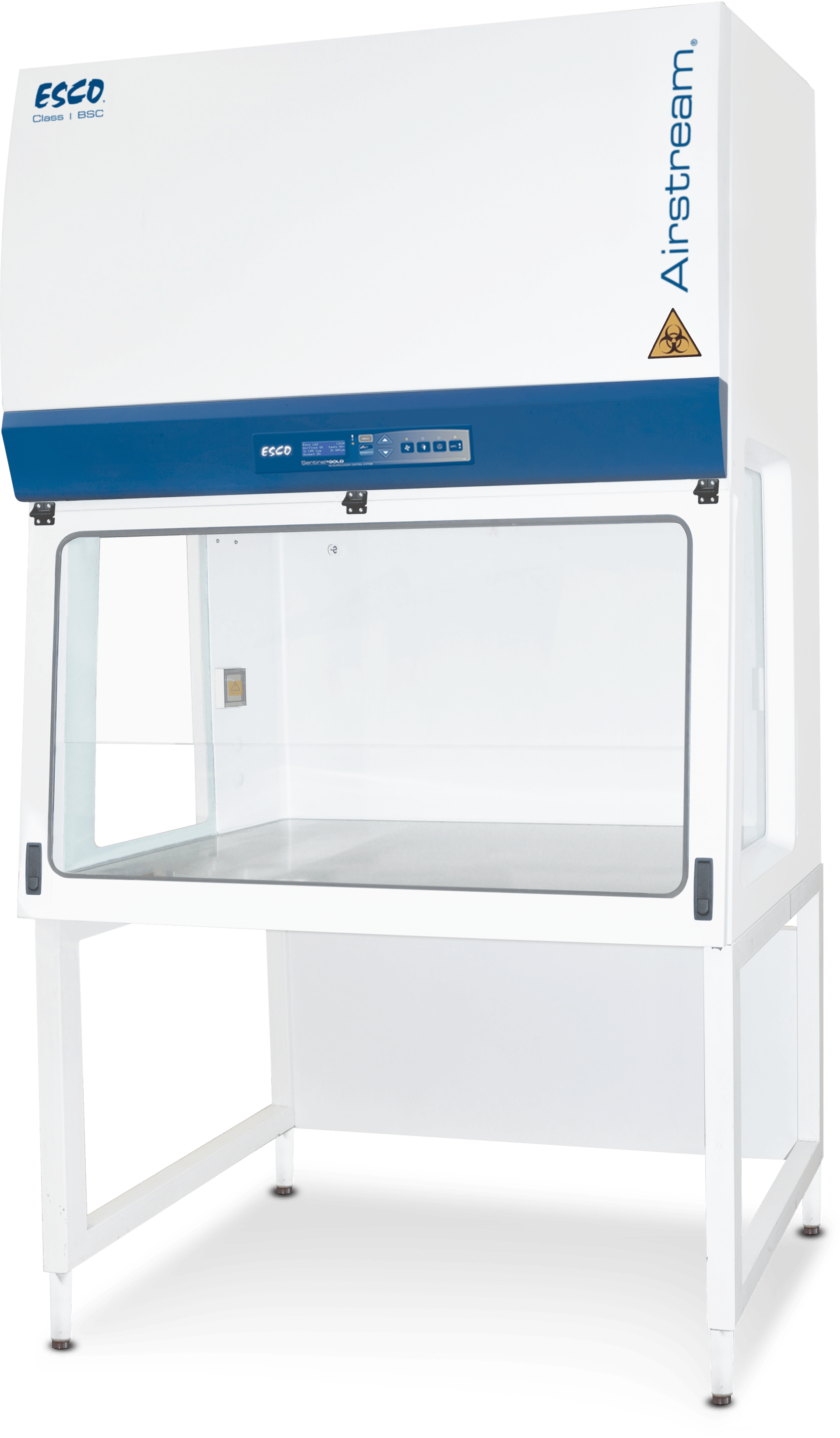

Airstream^® Class I Biological Safety Cabinet

Esco's Class I Biological Safety Cabinet has the most basic and rudimentary design of all biological safety cabinetry available today. A stream of inward air moving into the cabinet contains aerosols generated during microbiological manipulations. It then passes through a filtration system that traps all airborne particles and contaminants. Finally, clean and decontaminated air is exhausted from the cabinet. The filtration system usually consists of a pre-filter and a HEPA (High Efficiency Particulate Air) filter.

Request for Quote Online Product Form

Features

	Sentinel™ Gold Microprocessor Control system Has audible and visual alarms Displays all safety information on one screen Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation

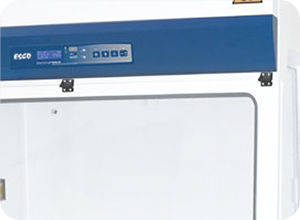

	Hinged Window 90º opening for an easy workzone access 8 mm UV Resistant Polycarbonate Window Gasket-surrounded window to provide airtight seal for better safety

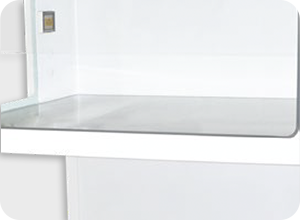

	Worktop 1.2 mm (0.05") 18 gauge SS 304, 4B Finish Spill-retaining work top design with a recessed central area contains accidental liquid spills.

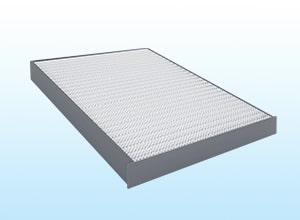

	H14 Filter 10x filtration efficiency of HEPA filter
	Energy Efficient DC ECM Motor 70% Energy savings from AC motor Stable airflow, despite building voltage fluctuations Standby Mode to further reduce power consumption by 60%
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
2010650	AC1-3E8	Airstream^® Class I Biological Safety Cabinet,3ft/0.9m
2010732	AC1-4E8	Airstream^® Class I Biological Safety Cabinet, 4ft/1.2m
2010879	AC1-5E8	Airstream^® Class I Biological Safety Cabinet, 5ft/1.5m

Accessories

Item Code	Model Code	Description
5170251	UV-15A	UV Lamp for AC1-3ft
5170255	UV-30A	UV Lamp for AC1-4ft and AC1-5ft
5072158	UV DOOR AC1-3	UV Door for AC1-3ft
5090044	UV DOOR AC1-4	UV Door for AC1-4ft
5072159	UV DOOR AC1-5	UV Door for AC1-5ft
5130155	SPC-3A0 Gen 2	Support Stand with Caster Wheels (Height 28”) for 3ft cabinets
5130152	SPC-4A0 Gen 2	Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5130162	SPC-5A0 Gen 2	Support Stand with Caster Wheels (Height 28”) for 5ft cabinets
5130165	SPC-3B0 Gen 2	Support Stand with Caster Wheels (Height 34”) for 3ft cabinets
5130166	SPC-4B0 Gen 2	Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5130167	SPC-5B0 Gen 2	Support Stand with Caster Wheels (Height 34”) for 5ft cabinets
5130170	SAL-3A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”) for 3ft cabinets
5130134	SAL-4A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets
5130171	SAL-5A0 Gen 2	Support Stand with Leveling Feet - I (Height 28”) for 5ft cabinets
5130174	SAL-3B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”) for 3ft cabinets
5130175	SAL-4B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets
5130176	SAL-5B0 Gen 2	Support Stand with Leveling Feet - I (Height 34”) for 5ft cabinets
5090093	NA	Pre-filter, for AC1-3ft
5090045	NA	Pre-filter, for AC1-4ft
5090094	NA	Pre-filter, for AC1-5ft
