AR2 G4

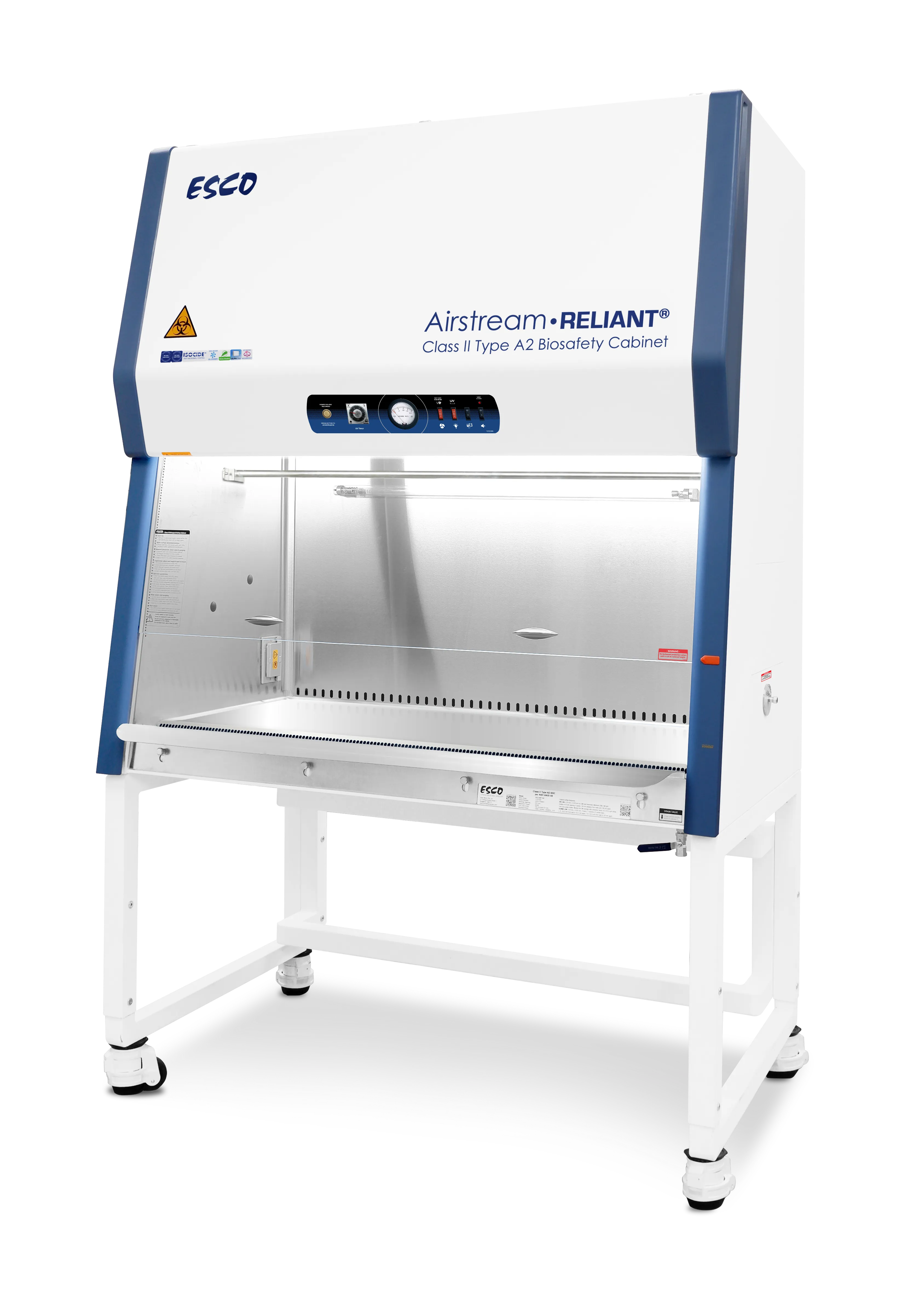

Airstream^® Reliant G4 Class II Type A2 Biological Safety Cabinet

The new compact-size Airstream® Reliant G4 BSC is NSF-certified and available in 8” sash height opening, with standby height that easily activates standby mode.

AR2 G4 ergonomic work zone is comprised of bright illumination using industry-leading LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Request for Quote

Features

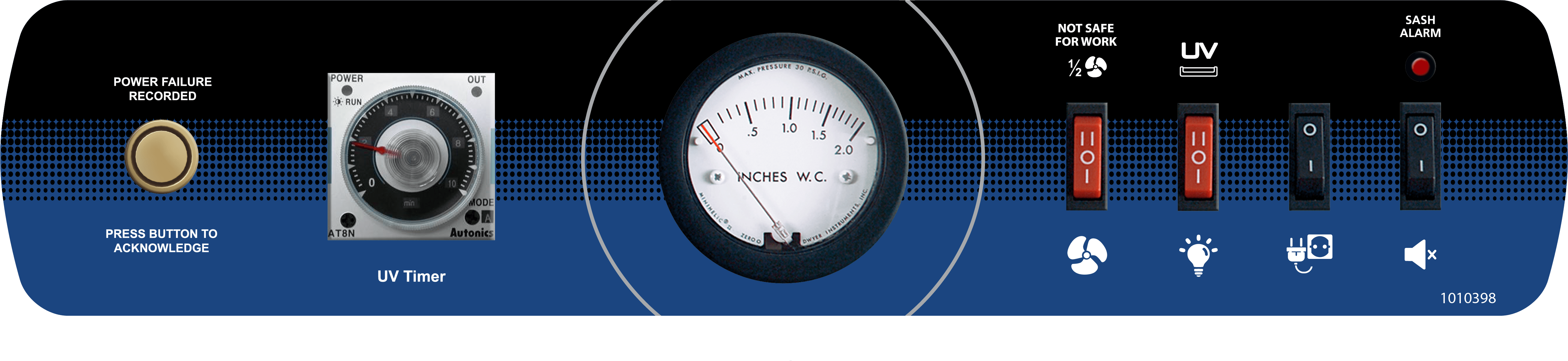

	Rocker Switches and Pressure Gauge New and improved controller interface Easy to use switches and displays filter loading status Manually adjustable UV timer

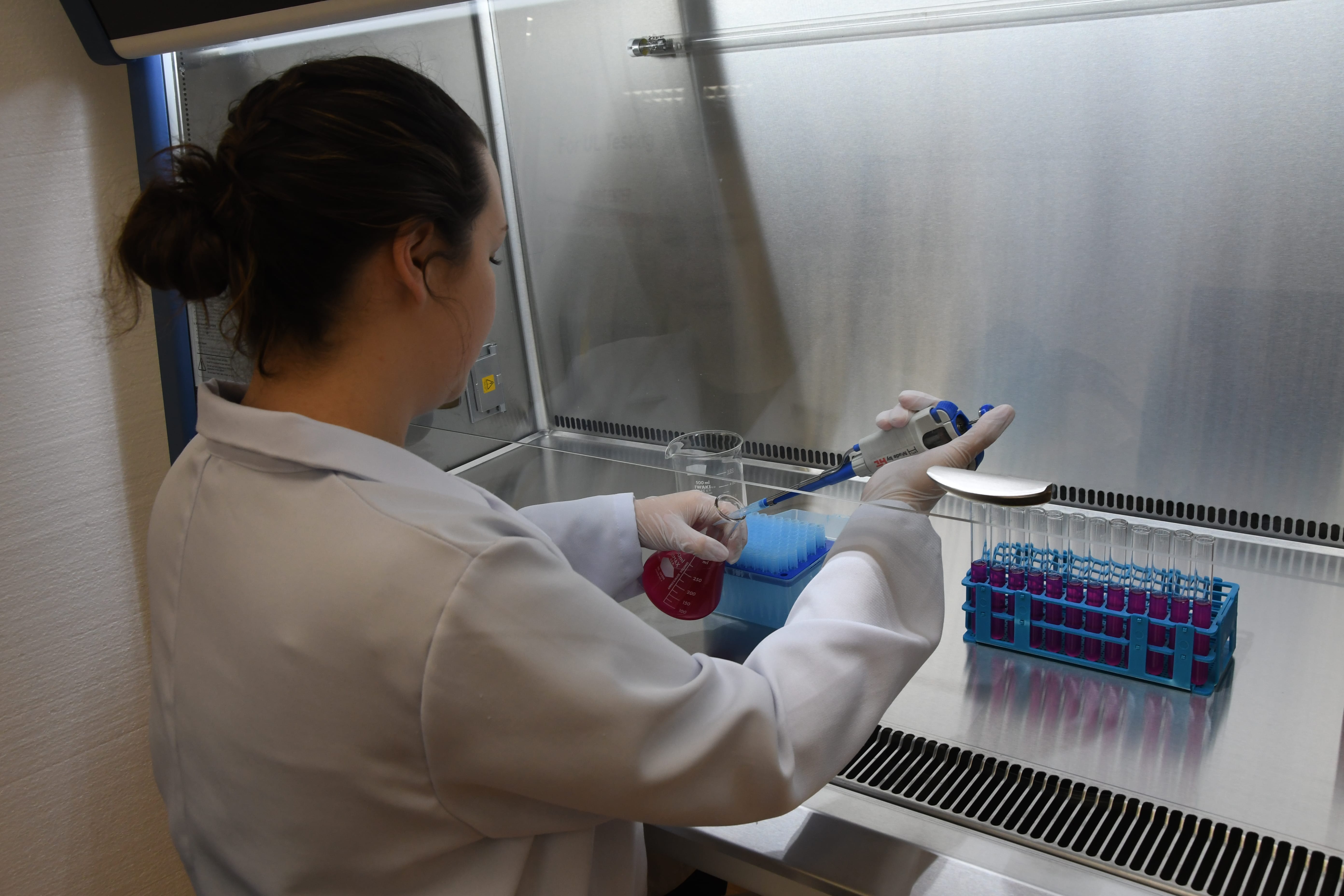

	Energy-efficient LED Optimum work zone brightness Ideal light intensity of 1200 lux Saves energy and optimizes work comfort
	Ergonomic Sash Available in 8” sash height opening Frameless, shatterproof, and UV-absorbing tempered glass
	Tray support beams and holder Support beams for less vibration and holder for easy drain pan cleaning
	Cabinet Construction S-Series: Stainless steel side walls with side capture zones and negative pressure to optimize containment Single-piece work tray, spill retaining and easy to clean E-Series: Tempered Glass Side walls - increase visibility and prevent the operator from experiencing a "boxed-in" feeling Multi-piece work tray, autoclavable
	Green Product Equipped with energy-efficient DC ECM that allows up to 70% energysavings vs AC motor Extremely low energy consumption Standby mode allows reduced power consumption
	ULPA Filter 10x filtration efficiency compared to the HEPA filter Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Same 10 years filter life and replacement cost as HEPA filters >99.999% at MPPS, H14 as per EN 1822 EU 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
110-130 VAC, 50/60 Hz
2011507	AR2-3S9	Airstream® Reliant G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011509	AR2-4S9	Airstream® Reliant G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011511	AR2-5S9	Airstream® Reliant G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011513	AR2-6S9	Airstream® Reliant G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening

Accessories

Item Code	Model Code	Description
5170251	UV-15A-L	UV Lamp for 2 ft and 3ft Cabinets
5170255	UV-30A-L	UV Lamp for 4ft, 5ft, 6ft Cabinets
5170071	EO-GFCI	GFCI Outlet x 2 (For -9 models)
	EO _	Electrical Outlet (Direct Mounted) x 2 (For -8 models)
IV Bars
5170498	IV-605	IV Bar 605 mm
5170499	IV-910	IV Bar 910 mm
5170231	IV-1215	IV Bar 1215 mm
5170500	IV-1520	IV Bar 1520 mm
5170501	IV-1825	IV Bar 1825 mm
Support Stands
5131339	STA-2A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 2ft cabinets
5131340	STA-3A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341	STA-4A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427	STA-5A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389	STA-6A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
Exhaust Collars
5171097	ECO-F1-LA2/AC2/LR2/AR2-3FT G4	Thimble Exhaust Collar for AR2-3 G4
5171098	ECO-F1-LA2/AC2/LR2/AR2/VA2-4FT G4	Thimble Exhaust Collar for AR2-4 G4
5171099	ECO-F1-LA2/AC2/LR2/AR2-5FT G4	Thimble Exhaust Collar for AR2-5 G4
5171100	ECO-F1-LA2/AC2/LR2/AR2/VA2-6FT G4	Thimble Exhaust Collar for AR2-6 G4
Exhaust Accessories
5170129	B2-ABBV1	Anti-blowback Valve 10 inches
5170354	ABBV-10S	Anti-blowback Valve 10 inches (304 Stainless Steel)
5170104	B2-DAMPER	Manual Volumetric Exhaust Damper
VHP IN Ports
5260329	Decon cover with VHP IN PORT AC2-3 G4	Decon cover with VHP IN PORT for AR2-3 G4
5260330	Decon cover with VHP IN PORT AC2-4 G4	Decon cover with VHP IN PORT for AR2-4 G4
5260331	Decon cover with VHP IN PORT AC2-5 G4	Decon cover with VHP IN PORT for AR2-5 G4
5260332	Decon cover with VHP IN PORT AC2-6 G4	Decon cover with VHP IN PORT for AR2-6 G4
VHP OUT Ports (WITHOUT exhaust collar)
5074983	VHP-OUT TOP BOX LA2-3-G4	VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-3-NS G4
5074984	VHP-OUT TOP BOX LA2-4-G4	VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-4-NS G4
5074985	VHP-OUT TOP BOX LA2-5-G4	VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-5-NS G4
5074986	VHP-OUT TOP BOX LA2-6-G4	VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for AC2-6-NS G4
VHP OUT Ports (WITH exhaust collar)
5171111	VHP-ECO/OUT LA2-3-G4	VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-3-NS G4
5171112	VHP-ECO/OUT LA2-4-G4	VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-4-NS G4
5171113	VHP-ECO/OUT LA2-5-G4	VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-5-NS G4
5171114	VHP-ECO/OUT LA2-6-G4	VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for AC2-6-NS G4
Others
5170127	MEWREST	Arm Rest Padding
5170492	FT-REST	Foot Rest
5142493	DRAINVALVE KIT G4	For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
9010179		IQ/OQ Protocol
