AC2-_S_ G4

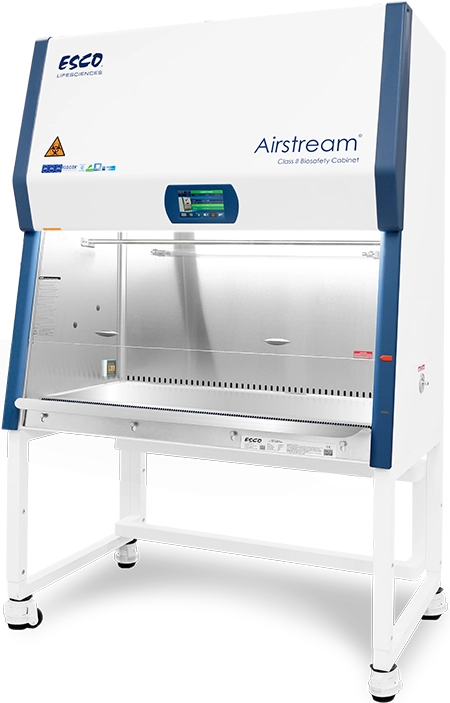

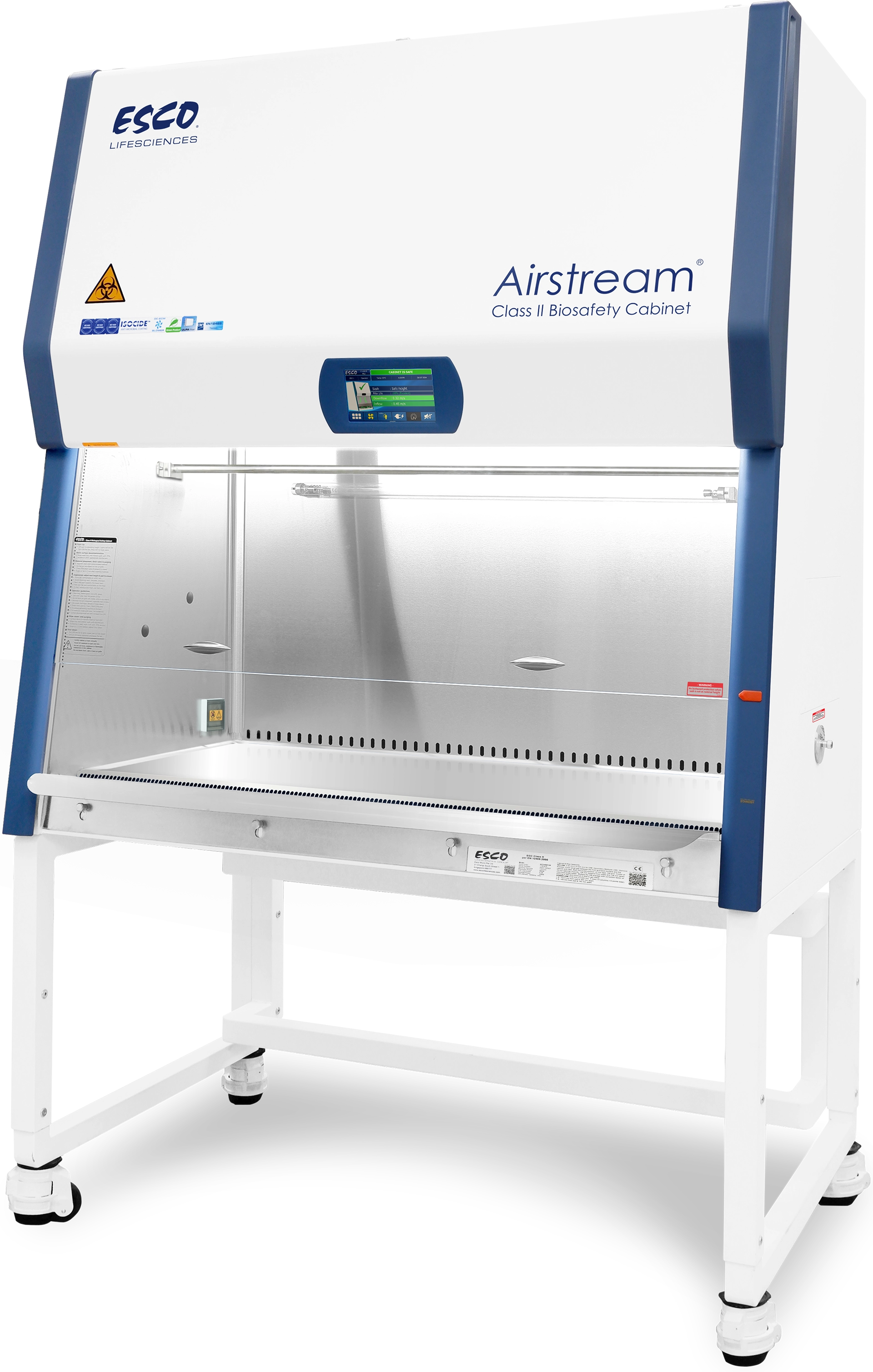

Airstream^® (S-series) G4 Class II Biological Safety Cabinet

Introducing Airstream® (S-series) G4 Class II Biosafety Cabinet.

The new BSC with Centurion Touchscreen controller is EN12469-certified with standby height that easily activates standby mode, an ergonomic work zone that is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest. It also comes with wider model options offering stainless steel (S-series) and glass (E-series) side wall variants.

The Airstream® (S-series) G4 incorporates greener features, ensuring a more sustainable and environmentally friendly operation. With its compact size and advanced features, this biosafety cabinet offers an unparalleled level of convenience and safety, making it the ideal choice for laboratories and research facilities.

Request for Quote

Features

	Centurion Touchscreen Controller Intuitive, comprehensive, and easy-to-understand Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram Defined details of alarm types with clear instructions for proper intervention Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation
	Dimmable LED Adjustable work zone brightness Ideal light intensity of 1000 lux Saves energy and optimizes work comfort

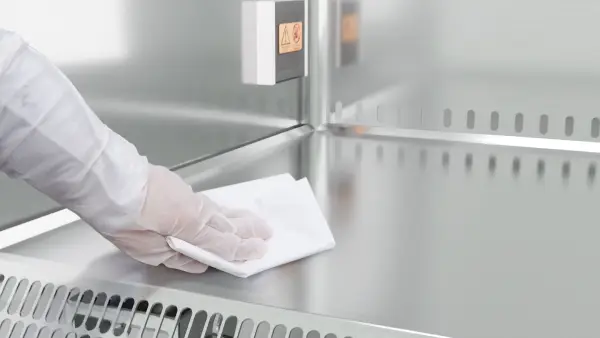

	Working Area S-Series: Single-piece work tray, spill retaining and easy to clean
	Ergonomic Armrest Full length arm rest for user comfort

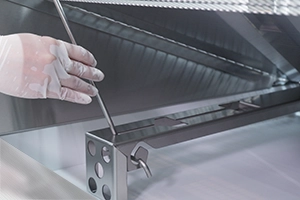

	Tray Support Beams and Holder Support beams for less vibration and holder for easy drain pan cleaning
	Ergonomic Sash Frameless, shatterproof, and UV-absorbing tempered glass Designed with a 10° angle to enhance user comfort during operation.
	USB Port and Remote Modbus USB port to access cabinet data log and BMS connectivity Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

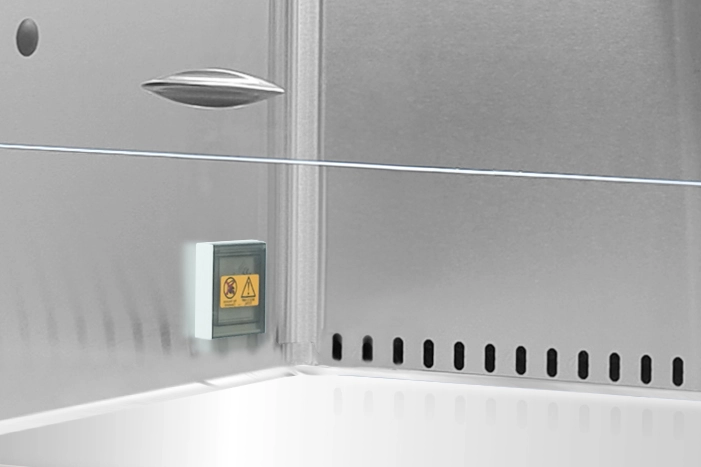

	Cabinet Construction S-Series: Stainless steel side walls with side capture zones and negative pressure to optimize containment efficiency
	Green Product Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor Standby mode to reduced power consumption
	Advanced Filtration System Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Long filter life for lower operating cost, up to 10 years 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA 99.999% at MPPS, H14 as per EN 1822 EU
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
220-240VAC, 50/60 Hz (S-Series: Stainless steel side walls, single piece work tray)
2011485	AC2-2S8 G4	Airstream® G4 Class II Biological Safety Cabinet, 2ft/0.6m
2011486	AC2-3S8 G4	Airstream® G4 Class II Biological Safety Cabinet, 3ft/0.9m
2011439	AC2-4S8 G4	Airstream® G4 Class II Biological Safety Cabinet, 4ft/1.2m
2011487	AC2-5S8 G4	Airstream® G4 Class II Biological Safety Cabinet, 5ft/1.5m
2011488	AC2-6S8 G4	Airstream® G4 Class II Biological Safety Cabinet, 6ft/1.8m

Accessories

Item Code	Model Code	Description
5170251	UV-15A-L	UV Lamp for 2 ft and 3ft Cabinets
5170255	UV-30A-L	UV Lamp for 4ft, 5ft, 6ft Cabinets
IV Bars
5170498	IV-605	IV Bar 605 mm
5170499	IV-910	IV Bar 910 mm
5170231	IV-1215	IV Bar 1215 mm
5170500	IV-1520	IV Bar 1520 mm
5170501	IV-1825	IV Bar 1825 mm
Support Stands
5131339	STA-2A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 2ft cabinets
5131340	STA-3A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341	STA-4A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427	STA-5A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389	STA-6A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410	SF-1G20	European Style Service Fixture with 20mm Thread Length - Gas
5170457	SF-1V20	European Style Service Fixture with 20mm Thread Length - Vacuum
5170502	SF-1A20	European Style Service Fixture with 20mm Thread Length - Air
5170503	SF-1N20	European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458	SF-1W20	European Style Service Fixture with 20mm Thread Length - Water
5170504	SF-2U22	American Style Service Fixture with 22mm Thread Length - Universal
Exhaust Collars
5171246	ECO-AC2/SC2-2FT-EN G4	Thimble Exhaust Collar for AC2-2S_ G4
5171247	ECO-AC2/SC2-3FT-EN G4	Thimble Exhaust Collar for AC2-3S_ G4
5171248	ECO-AC2/SC2-4/5FT-EN G4	Thimble Exhaust Collar for AC2-4S_ G4 and AC2-5S_ G4
5171250	ECO-AC2/SC2-6FT-EN G4	Thimble Exhaust Collar for AC2-6S_ G4
Exhaust Accessories
5170352	ABBV1-10P	Anti-blowback Valve 10 inches (EG Material)
5170354	ABBV-10S	Anti-blowback Valve 10 inches (Stainless Steel Material)
5170104	DAMPER	Exhaust Damper
VHP IN Ports
5171319	Front Decon cover with VHP IN PORT AC2-2S_ G4	Front Decon cover with VHP IN PORT for AC2-2S_-G4
5171321	Front Decon cover with VHP IN PORT AC2-3S_ G4	Front Decon cover with VHP IN PORT for AC2-3S_-G4
5171323	Front Decon cover with VHP IN PORT AC2-4S_ G4	Front Decon cover with VHP IN PORT for AC2-4S_-G4
5171325	Front Decon cover with VHP IN PORT AC2-5S_ G4	Front Decon cover with VHP IN PORT for AC2-5S_-G4
5171327	Front Decon cover with VHP IN PORT AC2-6S_ G4	Front Decon cover with VHP IN PORT for AC2-6S_-G4
VHP OUT Ports
5171320	Top Decon cover with VHP OUT PORT AC2-2S_ G4	Top Decon cover with VHP OUT PORT for AC2-2S_-G4
5171322	Top Decon cover with VHP OUT PORT AC2-3S_ G4	Top Decon cover with VHP OUT PORT for AC2-3S_-G4
5171324	Top Decon cover with VHP OUT PORT AC2-4S_ G4	Top Decon cover with VHP OUT PORT for AC2-4S_-G4
5171326	Top Decon cover with VHP OUT PORT AC2-5S_ G4	Top Decon cover with VHP OUT PORT for AC2-5S_-G4
5171328	Top Decon cover with VHP OUT PORT AC2-6S_ G4	Top Decon cover with VHP OUT PORT for AC2-6S_-G4
Top Box VHP OUT Ports
5171350	TOP BOX W/ VHP-OUT AC2-2SG4	Top Box with VHP OUT (25mm (1") diameter) for AC2-2S_-G4
5171298	TOP BOX W/ VHP-OUT AC2-3SG4	Top Box with VHP OUT (25mm (1") diameter) for AC2-3S_-G4
5171299	TOP BOX W/ VHP-OUT AC2-4SG4	Top Box with VHP OUT (25mm (1") diameter) for AC2-4S_-G4 and AC2-5S_-G4
5171301	TOP BOX W/ VHP-OUT AC2-6SG4	Top Box with VHP OUT (25mm (1") diameter) for AC2-6S_-G4
Pre-Filter
5090060	PF-40	Pre-Filter, Paper Catch (Black Foam Only) for AC2-2S_-G4
5090061	PF-41	Pre-Filter, Paper Catch (Black Foam Only) for AC2-3S_-G4 and AC2-6S_-G4
5090062	PF-42	Pre-Filter, Paper Catch (Black Foam Only) for AC2-4S_-G4
5090063	PF-43	Pre-Filter, Paper Catch (Black Foam Only) for AC2-5S_-G4
Others
5175239	SOLENOID VALVE FITTING	Solenoid Gas Valve
5170026	COPPER PIPING	Copper Piping
5170127	MEWREST	Arm Rest Padding
5170073	FT-REST	Foot Rest
9010179		IQ/OQ Protocol
