Class II Biological Safety Cabinet

ProductsBiological Safety CabinetClass II BSC › Labculture® G4 Class II Type A2 Biological Safety Cabinet

Labculture® G4 Class II Type A2 Biological Safety Cabinet

LA2-S G4

Labculture® G4 Class II Type A2 Biological Safety Cabinet

The new BSC with Centurion Touchscreen controller is NSF-certified and available in three sash height openings: 8", 10", and 12" inches, with standby height that easily activates standby mode.

Labculture® G4 (LA2 G4) ergonomic work zone is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Features

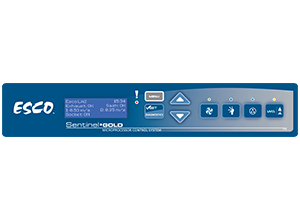

Centurion Touchscreen Controller

  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

Dimmable LED

  • Adjustable work zone brightness
  • Ideal light intensity of 1200 lux
  • Saves energy and optimizes work comfort

Ergonomic Sash

  • Available in 8”, 10”, and 12” sash openings
  • Frameless, shatterproof, and UV-absorbing tempered glass

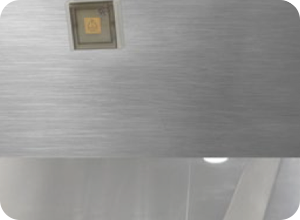

Tray support beams and holder

  • Support beams for less vibration and holder for easy drain pan cleaning

USB Port and Remote Modbus

  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices

Cabinet Construction

  • Stainless steel side walls with side capture zones and negative pressure to optimize containment
  • Single-piece work tray, spill retaining and easy to clean

Green Product

  • Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption with 205 watts (4 ft unit)
  • Standby mode allows reduced power consumption by 80%

ULPA Filter

  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters

*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code Model Code Description
220-240 VAC, 50/60 Hz
2011666 LA2-3S8-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011682 LA2-3S8-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011714 LA2-3S8-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 12-inch opening
2011668 LA2-4S8-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011684 LA2-4S8-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011716 LA2-4S8-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 12-inch opening
2011670 LA2-5S8-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011686 LA2-5S8-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011718 LA2-5S8-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 12-inch opening
2011672 LA2-6S8-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011688 LA2-6S8-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening
2011720 LA2-6S8-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 12-inch opening
110-130 VAC, 50/60 Hz
2011667 LA2-3S9-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 8-inch opening
2011683 LA2-3S9-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 10-inch opening
2011715 LA2-3S9-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 3ft/0.9m, 12-inch opening
2011669 LA2-4S9-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 8-inch opening
2011685 LA2-4S9-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 10-inch opening
2011717 LA2-4S9-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 4ft/1.2m, 12-inch opening
2011671 LA2-5S9-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 8-inch opening
2011687 LA2-5S9-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 10-inch opening
2011719 LA2-5S9-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 5ft/1.5m, 12-inch opening
2011673 LA2-6S9-G4 8” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 8-inch opening
2011689 LA2-6S9-G4 10” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 10-inch opening
2011721 LA2-6S9-G4 12” Labculture® G4 Class II Type A2 Biological Safety Cabinet, 6ft/1.8m, 12-inch opening

Accessories

Item Code Model Code Description
5170251 UV-15A-L UV Lamp for 3ft Cabinets
5170255 UV-30A-L UV Lamp for 4ft, 5ft, 6ft Cabinets
5170071 EO-GFCI GFCI Outlet x 2
EO _ Electrical Outlet (Direct Mounted) x 2
IV Bars
5170499 IV-910 IV Bar 910 mm
5170231 IV-1215 IV Bar 1215 mm
5170500 IV-1520 IV Bar 1520 mm
5170501 IV-1825 IV Bar 1825 mm
Support Stands
5131340 STA-3A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341 STA-4A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427 STA-5A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389 STA-6A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410 SF-1G20 European Style Service Fixture with 20mm Thread Length - Gas
5170457 SF-1V20 European Style Service Fixture with 20mm Thread Length - Vacuum
5170502 SF-1A20 European Style Service Fixture with 20mm Thread Length - Air
5170503 SF-1N20 European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458 SF-1W20 European Style Service Fixture with 20mm Thread Length - Water
5170504 SF-2U22 American Style Service Fixture with 22mm Thread Length - Universal
Exhaust Collars
5171097 ECO-F-LA2-3-G4 Thimble Exhaust Collar for LA2-3-G4
5171098 ECO-F-LA2-4-G4 Thimble Exhaust Collar for LA2-4-G4
5171099 ECO-F-LA2-5-G4 Thimble Exhaust Collar for LA2-5-G4
5171100 ECO-F-LA2-6-G4 Thimble Exhaust Collar for LA2-6-G4
Exhaust Accessories
5170129 ABBV-10P Anti-blowback Valve 10 inches
5170354 ABBV-10S Anti-blowback Valve 10 inches (304 Stainless Steel)
5170104 B2-DAMPER Manual Volumetric Exhaust Damper
VHP Ports
5260329 Decon cover with VHP IN PORT LA2-3-G4 Decon cover with VHP IN PORT for LA2-3-G4
5260330 Decon cover with VHP IN PORT LA2-4-G4 Decon cover with VHP IN PORT for LA2-4-G4
5260331 Decon cover with VHP IN PORT LA2-5-G4 Decon cover with VHP IN PORT for LA2-5-G4
5260332 Decon cover with VHP IN PORT LA2-6-G4 Decon cover with VHP IN PORT for LA2-6-G4
5074983 VHP-OUT TOP BOX LA2-3-G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-3-G4
5074984 VHP-OUT TOP BOX LA2-4-G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-4-G4
5074985 VHP-OUT TOP BOX LA2-5-G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-5-G4
5074986 VHP-OUT TOP BOX LA2-6-G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-6-G4
5171111 VHP-ECO/OUT LA2-3-G4 VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-3-G4
5171112 VHP-ECO/OUT LA2-4-G4 VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-4-G4
5171113 VHP-ECO/OUT LA2-5-G4 VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-5-G4
5171114 VHP-ECO/OUT LA2-6-G4 VHP OUT PORT For Cabinet WITH Exhaust collar installed (1-inch diameter) for LA2-6-G4
Others
5170127 MEWREST Arm Rest Padding
5170073 FT-REST Foot Rest
5142493 DRAINVALVE KIT G4 For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
9010179   IQ/OQ Protocol
