LB2-B G4

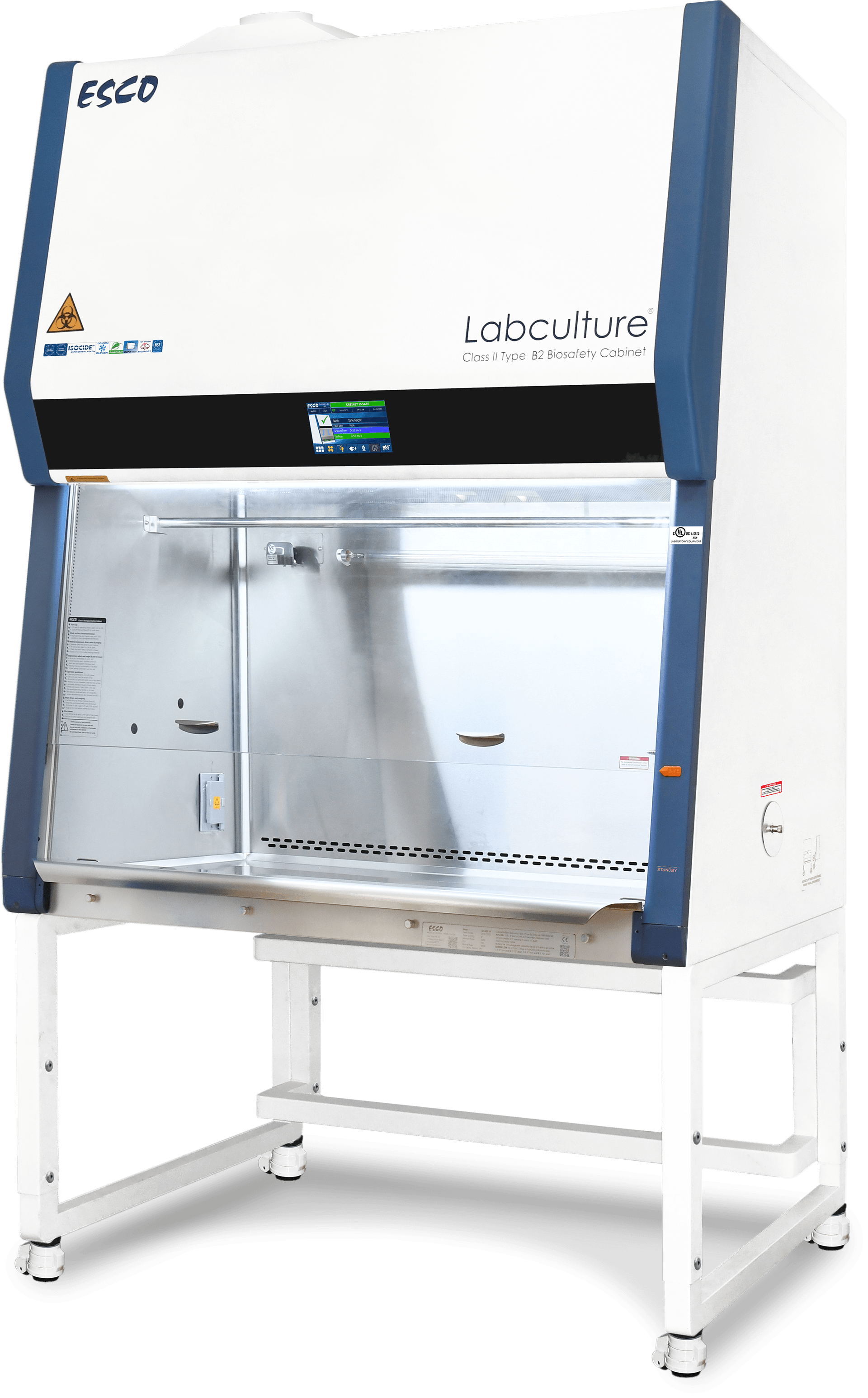

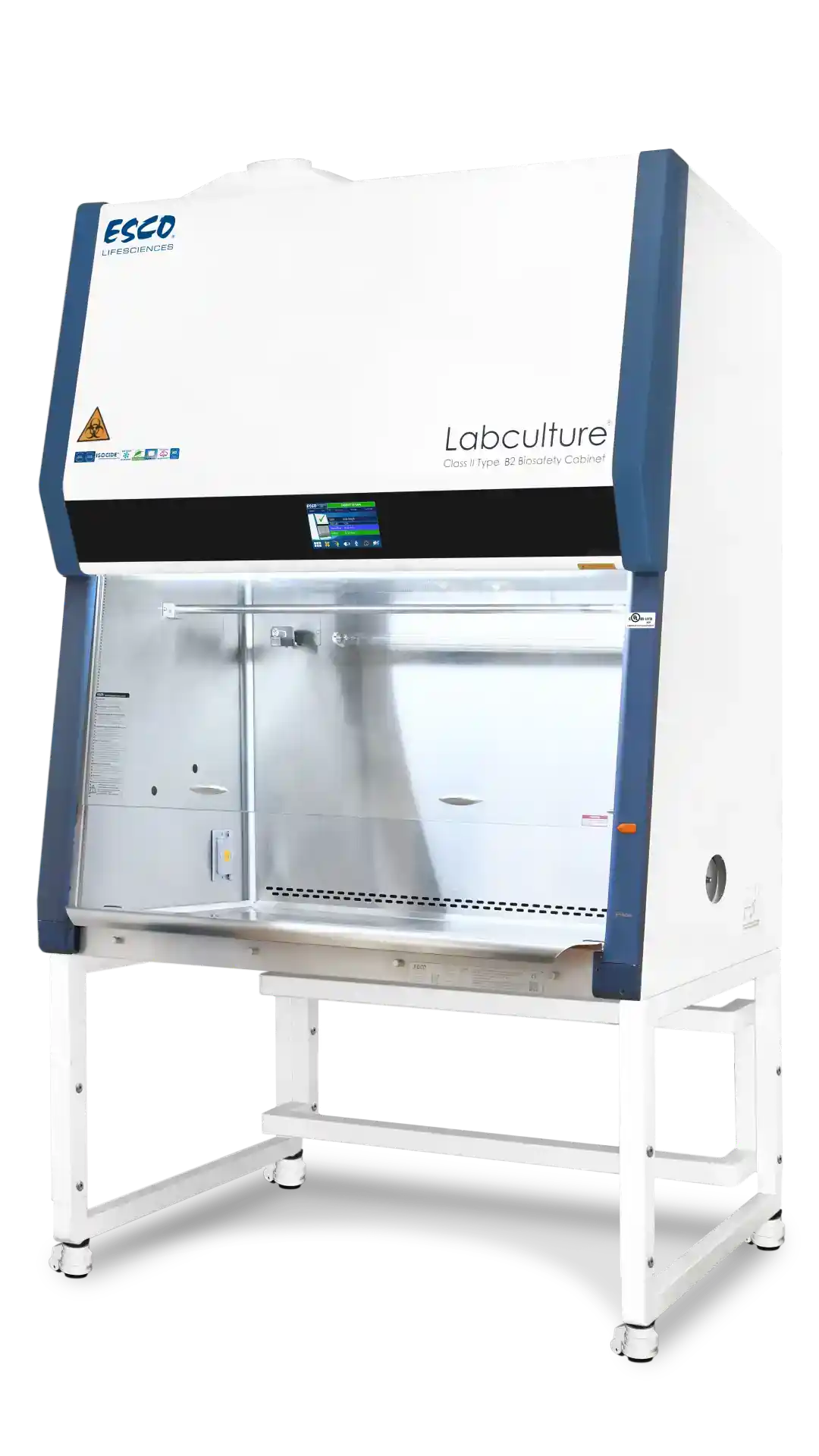

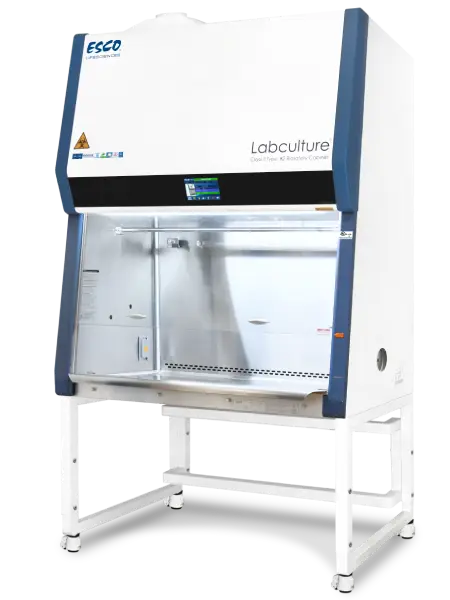

Labculture^® G4 Class II Type B2 (Total Exhaust) Biological Safety Cabinet

The latest Labculture® G4 (LB2 G4) Biosafety Cabinet with 100% exhaust airflow mechanism provides a high level of containment and user and product protection. LB2 G4 also has fail-safe system where in case of exhaust failure, the cabinet’s main fan automatically shuts down to ensure safety.

The new BSC with Centurion Touchscreen controller is NSF-certified, ergonomically designed, and work zone lighted with bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest and large, recessed, spill-containing work tray devised for optimum work comfort.

Request for Quote Online Product Form

Features

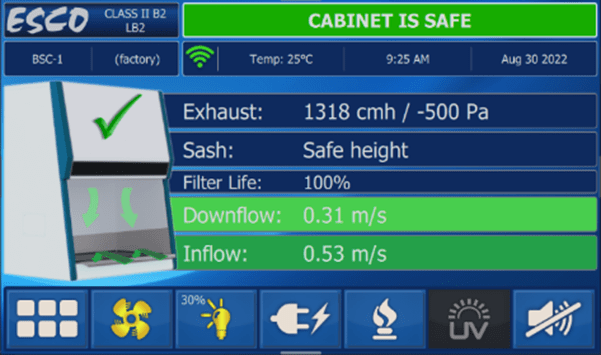

	Centurion Touchscreen Controller Intuitive, comprehensive, and easy-to-understand Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram Defined details of alarm types with clear instructions for proper intervention Centered and angled down for easy reach & viewing Selectable Quickstart mode for fast operation
	Dimmable LED Adjustable work zone brightness Ideal light intensity of 1200 lux Saves energy and optimizes work comfort
	Ergonomic Sash 8” sash opening Frameless, shatterproof, and UV-absorbing tempered glass
	Tray support beams and holder Support beams for less vibration and holder for easy drain pan cleaning
	USB Port and Remote Modbus USB port to access cabinet data log and BMS connectivity Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

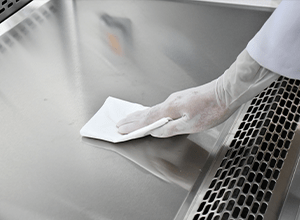

	Cabinet Construction Stainless steel side walls with side capture zones and negative pressure to optimize containment Single-piece work tray, spill retaining and easy to clean
	Green Product Equipped with energy-efficient DC ECM that allows up to 70% energy savings vs AC motor Extremely low energy consumption
	ULPA Filter 10x filtration efficiency compared to the HEPA filter Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5 Same 10 years filter life and replacement cost as HEPA filters 99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA >99.999% at MPPS, H14 as per EN 1822 EU
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
220-240 VAC, 50/60 Hz
2011364	LB2-3B8 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 3ft/0.9m
2011365	LB2-4B8 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 4ft/1.2m
2011366	LB2-5B8 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 5ft/1.5m
2011367	LB2-6B8 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 6ft/1.8m
110-130 VAC, 50/60 Hz
2011360	LB2-3B9 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 3ft/0.9m
2011361	LB2-4B9 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 4ft/1.2m
2011362	LB2-5B9 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 5ft/1.5m
2011363	LB2-6B9 G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 6ft/1.8m
220-240 VAC, 50/60 Hz (with BIBO)
2011377	LB2-3B8-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 3ft/0.9m (with BIBO)
2011378	LB2-4B8-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 4ft/1.2m (with BIBO)
2011379	LB2-5B8-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 5ft/1.5m (with BIBO)
2011380	LB2-6B8-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 6ft/1.8m (with BIBO)
110-130 VAC, 50/60 Hz (with BIBO)
2011373	LB2-3B9-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 3ft/0.9m (with BIBO)
2011374	LB2-4B9-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 4ft/1.2m (with BIBO)
2011375	LB2-5B9-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 5ft/1.5m (with BIBO)
2011376	LB2-6B9-BIBO G4	Labculture® G4 Class II Type B2 Biological Safety Cabinet, 6ft/1.8m (with BIBO)

Accessories

Item Code	Model Code	Description
5170251	UV-15A-L	UV Lamp for 3ft Cabinets
5170255	UV-30A-L	UV Lamp for 4ft, 5ft, 6ft Cabinets
5170071	EO-GFCI	GFCI Outlet x 2
	EO _	Electrical Outlet (Direct Mounted) x 2
IV Bars
5170276	IV-955	IV Bar 955 mm
5170277	IV-1260	IV Bar 1260 mm
5170278	IV-1565	IV Bar 1565 mm
5170279	IV-1870	IV Bar 1870 mm
Support Stands
5131340	STA-3A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 3ft cabinets
5131341	STA-4A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131427	STA-5A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 5ft cabinets
5131389	STA-6A0	Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170002	SF-1G40	European Style Service Fixture with 40mm Thread Length - Gas
5170003	SF-1V40	European Style Service Fixture with 40mm Thread Length - Vacuum
5170006	SF-1A40	European Style Service Fixture with 40mm Thread Length - Air
5170011	SF-1N40	European Style Service Fixture with 40mm Thread Length - Nitrogen
5170017	SF-1W40	European Style Service Fixture with 40mm Thread Length - Water
5170018	SF-2U40	American Style Service Fixture with 40mm Thread Length - Universal
5170026	CU-Pipe	Copper Pipping for Service Fixture - Must be Factory Installed
Exhaust Accessories
5170320	ICO-LB23	Inlet Collar for LB2-3 (diameter-10 inches)
5170263	ICO-LB24	Inlet Collar for LB2-4 (diameter-10 inches)
5170316	ICO-LB25	Inlet Collar for LB2-5 (diameter-10 inches)
5170322	ICO-LB26	Inlet Collar for LB2-6 (diameter-10 inches)
5170353	ABBV-12P	Anti Blowback Valve
5170355	ABBV-12S	Anti Blowback Valve (304 Stainless Steel)
5170105	B2-DAMPER 12"	Manual Volumetric Exhaust Damper 12"
Others
5090001	PF-2	Prefilter, 565 X 500mm
5170127	MEWREST	Arm Rest Padding
5170073	FT-REST	Foot Rest
5142493	DRAINVALVE KIT G4	For LA2/AC2-NS/LB2/LR2/VA2/AR2 G4
9010179		IQ/OQ Protocol
