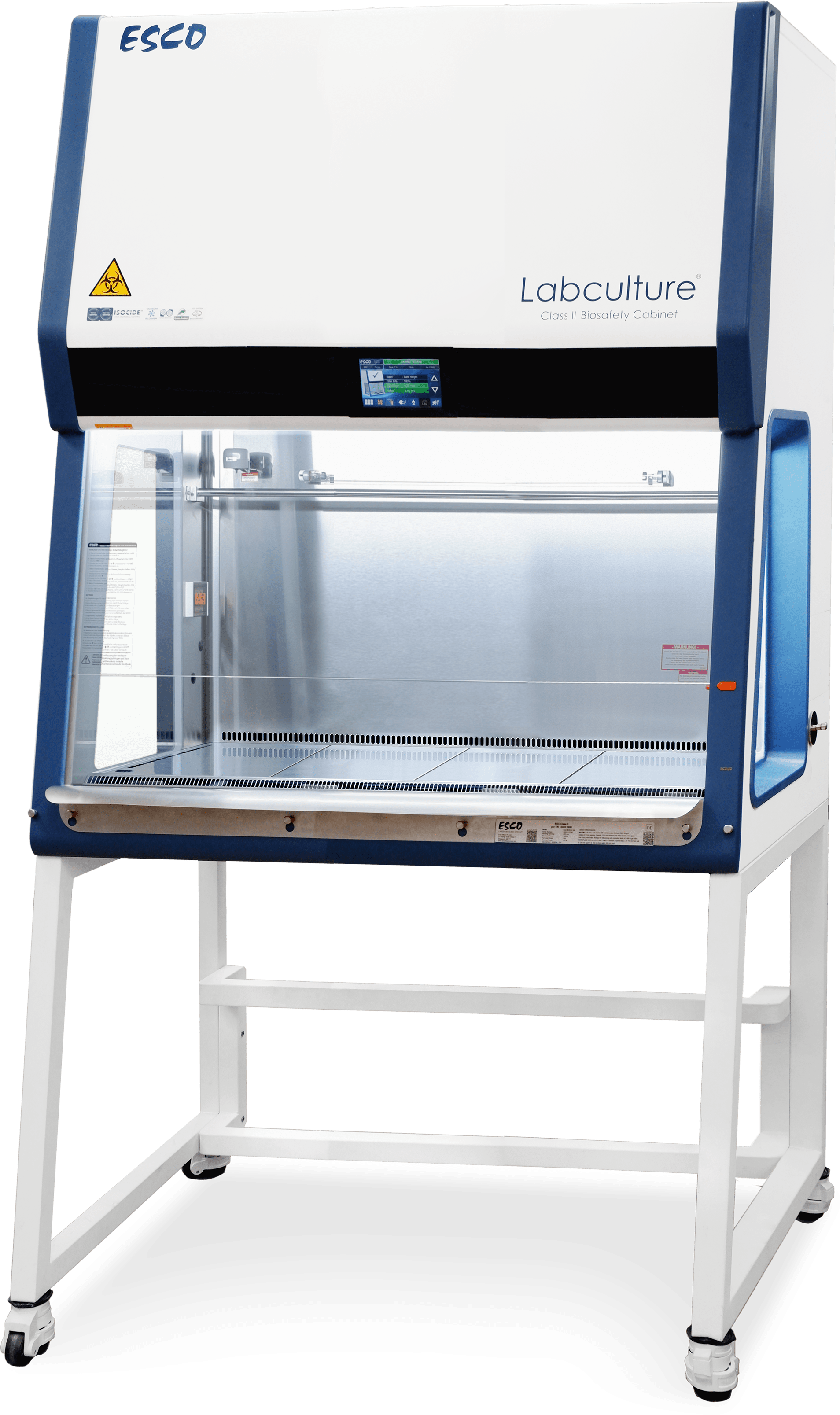

Labculture® Plus (E-Series) G4 Class II Biological Safety Cabinet

LA2-E-EU G4

Labculture® Plus (E-Series) G4 Class II Biological Safety Cabinet

The new BSC with Centurion Touchscreen controller is EN 12469-certified and now available in 200 mm (8") opening, with standby height that easily activates standby mode.

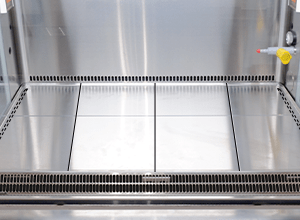

Labculture® Plus G4 (LA2-E-EU G4) ergonomic work zone is comprised of bright illumination using industry-leading dimmable LED lamp combined with raised, durable, stainless-steel armrest and autoclavable, multi-piece work zone devised for optimum work comfort.

Features

Centurion Touchscreen Controller

  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

Dimmable LED

  • Adjustable work zone brightness
  • Ideal light intensity of 1000 lux
  • Saves energy and optimizes work comfort

Ergonomic Features

  • 200 mm (8") sash opening
  • Frameless, shatterproof, and UV-absorbing tempered glass
  • Motorized window
  • Aerosol tight window seal

Tiltable Sash

  • For easy cleaning of the inner sash glass

USB Port and Remote Modbus

  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

Cabinet Construction

  • E-Series:
    • Tempered Glass Side walls - increases visibility and prevents the operator from experiencing a "boxed-in" feeling
    • Multi-piece work tray, autoclavable

Green Product

  • Equipped with energy-efficient Dual DC ECM that allows up to 70% energy savings vs AC motor
  • Extremely low energy consumption
  • Standby mode allows reduced power consumption

ULPA Filter

  • 10x filtration efficiency compared to the HEPA filter
  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Same 10 years filter life and replacement cost as HEPA filters

*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code Model Code Description
E-Series (Glass side walls, multi-piece work tray)
2011742 LA2-3E8-EU G4 Labculture® Plus G4 Class II Biological Safety Cabinet, 3ft/0.9m, 220-240 VAC, 50/60 Hz
2011743 LA2-4E8-EU G4 Labculture® Plus G4 Class II Biological Safety Cabinet, 4ft/1.2m, 220-240 VAC, 50/60 Hz
2011744 LA2-5E8-EU G4 Labculture® Plus G4 Class II Biological Safety Cabinet, 5ft/1.5m, 220-240 VAC, 50/60 Hz
2011745 LA2-6E8-EU G4 Labculture® Plus G4 Class II Biological Safety Cabinet, 6ft/1.8m, 220-240 VAC, 50/60 Hz

Accessories

Item Code Model Code Description
5170251 UV-15A-L UV Lamp for 3ft Cabinets
5170255 UV-30A-L UV Lamp for 4ft, 5ft, 6ft Cabinets
EO _ Electrical Outlet (Direct Mounted) x 2
IV Bars
5170499 IV-910 IV Bar 910 mm
5170231 IV-1215 IV Bar 1215 mm
5170500 IV-1520 IV Bar 1520 mm
5170501 IV-1825 IV Bar 1825 mm
Support Stands
5131343 SPEU-3A0 Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 3ft cabinets
5131344 SPEU-4A0 Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 4ft cabinets
5131455 SPEU-5A0 Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 5ft cabinets
5131456 SPEU-6A0 Support Stand w/ Castors and Leveling feet (28” / 711 mm height) for 6ft cabinets
5170457 SPEU-3B0 Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 3ft cabinets
5170458 SPEU-4B0 Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 4ft cabinets
5170459 SPEU-5B0 Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 5ft cabinets
5170460 SPEU-6B0 Support Stand w/ Castors and Leveling feet (36” / 914 mm height) for 6ft cabinets
Service Fixtures
5170410 SF-1G20 European Style Service Fixture with 20mm Thread Length - Gas
5170457 SF-1V20 European Style Service Fixture with 20mm Thread Length - Vacuum
5170502 SF-1A20 European Style Service Fixture with 20mm Thread Length - Air
5170503 SF-1N20 European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458 SF-1W20 European Style Service Fixture with 20mm Thread Length - Water
5170504 SF-2U22 American Style Service Fixture with 22mm Thread Length - Universal
5170026 COPPER PIPING Copper Piping for Service Fixture - Must be Factory Installed
5070086 SOLENOID GAS VALVE 230 VAC Solenoid Gas Valve
Exhaust Collars
5171186 ECO-LA2EU-3FT G4 Thimble Exhaust Collar for LA2-3-EU G4
5171187 ECO-LA2EU-4FT G4 Thimble Exhaust Collar for LA2-4-EU G4
5171188 ECO-LA2EU-5FT G4 Thimble Exhaust Collar for LA2-5-EU G4
5171189 ECO-LA2EU-6FT G4 Thimble Exhaust Collar for LA2-6-EU G4
Exhaust Accessories
5170352 ABBV-10P Anti-blowback Valve 10 inches
5170354 ABBV-10S Anti-blowback Valve 10 inches (304 Stainless Steel)
5170104 B2-DAMPER Manual Volumetric Exhaust Damper
VHP Ports
5075042 VHP-OUT TOP BOX LA2-3-EU G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-3-EU G4
5075043 VHP-OUT TOP BOX LA2-4-EU G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-4-EU G4
5075044 VHP-OUT TOP BOX LA2-5-EU G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-5-EU G4
5075045 VHP-OUT TOP BOX LA2-6-EU G4 VHP OUT TOP BOX For Cabinet WITHOUT Exhaust collar installed (1-inch diameter) for LA2-6-EU G4
Pre-Filters
5090061 PF-41 Prefilter, 895x125x6mm, LA2-EU 3ft G4
5090062 PF-42 Prefilter, 1200x125x6mm, LA2-EU 4ft G4
5090063 PF-43 Prefilter, 1505x125x6mm, LA2-EU 5ft G4
5090064 PF-44 Prefilter, 1810x125x6mm, LA2-EU 6ft G4
Others
5170127 MEWREST Arm Rest Padding
5170073 FT-REST Foot Rest
9010179   IQ/OQ Protocol
