Streamline® (E-series) G4 Class II Biological Safety Cabinet

SC2-_E_ G4

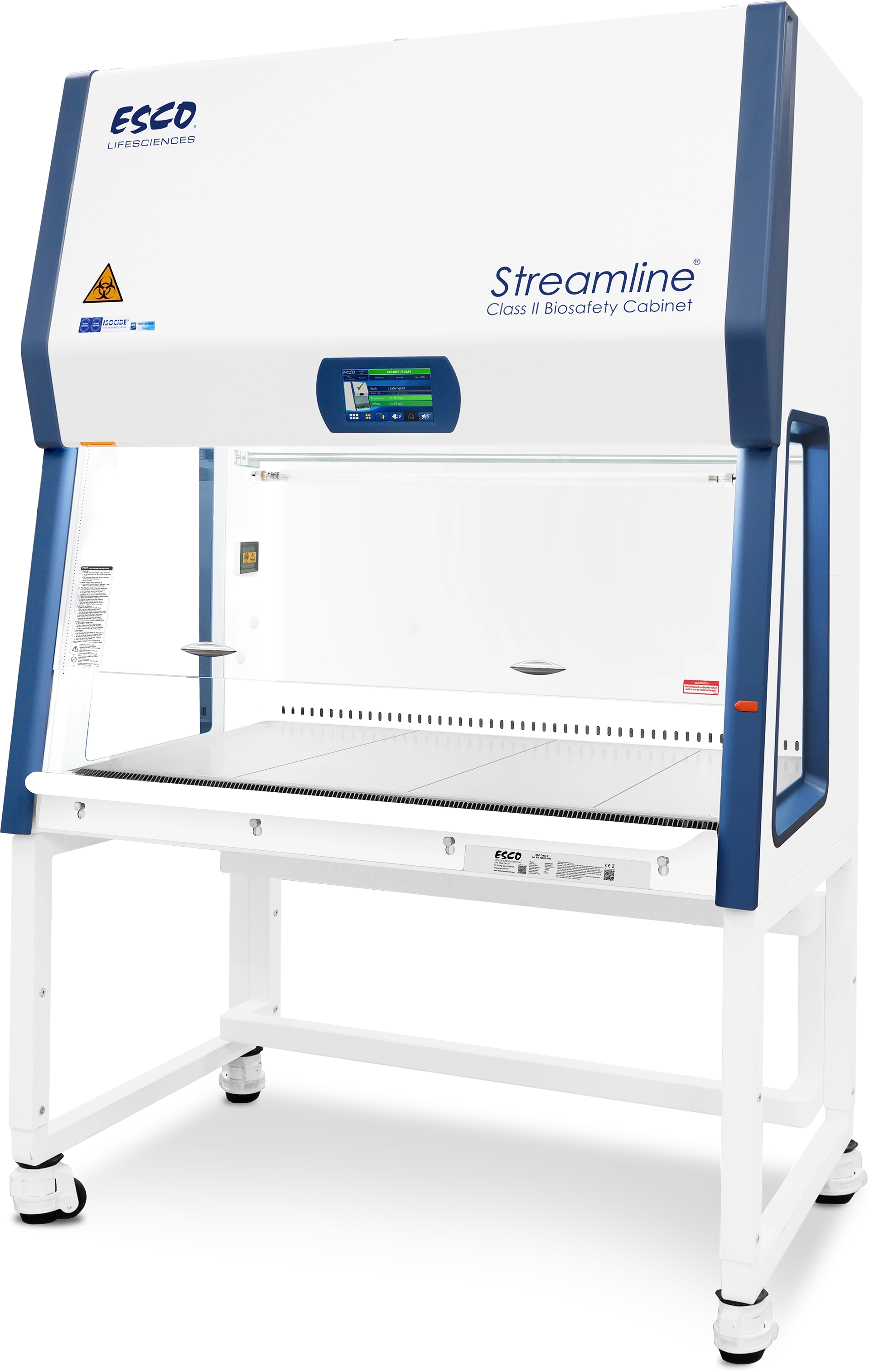

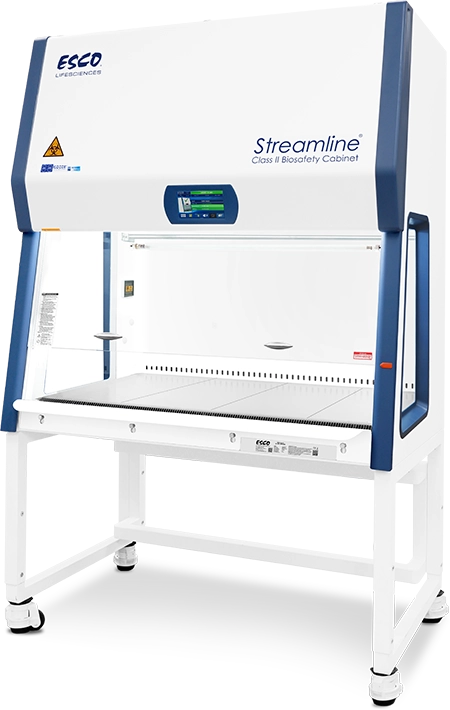

Streamline® (E-series) G4 Class II Biological Safety Cabinet

Introducing Streamline® (E-series) G4 Class II Biosafety Cabinet.

The new BSC with Centurion Touchscreen controller is EN12469-certified with an ergonomic work zone that is comprised of bright illumination using industry-leading dimmable LED combined with raised, durable, stainless-steel armrest.

The Streamline® (E-series) G4 incorporates compact size and advanced features, this biosafety cabinet offers an unparalleled level of convenience and safety, making it the ideal choice for laboratories and research facilities.

Features

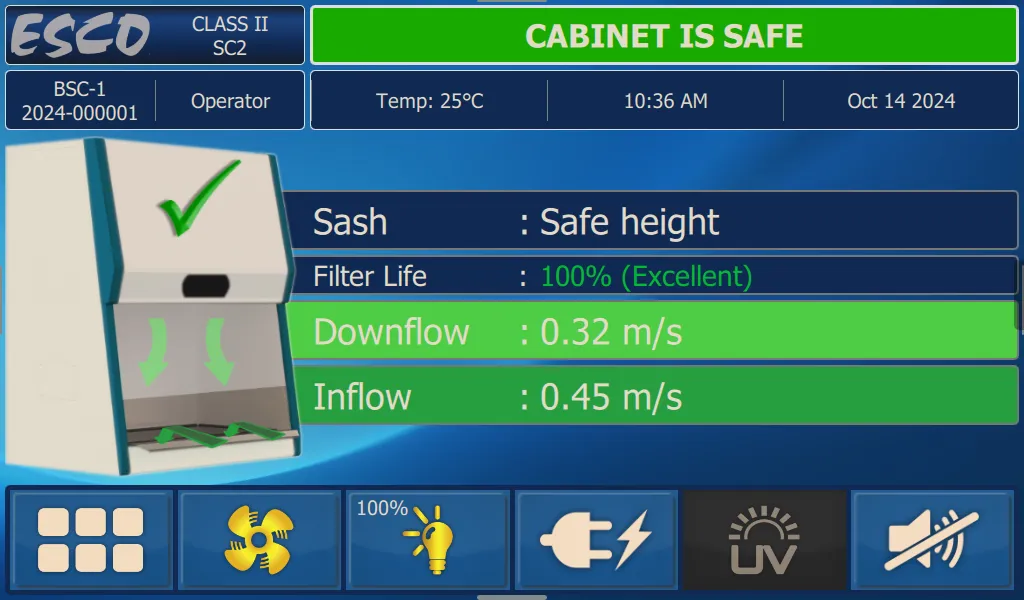

Centurion Touchscreen Controller

  • Intuitive, comprehensive, and easy-to-understand
  • Virtually comprehensible safety information and cabinet alarms via 3D BSC diagram
  • Defined details of alarm types with clear instructions for proper intervention
  • Centered and angled down for easy reach & viewing
  • Selectable Quickstart mode for fast operation

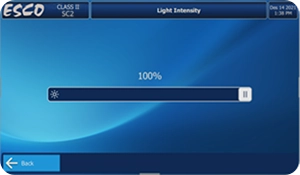

Dimmable LED

  • Adjustable work zone brightness
  • Ideal light intensity of 1000 lux
  • Saves energy and optimizes work comfort

Working Area

  • E-Series: multi-piece work tray is designed to accommodate autoclavable sizes, catering to user needs for sterilization and handling.

Tray support beams and holder

  • Support beams for less vibration and holder for easy drain pan cleaning

USB Port and Remote Modbus

  • USB port to access cabinet data log and BMS connectivity
  • Newly integrated Remote Modbus feature for users to securely access the cabinet remotely from external devices.

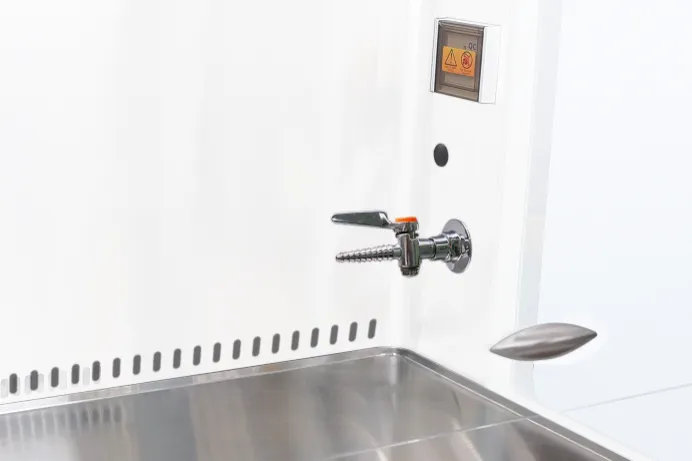

Cabinet Construction

  • E-Series: UV absorbing tempered glass with side capture zones and negative pressure to optimize containment efficiency

Advanced Filtration System

  • Creates ISO Class 3 work zone instead of industry-standard, ISO Class 5
  • Long filter life for lower operating cost, up to 10 years

*99.999% at 0.1 to 0.3 micron, ULPA as per IEST-RP-CC001.3 USA
*99.999% at MPPS, H14 as per EN 1822 EU

Isocide™ Antimicrobial Powder Coating

  • Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code Model Code Description
220-240VAC, 50/60 Hz (E-Series: Glass side walls, multi piece work tray)
2011571 SC2-4E1 G4 Streamline® G4 Class II Biological Safety Cabinet, 4ft/1.2m (230V, 50Hz)
2011573 SC2-6E1 G4 Streamline® G4 Class II Biological Safety Cabinet, 6ft/1.8m (230V, 50Hz)
2011572 SC2-4E3 G4 Streamline® G4 Class II Biological Safety Cabinet, 4ft/1.2m (230V, 60Hz)
2011574 SC2-6E3 G4 Streamline® G4 Class II Biological Safety Cabinet, 6ft/1.8m (230V, 60Hz)

Accessories

Item Code Model Code Description
5170255 UV-30A-L UV Lamp for 4ft, 5ft, 6ft Cabinets
IV Bars
5170231 IV-1215 IV Bar 1215 mm
5170501 IV-1825 IV Bar 1825 mm
Support Stands
5131341 STA-4A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 4ft cabinets
5131389 STA-6A0 Support Stand Telescoping with Leveling Feet and Castors (28” to 36”) for 6ft cabinets
Service Fixtures
5170410 SF-1G20 European Style Service Fixture with 20mm Thread Length - Gas
5170457 SF-1V20 European Style Service Fixture with 20mm Thread Length - Vacuum
5170502 SF-1A20 European Style Service Fixture with 20mm Thread Length - Air
5170503 SF-1N20 European Style Service Fixture with 20mm Thread Length - Nitrogen
5170458 SF-1W20 European Style Service Fixture with 20mm Thread Length - Water
5170504 SF-2U22 American Style Service Fixture with 22mm Thread Length - Universal
Exhaust Collars
5171249 ECO-SC2-4FT-EN G4 Thimble Exhaust Collar for SC2-4E_ G4
5171317 ECO-SC2/SC2-6FT-EN G4 Thimble Exhaust Collar for SC2-6E_ G4
5171387 ECO-W/VHP-OUT SC2-4 G4 Thimble Exhaust Collar with VHP OUT (1" Diameter) for SC2-4E_-G4
5171388 ECO-W/VHP-OUT SC2-6 G4 Thimble Exhaust Collar with VHP OUT (1" Diameter) for SC2-6E_-G4
Exhaust Accessories
5170129 B2-ABBV1 Anti-blowback Valve 10 inches (EG Material)
5170354 ABBV-10S Anti-blowback Valve 10 inches (Stainless Steel Material)
5170104 DAMPER Exhaust Damper
VHP IN Ports
5171323 FRONT DECON COVER W/ VHP IN PORT SC2-4E_ G4 Front Decon cover with VHP IN PORT for SC2-4E_-G4
5171327 FRONT DECON COVER W/ VHP IN PORT SC2-6E_ G4 Front Decon cover with VHP IN PORT for SC2-6E_-G4
VHP OUT Ports
5171324 TOP DECON COVER W/ VHP OUT PORT SC2-4E_ G4 Top Decon cover with VHP OUT PORT for SC2-4E_-G4
5171328 TOP DECON COVER W/ VHP OUT PORT SC2-6E_ G4 Top Decon cover with VHP OUT PORT for SC2-6E_-G4
Top Box VHP OUT Ports
5171389 TOP BOX W/ VHP-OUT SC2-4 G4 Top Box With VHP OUT (1" Diameter) for SC2-4E_-G4
5171301 TOP BOX W/ VHP-OUT SC2-6 G4 Top Box With VHP OUT (1" Diameter) for SC2-6E_-G4
Pre-Filters
5090062 PF-42 Pre-Filter, Paper catch (Black Foam only) for SC2-4E_-G4
5090061 PF-41 (x2) Pre-Filter, Paper catch (Black Foam only) for SC2-6E_-G4
Others
5175239 SOLENOID VALVE FITTING Solenoid Gas Valve
5170026 COPPER PIPING Copper Piping
5170127 MEWREST Arm Rest Padding
5170073 FT-REST Foot Rest
9010179   IQ/OQ Protocol
