Features
![]() | Tri-Wall Construction
|

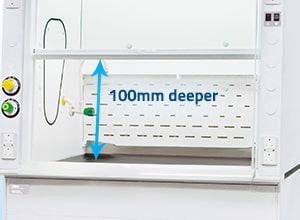

![]() | Generous Inner Work Depth
|
![]() | Sash Angled Front
|
![]() | Ceramic Worktop
|
![]() | Isocide™ Antimicrobial Powder Coating
|
Improving Lives Through Science
Ducted Fume Hood
› Products › Ducted Fume Hood › Frontier® Acela Mining

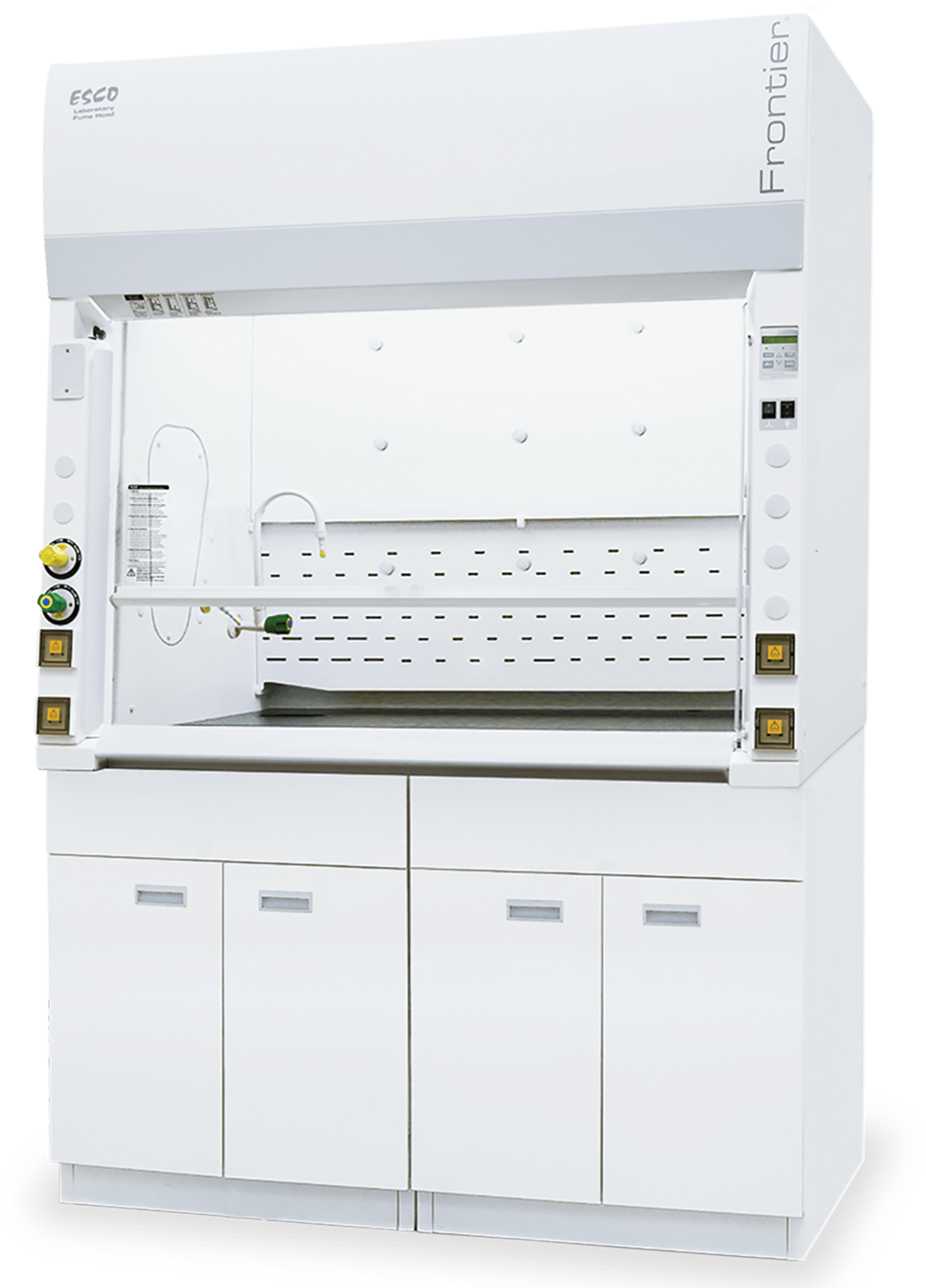

Esco Frontier® Acela™ Mining (EFA-M) is a ducted fume hood designed specifically for users in the mining industry. It has a 100mm deeper workzone to help contain chemical splashes and spills from highly corrosive chemicals.
Each EFA-M Fume Hood comes standard with:
*This cabinet requires an external blower (sold separately)
![]() | Tri-Wall Construction
|
![]() | Generous Inner Work Depth
|
![]() | Sash Angled Front
|
![]() | Ceramic Worktop
|
![]() | Isocide™ Antimicrobial Powder Coating
|
Item Code | Model Code | Description |
---|---|---|
EFA-M with Esco Resinate Plus Liner and Vertical Sash | ||
2090567 | EFA-4UMUVW-8 | Esco Frontier® Acela Fume Hood - M Series, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
2090573 | EFA-4UMUVW-9 | Esco Frontier® Acela Fume Hood - M Series, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
2090362 | EFA-5UMUVW-8 | Esco Frontier® Acela Fume Hood - M Series, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
2090574 | EFA-5UMUVW-9 | Esco Frontier® Acela Fume Hood - M Series, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
2090568 | EFA-6UMUVW-8 | Esco Frontier® Acela Fume Hood - M Series, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
2090575 | EFA-6UMUVW-9 | Esco Frontier® Acela Fume Hood - M Series, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
2090569 | EFA-8UMUVW-8 | Esco Frontier® Acela Fume Hood - M Series, 8ft/2.4m, 220-240 VAC, 50/60 Hz |
2090576 | EFA-8UMUVW-9 | Esco Frontier® Acela Fume Hood - M Series, 8ft/2.4m, 110-120 VAC, 50/60 Hz |
EFA with Esco Resinate Plus Liner and Combination Sash | ||
2090577 | EFA-4UMUCW-9 | Esco Frontier® Acela Fume Hood - M Series, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
2090570 | EFA-5UMUCW-8 | Esco Frontier® Acela Fume Hood - M Series, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
2090578 | EFA-5UMUCW-9 | Esco Frontier® Acela Fume Hood - M Series, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
2090571 | EFA-6UMUCW-8 | Esco Frontier® Acela Fume Hood - M Series, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
2090579 | EFA-6UMUCW-9 | Esco Frontier® Acela Fume Hood - M Series, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
Item Code | Model Code | Description |
---|---|---|
Service Fixture (Max of 6 add-ons, factory fitted) | ||
5170266 | SFA-EW | Service Fixture Set for Water |
5170408 | SFA-EHW | Service Fixture Set for Hot Water |
5170416 | SFA-EDI | Service Fixture Set for DI Water |
5170406 | SFA-EH | Service Fixture Set for Hydrogen |
5170265 | SFA-EG | Service Fixture Set for Gas |
5170306 | SFA-EV | Service Fixture Set for Vacuum |
5170313 | SFA-EN | Service Fixture Set for Nitrogen |
5170440 | SFA-EO | Service Fixture Set for Oxygen |
5170275 | SFA-EC | Service Fixture Set for Compressed Air |
5170433 | SFA-ECO2 | Service Fixture Set for CO2 |
5170274 | SFA-EA | Service Fixture Set for Argon |
Base Cabinet | ||
2090600 | EBA-4UMG-0 | EBA Base Cabinet for 4' Fume Hood, for EFA-M series |
2090601 | EBA-5UMG-0 | EBA Base Cabinet for 5' Fume Hood, for EFA-M series |
2090602 | EBA-6UMG-0 | EBA Base Cabinet for 6' Fume Hood, for EFA-M series |
2090603 | EBA-8UMG-0 | EBA Base Cabinet for 8' Fume Hood, for EFA-M series |
5170022 | VK-EBA | Vent Kit for EBA Base Cabinet (1 Required for 4' Base Cabinet and 2 for Other Sizes), Field Installed |
5170023 | FP-EBAD | Filler Panel Kit for EBA Base Cabinet, Set of 2 (Left and Right), Field Installed |
Distillation Grid | ||
5170135 | DG-4US | Distillation Grid Kit for EFA-4, SS304 |
5170136 | DG-5US | Distillation Grid Kit for EFA-5, SS304 |
5170137 | DG-6US | Distillation Grid Kit for EFA-6, SS304 |
5170138 | DG-8US | Distillation Grid Kit for EFA-8, SS304 |
Exhaust Blower | ||
1110105 | EQR/FC-FAN-PP025 | PP025 Exhaust Fan |
1110087 | EQR/FC-FAN-PP030 | PP030 Exhaust Fan |
Others | ||
5170359 | SIC-DC | Oval Ceramic Drip-Cup for Ceramic Worktop |
5070084 | SXL-EFA | Sentinel XL Airflow Monitor, Field Installed |
EO | Electrical outlet |
