A Ducted Fume Hood is a type of ventilation system that primarily functions to provide personnel protection against toxic fumes, vapors, and dust. This containment device is connected to a ducting where contaminants pass before being exhausted into the environment. Its secondary function includes protection against chemical spills, runaway reactions, and fires by acting as a physical barrier.
Esco Frontier® Ducted Fume hoods superior containment and performance comply with ASHRAE 110 and EN 14175 standards. These fume hoods are designed to have precisely tuned aerodynamics, total systems and design flexibility, aesthetics and ergonomics to provide outstanding user safety and convenience.
Must-have features to consider:
- Compliance to ASHRAE 110 and EN 14175 for superior fume containment
- Robust construction for withstanding chemicals even at high temperatures
- Basic rocker switches for hassle-free operation
- Variety of worktop configurations to accommodate different applications
- Offers a broad range of accessories and options
- Unique baffle design to prevent fume accumulation in workzone
- Equipped with safety features such as: sash stop limit and airflow monitoring system
- Ergonomic features such as sash sloping, internal lighting
- FiltraCheck™ free service to evaluate application and recommend the suitable ducted fume hood model
Rocker Switch has basic buttons for light and blower operation.

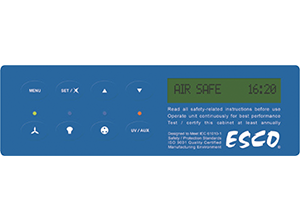

Sentinel™ Silver Microprocessor Controller has one-line LCD screen for display of airflow status and time. There are soft touch keys for fan, lamp, socket, and AUX. The cabinet will signal audible and visual alarms during unwanted events.
EFH
Frontier® Mono
Specifications:
- ASHRAE 110-2016 certified
- Single wall design
- Worktop and service fixtures are installed on the base cabinet
- No sash sloping
- Phenolic resin liner and baffle
- Available sizes: 4, 5 and 6 ft
EFD-A

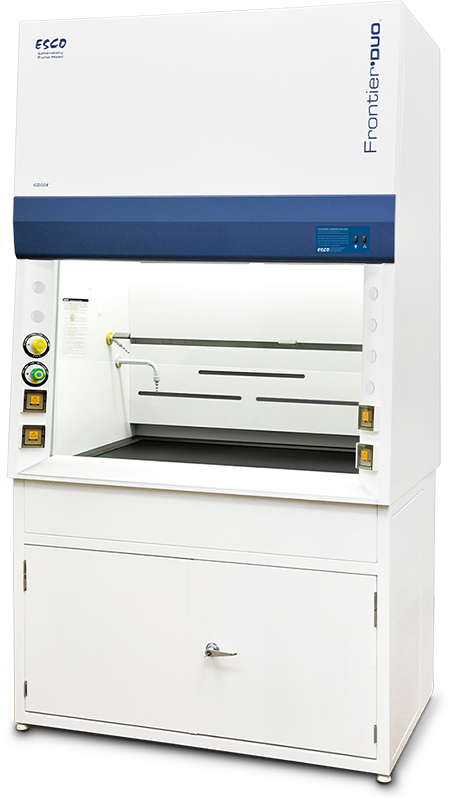

Frontier® Duo- A Series
Specifications:
- Dual-wall construction
- With black color phenolic resin as default worktop
- Has service fixtures
- Ergonomic 8° sloped front sash
- Available sizes: 4, 5, 6 and 8 ft
EFD-B

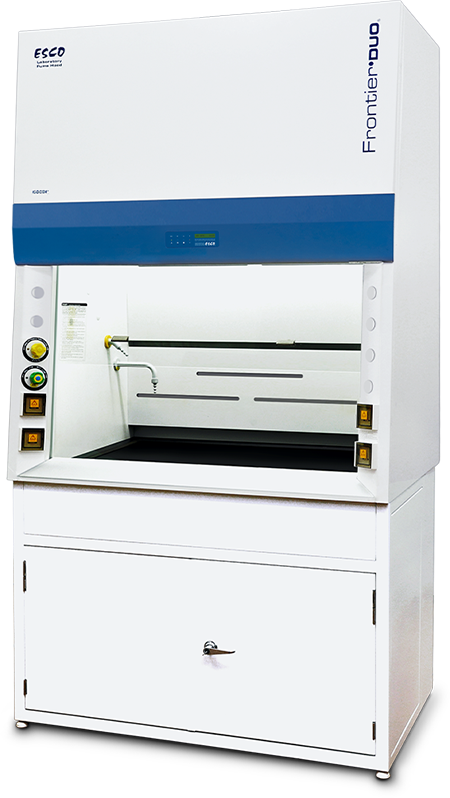

Frontier® Duo- B Series
Specifications:
- ASHRAE 110-2016 certified
- Microprocessor control system
- Dual-wall construction
- With black color phenolic resin as default worktop
- Has service fixtures
- Ergonomic 8° sloped front sash
- Available sizes: 4, 5, 6 and 8 ft

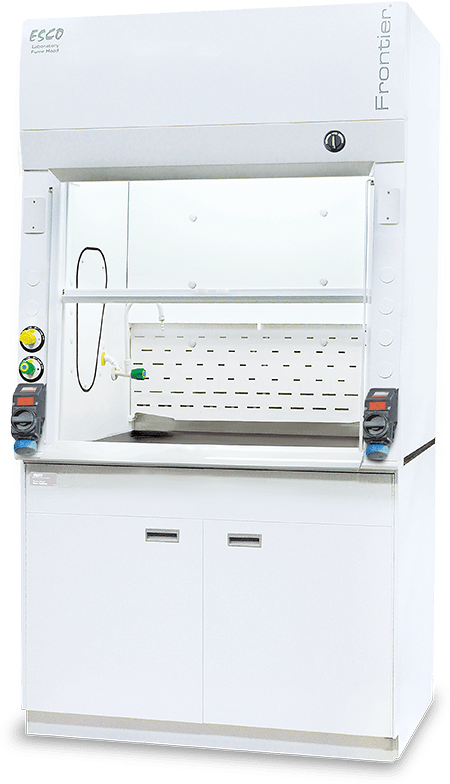

EFA

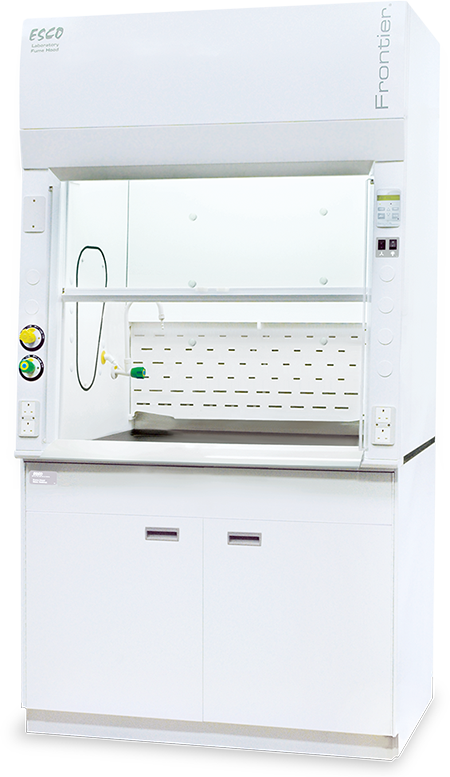

Frontier® Acela
Specifications:
- ASHRAE 110-2016 certified
- Tri-wall construction
- Low energy-consumption, high performance fume hood
- 5° sloped front sash design
- Superior containment at 0.3 m/s face velocity
- Available sizes: 4, 5, 6 and 8 ft
EFQ

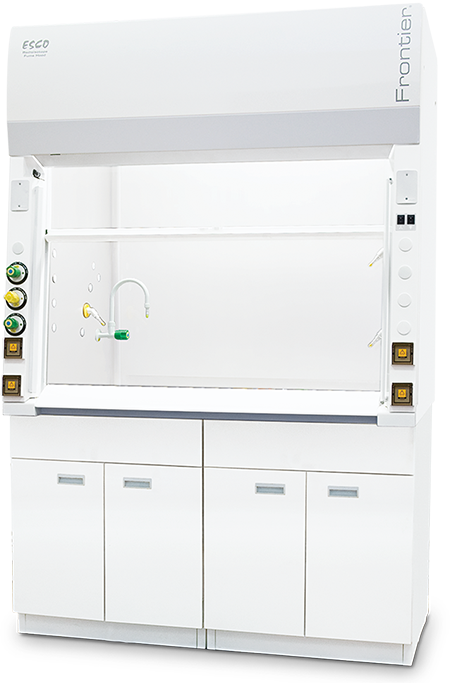

Frontier® Acid Digestion
Specifications:
- ASHRAE 110-2016 compliant
- Tri-wall construction
- Designed for acid-digestion applications (except perchloric acid)
- Built with u-PVC or PP internal surface has polycarbonate sash to prevent etching
- Available sizes: 4, 5, 6 and 8 ft
EFA-M

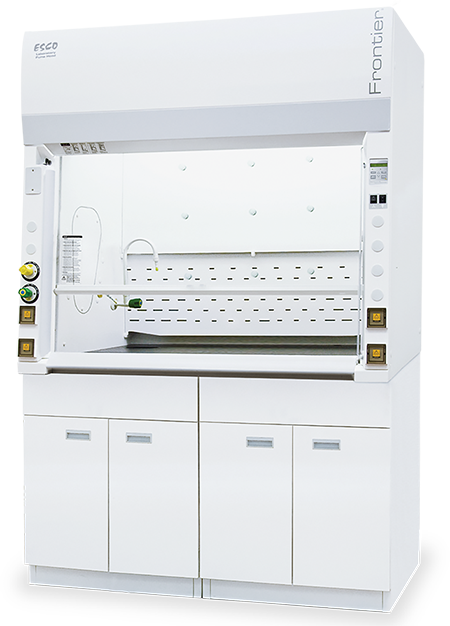

Frontier® Acela Mining
Specifications:
- ASHRAE 110-2016 compliant
- Tri-wall construction
- Provides the highest level of containment and protection against highly corrosive chemicals at high temperature
- With European-made ceramic worktop
- Available sizes: 4, 5, 6 and 8 ft
EFA-XP
Frontier® Acela XP
Specifications:
- Tri-wall construction
- Provides the highest level of containment and almost no possibility of sparks in the work zone
- Standard accessories include: Explosion proof light fixture, Explosion proof Electrical Socket Outlet, Explosion proof ON-OFF light switch, Explosion proof Junction Box
- Available sizes: 4, 5, 6 and 8 ft
EFP

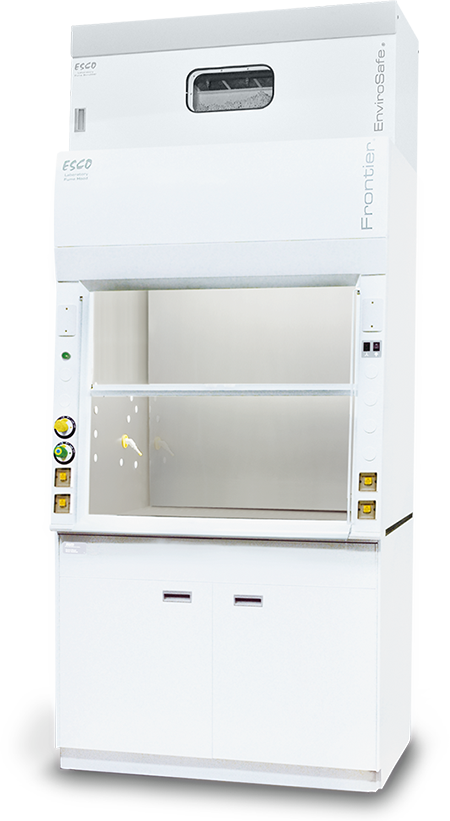

Frontier® Perchloric Acid
Specifications:
- ASHRAE 110-2016 compliant
- Tri-wall construction
- Ideal when handling hot perchloric acid and nitric acid
- Built with seamless stainless steel interior chamber
- Equipped with a wash down system
- Has a scrubber as a compulsory accessory
- Available sizes: 4, 5, 6 and 8 ft
EFF

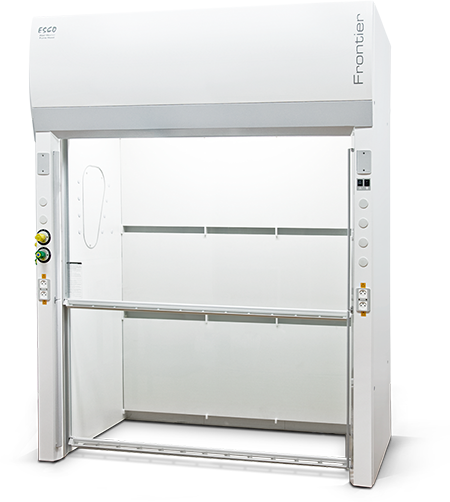

Frontier® Floor Mounted
Specifications:
- ASHRAE 110 compliant
- Tri-wall construction
- Designed to provide comfortable space when dealing with large apparatus and containers of hazardous materials.
- Large internal height
- Available sizes: 4, 5, 6 and 8 ft
EFI

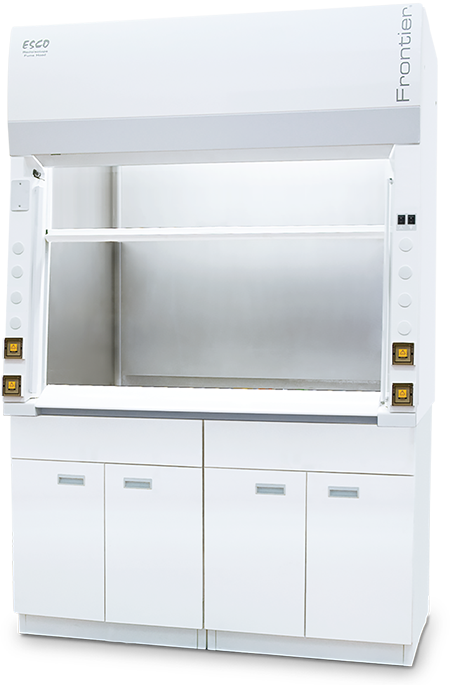

Frontier® Radioisotope
Specifications:
- ASHRAE 110-2016 compliant
- Designed for handling radioactive materials
- Full stainless-steel interior for easy cleaning and decontamination
- Available sizes: 4, 5, 6 and 8 ft
PPH

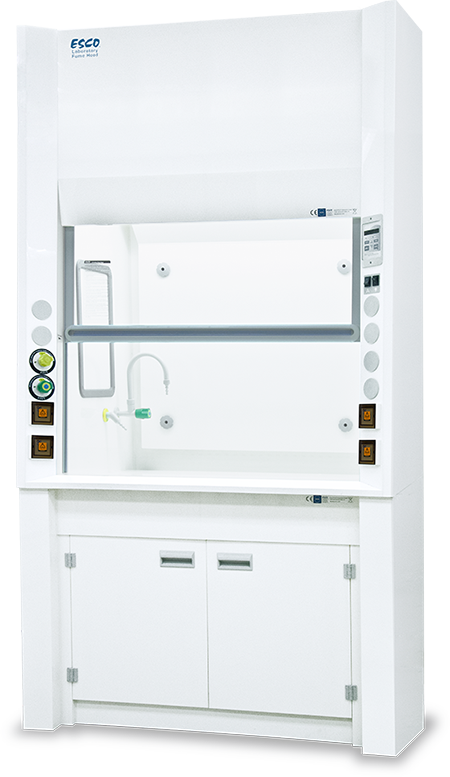

Frontier® PPH
Specifications:
- ASHRAE 110-2016 certified
- Highest level of protection and containment against highly corrosive acids
- Full polypropylene interior and exterior makes it metal free and suitable for trace metal analysis
- Available sizes: 4, 5, 6 and 8
· Chemical Transfer
· Dilution
· Mixing
· Buffer Preparation
· Applications with minimal heating
· Titration
· pH testing
· Dilution
· Mixing
· Buffer Preparation
· Applications with minimal heating
· Titration
· pH testing
The single, dual, tri-wall accounts for the ducted fume hood’s durability and capability to have service fixture on the external side walls of the fume hood. The more the number of walls and layers, the stronger the ducted fume hood is in terms of construction and ability to withstand chemicals.
EFH is the only single wall fume hood, that’s is why the base cabinet (EBC) is required since the worktop and service fixtures are connected there.
EFH is the only single wall fume hood, that’s is why the base cabinet (EBC) is required since the worktop and service fixtures are connected there.
Chemicals can be stored during an ongoing analysis but ducted fume hoods are not designed for permanent chemical storage. Items placed inside the fume hood can interfere with air flow and may cause contaminants to be drawn in.
Base cabinets are the appropriate chemical storage. Esco offers a wide range of storage solutions for general purposes, corrosive, and flammable substances.
Base cabinets are the appropriate chemical storage. Esco offers a wide range of storage solutions for general purposes, corrosive, and flammable substances.
Chemicals are exhausted out into the atmosphere untreated so fume hoods are inappropriate for waste disposal. Always follow proper chemical waste disposal protocols designated in your laboratory.
Face velocity is the measurement of speed at which air enters the ducted fume hood's opening. Face Velocity measurement is one of the tests recommended by ASHRAE 110 to check whether a fume hood is effective in containing chemical fumes. per ASHRAE 110, a properly working ducted fume hood should have a face velocity between 0.30-0.60 m/s.
The ASHRAE 110-2016 standard is a comprehensive method for evaluating the operator safety of fume hoods by determining quantitatively and repeatably how well the fume hood contains vapors released in the workzone. This American standard has three parts:
a. Airflow Visualization - Local and gross airflow visualization tests conducted to observe airflow patterns inside work chamber
b. Face Velocity Measurements - Face velocity and uniformity tested at 100% and design sash opening position
c. Tracer Gas Containment - uses Sulfur hexafluoride to test if there are leakage across the fume hood.
a. Airflow Visualization - Local and gross airflow visualization tests conducted to observe airflow patterns inside work chamber
b. Face Velocity Measurements - Face velocity and uniformity tested at 100% and design sash opening position
c. Tracer Gas Containment - uses Sulfur hexafluoride to test if there are leakage across the fume hood.
EN 14175 is a harmonized European standard which supercedes the former national standards of Germany, the UK and France. A key element of the EN 14175, which is not present in the American ASHRAE 110 standard, is the robustness test, which simulates airflow disturbance in front of the hood.
a. Location
Location impacts the nature and extent of external airflow disturbances which may affect a ducted fume hood's performance. It is advisable to have a site assessment before purchasing a ducted fume hood.
b. Application
The types of chemicals, quantity, temperature and nature of handling are important factors to consider. There is a wide range of ducted fume hood models, each designed to handle a specific type of chemical and application.
Location impacts the nature and extent of external airflow disturbances which may affect a ducted fume hood's performance. It is advisable to have a site assessment before purchasing a ducted fume hood.
b. Application
The types of chemicals, quantity, temperature and nature of handling are important factors to consider. There is a wide range of ducted fume hood models, each designed to handle a specific type of chemical and application.
a. Sash Stop
This safety feature limits sash movement beyond 457 mm (18") to encourage users to work at safe levels. When raised above said height, the sash will automatically and gently fall back to safe levels through Esco's Creep Down Mechanism. This feature can only be disabled by a key, which permits Laboratory Managers or Safety Officers to restrict hood operation.
b. Airflow Monitor
Esco's Sentinel XL Airflow monitor alarm is an optional accessory that accurately monitors facev elocity and generates an alarm when inflow decreases to unsafe levels. This also has a sash alarm that activates when the sash is not in the recommended height level.
This safety feature limits sash movement beyond 457 mm (18") to encourage users to work at safe levels. When raised above said height, the sash will automatically and gently fall back to safe levels through Esco's Creep Down Mechanism. This feature can only be disabled by a key, which permits Laboratory Managers or Safety Officers to restrict hood operation.
b. Airflow Monitor
Esco's Sentinel XL Airflow monitor alarm is an optional accessory that accurately monitors facev elocity and generates an alarm when inflow decreases to unsafe levels. This also has a sash alarm that activates when the sash is not in the recommended height level.
Filtracheck™ is a trademark service provided by Esco. Customers who intend to purchase a fume hood but are unsure whether the cabinet is suitable for their application, can fill up the FiltraCheck™ form. Customers will receive an email with the model recommendation. Depending on the type of chemicals used, the document may also contain a list of procedures, warnings, etc. that will help in ensuring a safer laboratory working environment.
