Features

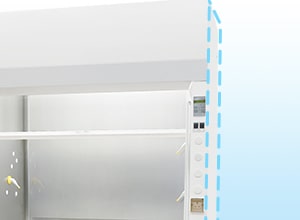

 | Tri-Wall Construction
|

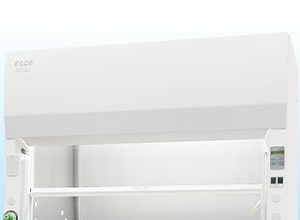

 | Dedicated wash down system
|
 | Stainless Steel Internal Chamber
|
 | Isocide™ Antimicrobial Powder Coating
|
EFP
Frontier® Perchloric Acid

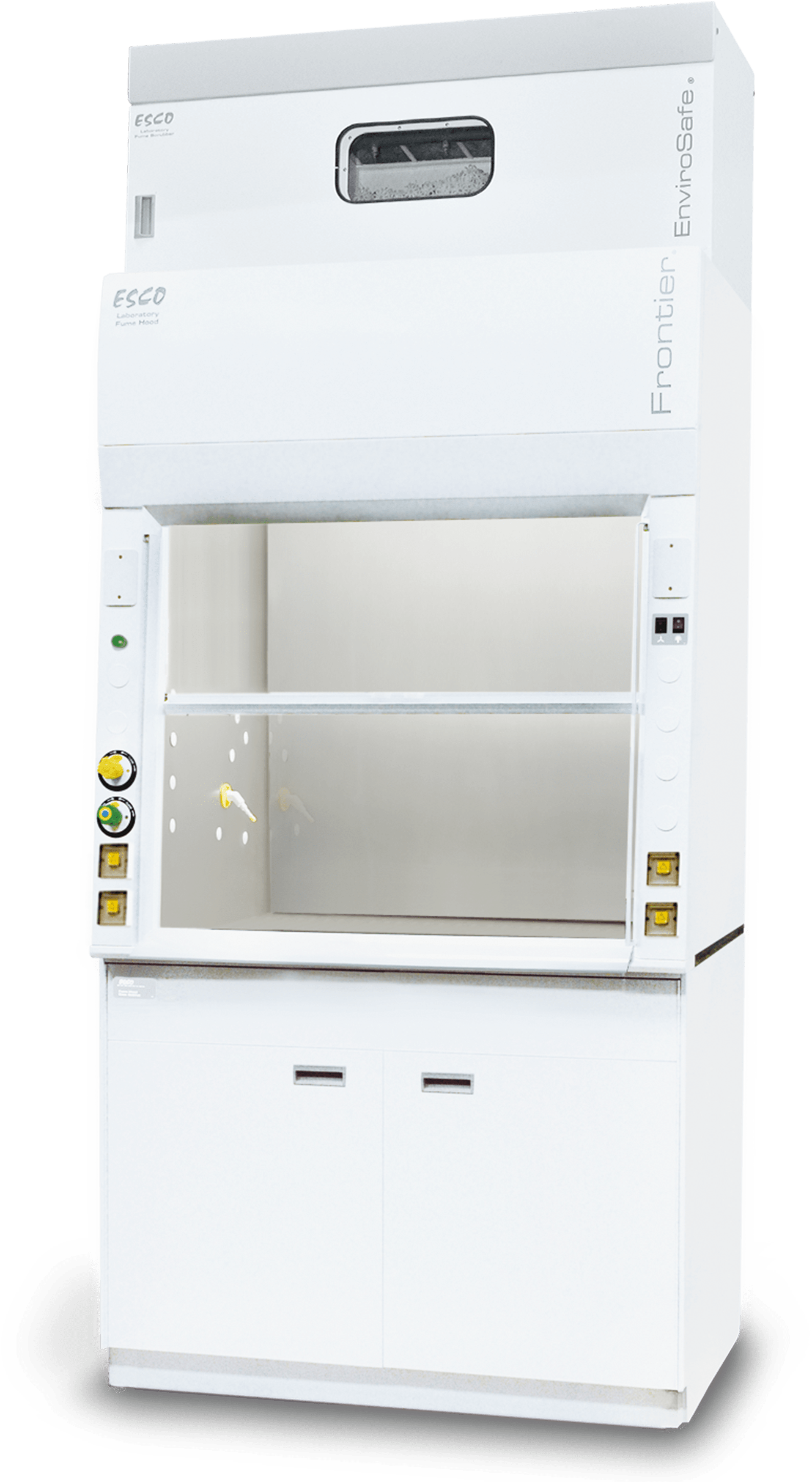

Esco Frontier® Perchloric Fume Hood (EFP) is a ducted fume hood designed for routine handling of hot perchloric acid and hot nitric acid. However, it is not advisable for applications involving sulphuric acid, acetic acid, organic solvents or any combustible materials.
When heated, perchloric acid vaporizes and condenses to form metallic perchlorates on hood, duct, and fan components. In addition to being highly corrosive, condensed vapors can react with hood gaskets, greaser, and collected materials to form explosive perchlorate salts.
EFP has a built-in wash down system that removes salts that may have accumulated in the hood’s corners and baffle system through a series of water sprays. For added safety, Esco Fume scrubber is a required accessory used to prevent the formation of perchlorate salts in the hood’s exhaust system.
Each EFP Fume Hood comes standard with:
- 1 x Water Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Gas Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 1 x Washdown Enhanz™ Remote Controlled Fixture Plumbed to the Top
- 4 x Single Electrical Outlet with Splash Proof Cover

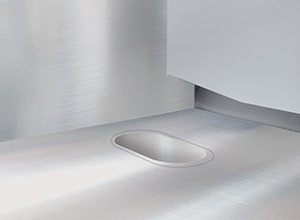

- Smooth Single Piece SS Worksurface with Drainage Point
- Piping and Sprayer for Wash Down System
*This cabinet requires an external blower (sold separately)
Models
| Item Code | Model Code | Description |
|---|---|---|
| EFP with SS 304 Liner and Vertical Sash | ||
| 2090198 | EFP-4UD4VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
| 2090526 | EFP-4UD4VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
| 2090265 | EFP-5UD4VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
| 2090527 | EFP-5UD4VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
| 2090214 | EFP-6UD4VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
| 2090528 | EFP-6UD4VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
| 2090316 | EFP-8UD4VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz |
| 2090529 | EFP-8UD4VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz |
| EFP with SS 304 Liner and Combination Sash | ||
| 2090073 | EFP-4UD4CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
| 2090303 | EFP-4UD4CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
| 2090074 | EFP-5UD4CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
| 2090627 | EFP-5UD4CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
| 2090039 | EFP-6UD4CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
| 2090629 | EFP-6UD4CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
| EFP with SS 316 Liner and Vertical Sash | ||
| 2090525 | EFP-4UD6VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
| 2090530 | EFP-4UD6VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
| 2090072 | EFP-5UD6VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
| 2090531 | EFP-5UD6VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
| 2090077 | EFP-6UD6VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
| 2090532 | EFP-6UD6VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
| 2090079 | EFP-8UD6VW-8 | Esco Frontier® Perchloric Acid Fume Hood, 8ft/2.4m, 220-240 VAC, 50/60 Hz |
| 2090533 | EFP-8UD6VW-9 | Esco Frontier® Perchloric Acid Fume Hood, 8ft/2.4m, 110-120 VAC, 50/60 Hz |
| EFP with SS 316 Liner and Combination Sash | ||
| 2090076 | EFP-4UD6CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 220-240 VAC, 50/60 Hz |
| 2090626 | EFP-4UD6CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 4ft/1.2m, 110-120 VAC, 50/60 Hz |
| 2090075 | EFP-5UD6CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 220-240 VAC, 50/60 Hz |
| 2090628 | EFP-5UD6CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 5ft/1.5m, 110-120 VAC, 50/60 Hz |
| 2090041 | EFP-6UD6CW-8 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 220-240 VAC, 50/60 Hz |
| 2090630 | EFP-6UD6CW-9 | Esco Frontier® Perchloric Acid Fume Hood, 6ft/1.8m, 110-120 VAC, 50/60 Hz |
Accessories
| Item Code | Model Code | Description |
|---|---|---|
| Service Fixture (Max of 6 add-ons, factory fitted) | ||
| 5170266 | SFA-EW | Service Fixture Set for Water |
| 5170408 | SFA-EHW | Service Fixture Set for Hot Water |
| 5170416 | SFA-EDI | Service Fixture Set for DI Water |
| 5170406 | SFA-EH | Service Fixture Set for Hydrogen |
| 5170265 | SFA-EG | Service Fixture Set for Gas |
| 5170306 | SFA-EV | Service Fixture Set for Vacuum |
| 5170313 | SFA-EN | Service Fixture Set for Nitrogen |
| 5170440 | SFA-EO | Service Fixture Set for Oxygen |
| 5170275 | SFA-EC | Service Fixture Set for Compressed Air |
| 5170433 | SFA-ECO2 | Service Fixture Set for CO2 |
| 5170274 | SFA-EA | Service Fixture Set for Argon |
| Base Cabinet | ||
| 2090153 | EBA-4UDG-0 | EBA Base Cabinet for 4' Fume Hood |
| 2090157 | EBA-5UDG-0 | EBA Base Cabinet for 5' Fume Hood |
| 2090161 | EBA-6UDG-0 | EBA Base Cabinet for 6' Fume Hood |
| 2090163 | EBA-8UDG-0 | EBA Base Cabinet for 8' Fume Hood |
| 5170022 | VK-EBA | Vent Kit for EBA Base Cabinet (1 Required for 4' Base Cabinet and 2 for Other Sizes), Field Installed |
| 5170023 | FP-EBAD | Filler Panel Kit for EBA Base Cabinet, Set of 2 (Left and Right), Field Installed |
| Flammable and Corrosive Base Cabinets (Justrite) | ||
| 2090611 | 884820 | Flammable Storage Cabinet, 48" (Yellow, Self-Close) with Lock & Key, for EFA-4 |
| 2090612 | 8849022 | Corrosive Storage Cabinet, 48" (Blue) with Lock & Key, for EFA-4 |
| 2090613 | 883020 | Flammable Storage Cabinet, 2x30" (Yellow, Self-Close) with Lock & Key, for EFA-5 |
| 2090614 | 8831022 | Corrosive Storage Cabinet, 2x30" (Blue) with Lock & Key, for EFA-5 |
| 2090615 | 883620 | Flammable Storage Cabinet, 2x36" (Yellow, Self-Close) with Lock & Key, for EFA-6 |
| 2090616 | 8837022 | Corrosive Storage Cabinet, 2x36" (Blue) with Lock & Key, for EFA-6 |
| Support Stand with Levelling Feet | ||
| 5130088 | ASL-4B0 | Support Stand with Leveling Feet (Height 35.6”) for EFA-4 |
| 5130089 | ASL-5B0 | Support Stand with Leveling Feet (Height 35.6”) for EFA-5 |
| 5130090 | ASL-6B0 | Support Stand with Leveling Feet (Height 35.6”) for EFA-6 |
| 5130094 | ASL-8B0 | Support Stand with Leveling Feet (Height 35.6”) for EFA-8 |
| Exhaust Blower | ||
| 1110105 | EQR/FC-FAN-PP025 | PP025 Exhaust Fan |
| 1110087 | EQR/FC-FAN-PP030 | PP030 Exhaust Fan |
| Others | ||
| 5170629 | BIBO-FILTER | BIBO Filter for Fume Hoods |
| 5070084 | SXL-EFA | Sentinel XL Airflow Monitor, Field Installed |
| EO | Electrical outlet | |
Catalogs and Brochures
Frontier® Ducted Fume Hood Combined Catalog
Esco Ducted Fume Hood Tri-fold Brochure
Exhaust Blower Brochure
Sentinel XL Airflow Monitor Brochure
Esco Fume Scrubber
