A laminar flow cabinet keeps a controlled work surface for applications requiring a sterile work space whereas contaminant access is being prevented by a constant filtered airflow across the surface.
Esco's laminar flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for use in electronics assembly, plant tissue culture, culture media preparation, and other non-hazardous applications that need sterile environment.
Must-have features to consider:
- Low power consumption
- Low noise level
- Equipped with an energy-efficient motor/blower
- Cost-effective ULPA filter (ISO Class 3 work zone) with >99.999% efficiency at 0.1-0.3 µm which is 10x better compared to HEPA filter
- Comfortable lighting and legroom
- Intuitive and easy-to-use microprocessor controller
- Stable and self-compensating airflow
Horizontal Laminar Flow Cabinet provides a sterile work zone through a purified air that travels in a horizontal, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet.
Applications:
- Plant tissue culture
- Media plate preparation
- Electronics inspection
- Medical device assembly
Vertical Laminar Flow Cabinet provides sample protection as purified air travels across the working zone of the cabinet in a vertical, unidirectional stream and leaves the main work chamber across the entire open front of the cabinet. Most vertical laminar flow benches also have perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
Applications:
- Microbiology (non-pathogenic)
- Forensics
- Sterile product compounding

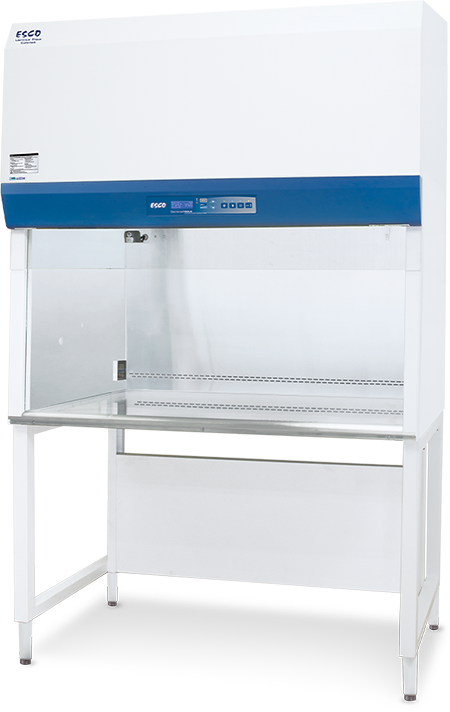

LVS-_AG-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 52.4 dBA
- Stainless steel side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, 6ft

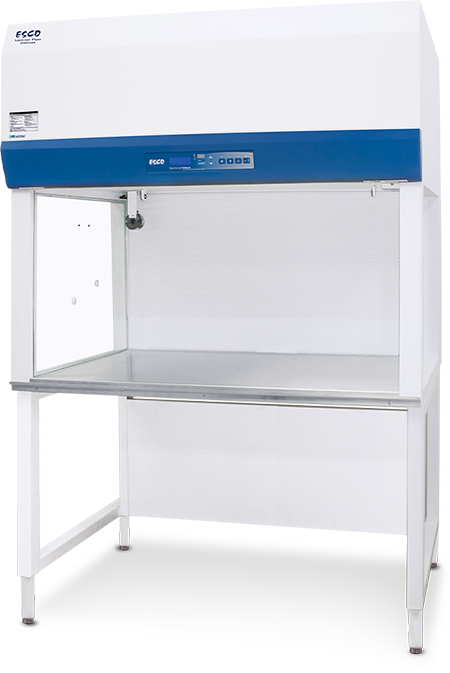

LHG-_BG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Glass Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Glass side walls
- Fixed Sash
- Internal height: 2.50 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6ft

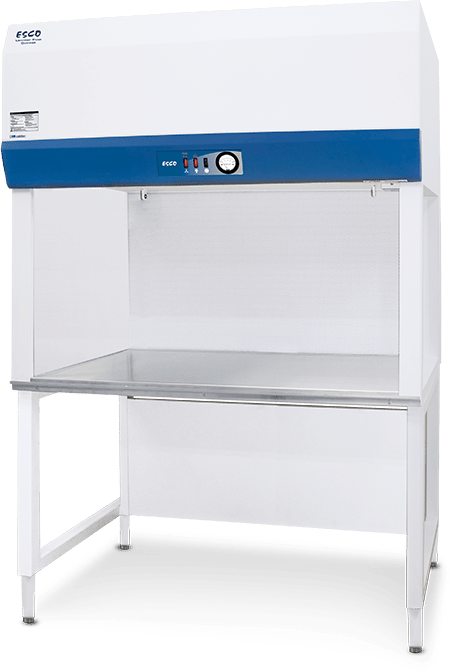

LHS-_BS-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet – Stainless Steel Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Stainless steel side walls
- Fixed Sash
- Internal height: 2.5 ft
- Available sizes: 3 ft, 4 ft, 5 ft, 6 ft and 12 ft
Only available in USA

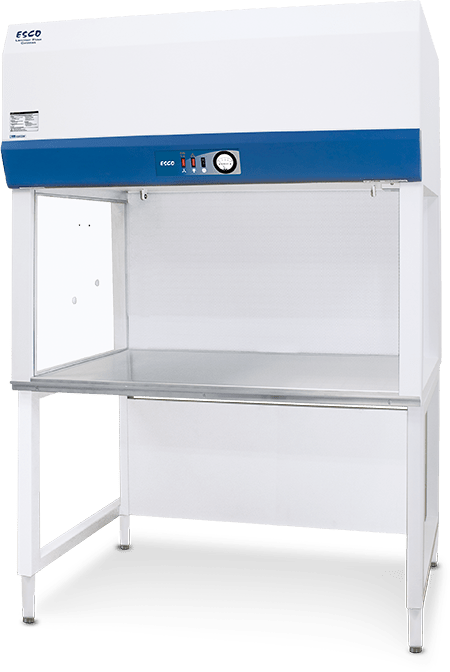

LHG-_BS-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Glass Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Glass side walls
- Fixed Sash
- Internal height: 2.5 ft
- Available sizes: 3 ft, 4 ft, 5 ft, 6 ft
Only available in USA

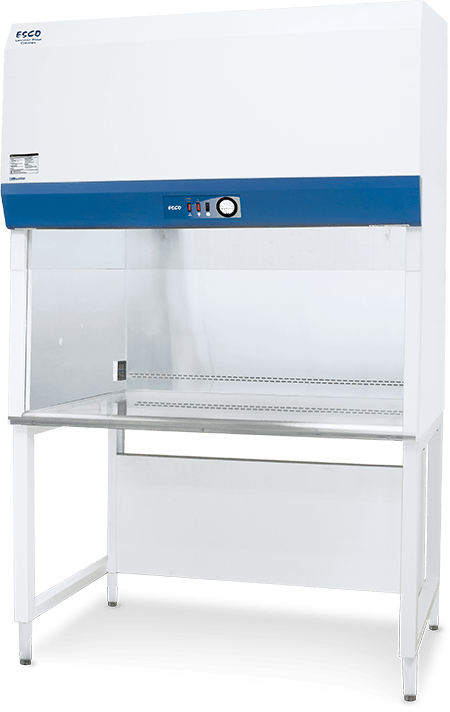

LVS-_CS-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet – Stainless Steel Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Stainless steel side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 4 ft, 5 ft, 6 ft and 8 ft
Only available in USA
LVS-_AS-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet – Stainless Steel Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Stainless steel side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, 6 ft and 12 ft
Only available in USA

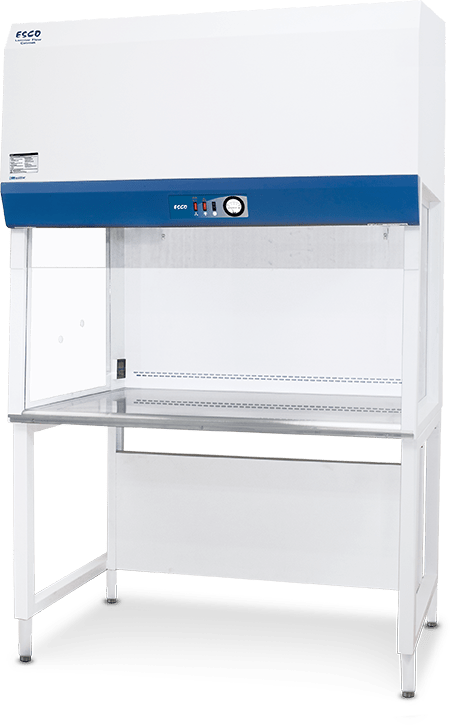

LVG-_AS-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Glass Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Glass side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, 6 ft
Only available in USA
ACB-_E_
OptiMair™ Vertical Laminar Flow Cabinet
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- Stainless Steel side walls
- Sliding Sash
- Internal height: 2 ft
- Available sizes: 4 ft and 6 ft
LHG-4DS-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet for Plant Tissue Culture
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Glass side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 4 ft
LHG-_CG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Glass Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Glass side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 3 ft, 4 ft, and 6ft
LVS-_CG-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 52.4 dBA
- Stainless steel side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 4 ft, 6 ft, and 8 ft
LHG-_AG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Glass Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Glass side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6ft
LHS-_CG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Stainless steel side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 4 ft, 6ft, and 8 ft
LHS-_BG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Stainless steel side walls
- Fixed Sash
- Internal height: 2.50 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6ft

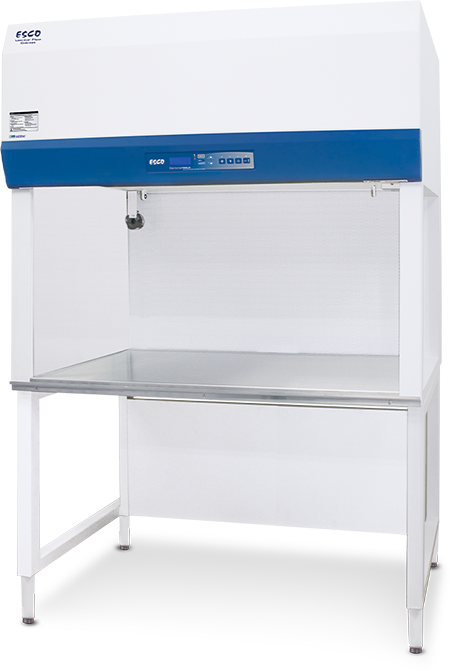

LHS-_AG-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet - Stainless Steel Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Stainless steel side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft and 6ft
LVG-_CG-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Glass Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 55.8 dBA
- Glass side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 4 ft, 6ft, and 8 ft

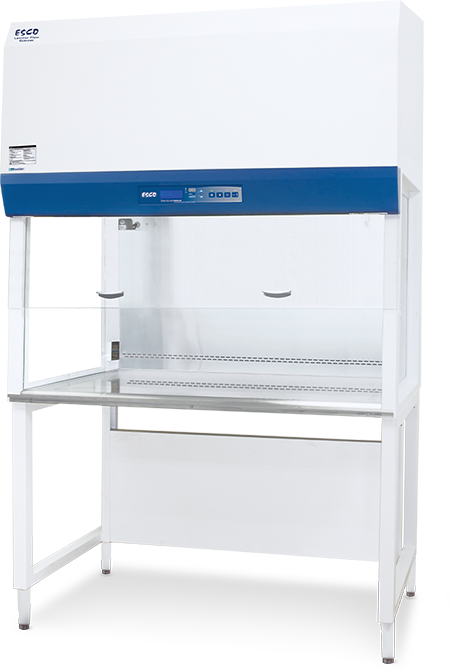

LVG-_AG-S_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Glass Side Wall, Sliding Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 52.4 dBA
- Glass side walls
- Sliding Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6 ft

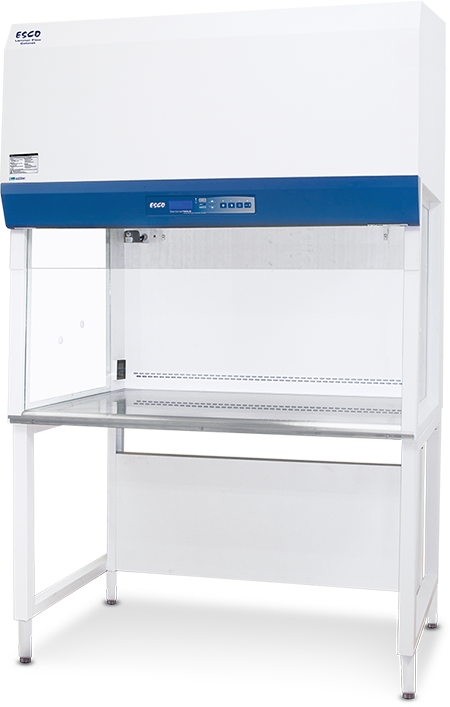

LVG-_AG-F_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Glass Side Wall, Fixed Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 52.4 dBA
- Glass side walls
- Fixed Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6 ft

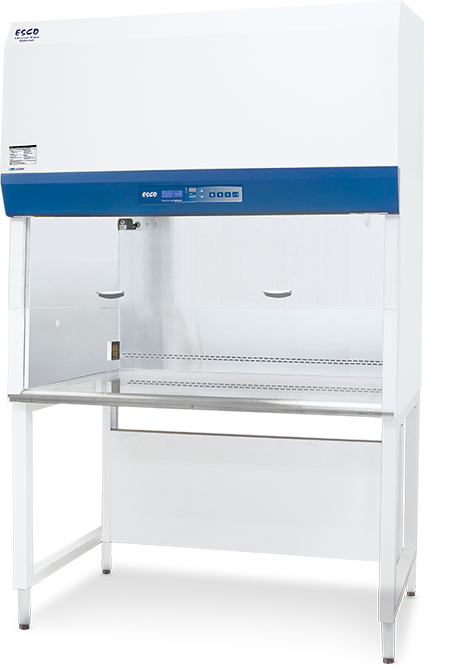

LVS-_AG-S_
Airstream® Gen 3 Vertical Laminar Flow Cabinet - Stainless Steel Side Wall, Sliding Sash
Specifications:
- ULPA Filter
- ISO Class 3 work zone
- DC ECM blower for up to 70% energy savings
- Low noise at 52.4 dBA
- Stainless steel side walls
- Sliding Sash
- Internal height: 2 ft
- Available sizes: 3 ft, 4 ft, 5 ft, and 6 ft
LHS-_CS-F_
Airstream® Gen 3 Horizontal Laminar Flow Cabinet – Stainless Steel Side Wall, Simple Switch
Specifications:
- Simple Switches, Manually adjustable UV timer
- Stainless steel side walls
- Fixed Sash
- Internal height: 3 ft
- Available sizes: 4 ft, 5 ft, 6 ft and 8 ft
Only available in USA
A laminar flow cabinet that is also known as a laminar clean bench, provides a sterile working environment for samples and work processes such as media plate preparation. It should not be used when working with infectious materials as it doesn't give users protection.
In general, laminar flow cabinets should be certified at least annually. Some institutions require a more frequent recertification schedule. It should also be recertified when filters are changed.
Yes. The laminar flow cabinet is equipped with an airflow sensor that monitors airflow speed and triggers alarm when failure arises.
A vertical laminar flow cabinet is recommended if there is a need to put large objects/equipment inside the working area, since there is no blocking of the airflow, while a horizontal laminar flow cabinet is recommended if samples are sensitive since the airflow will not directly blow to the samples.
UV light is used to sterilize the working area before and after procedures are performed.
It is recommended to stop working. If the problem is not showing in the controller display e.g. airflow failure, contact your local Esco representative to determine the root cause.
The pre-filter is made of polyester which is not washable.
The laminar flow cabinet's UV timer only allows the user to set at a maximum of 18 hours for each cycle. If the user doesn’t use the timer, there is no problem with letting the UV on for more than 24 hours continuously.
Esco laminar flow cabinet is equipped with a pre-filter and an Ultra Low Particulate Air (ULPA) filter, with an efficiency of 99.999% at between 0.1 to 0.3 microns which is 10x better than the usual HEPA filter.
The sliding sash feature is designed for Airstream® Gen 3 vertical laminar flow cabinets, which are available in models of 4, 5, and 6 feet. OptiMair™ laminar flow cabinets also come equipped with a standard built-in sliding sash. However, horizontal laminar flow cabinets are not suitable for a sliding sash feature due to safety concerns for both the user and the samples.
Esco recommends cleaning the work-zone of the laminar flow cabinet with an appropriate disinfectant (70% Isopropyl alcohol solution) and clean cloth daily. The user should not use strong disinfectants such as bleach to clean the stainless steel surfaces.
Standard support stands include: levelling feet (SAL), castor wheels (SPC), telescoping with castor (STC), and telescoping with levelling feet (SAL).
OptiMair™ (ACB-E) is designed with an ebm-papst® centrifugal motor fan that can only reach 0.3 m/s (60 fpm), while Airstream® Gen 3 uses a DC ECM blower which has a more advanced motor efficiency.
The estimated shelf life of HEPA or ULPA filters is up to 10 years when stored properly.
Filters should be kept in their original packaging and should not be exposed to dampness, excessive heat, cold or rapidly changing temperatures. These filters can tolerate up to 95% humidity; anything higher can cause the filter media to block and fail.
