Features
 | High-Quality Construction
|
 | Quiet Operation
|
 | ULPA Filter
|
 | Energy Efficient
|
 | Isocide™ Antimicrobial Powder Coating
|

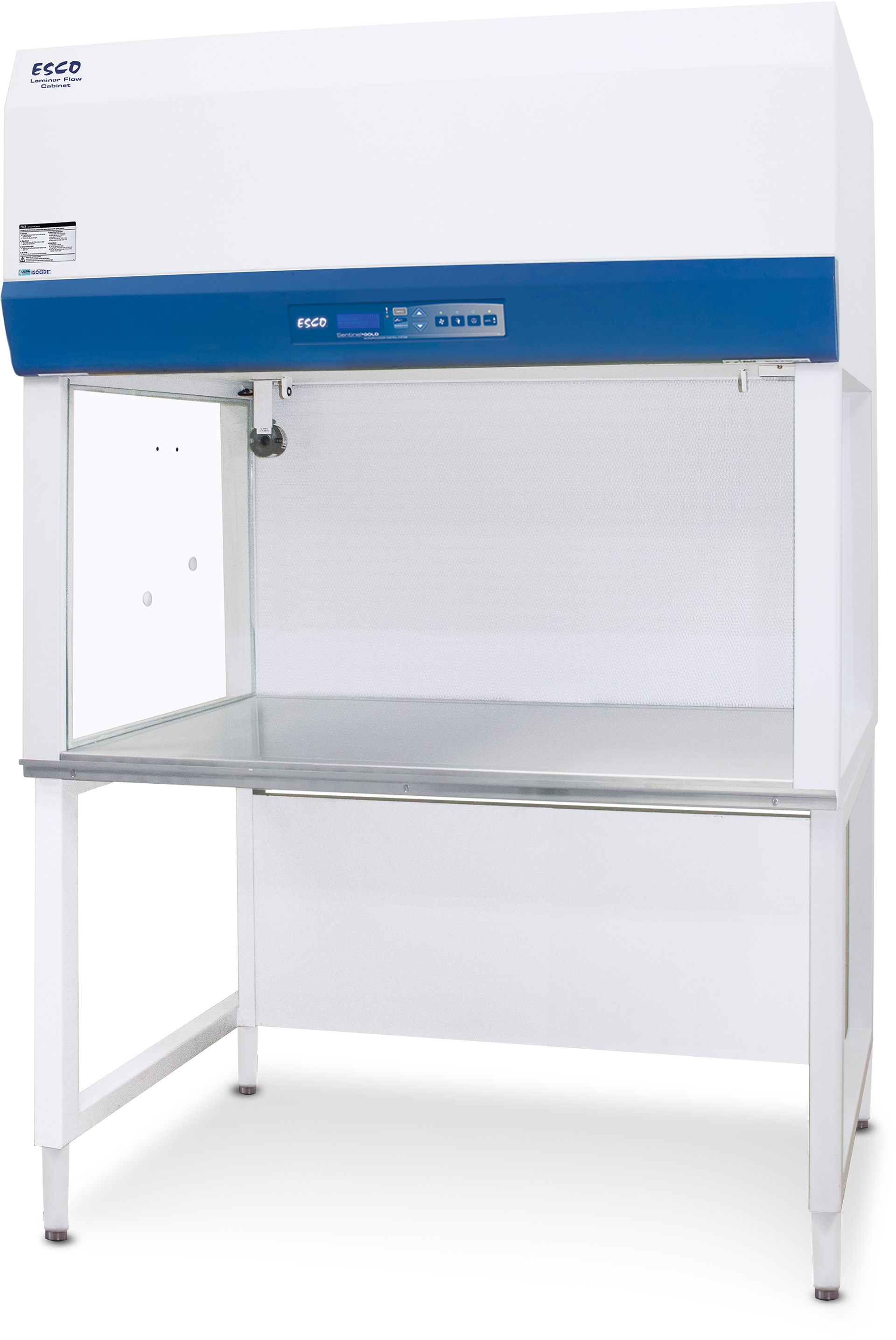

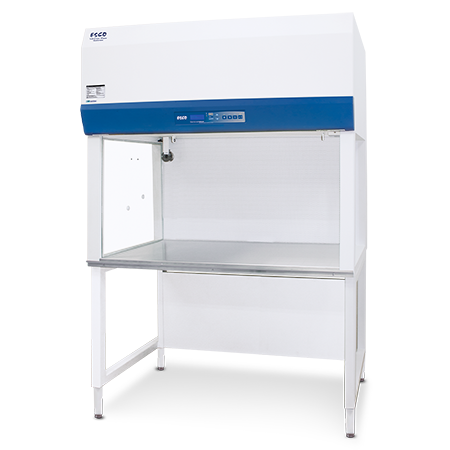

LHG-F

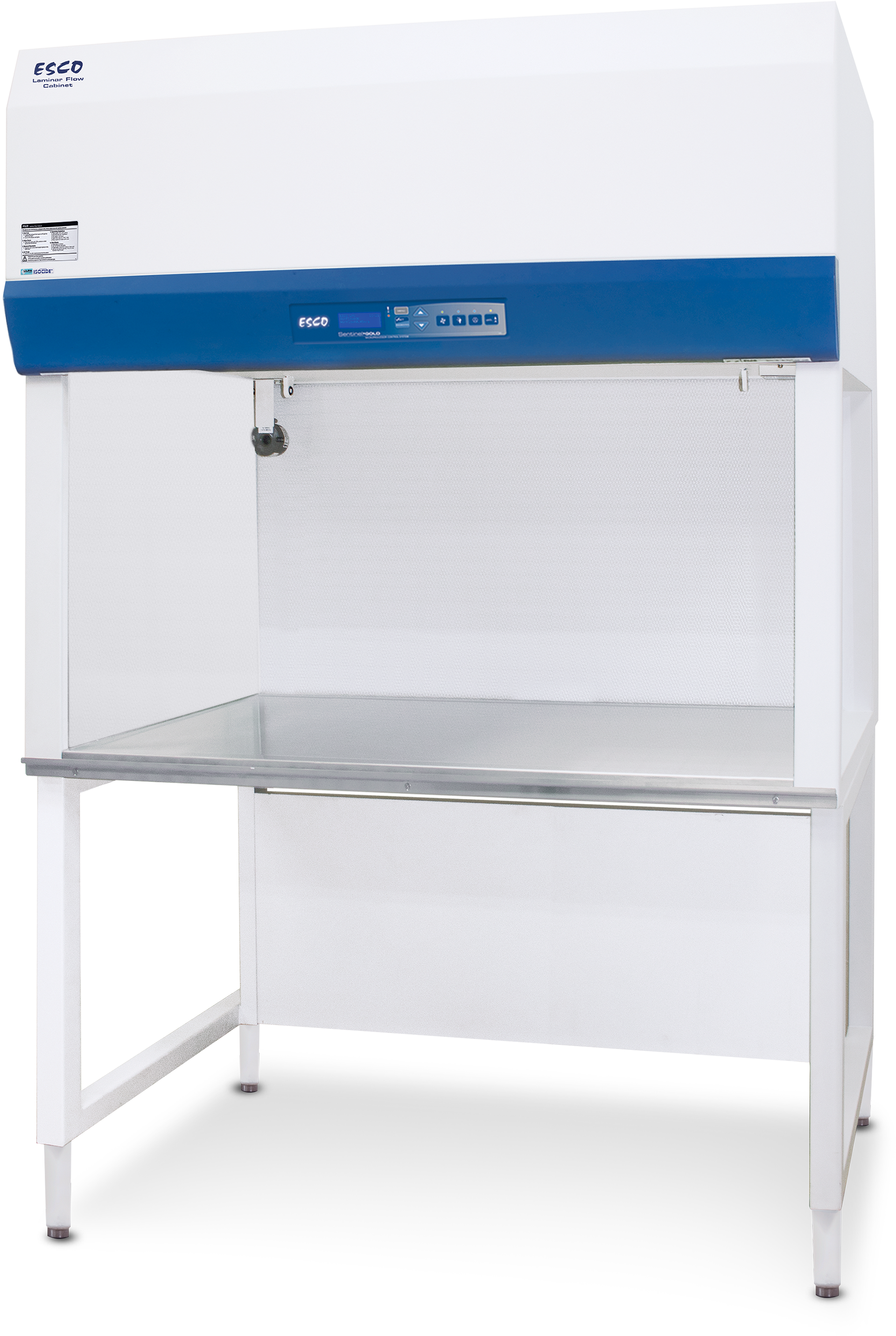

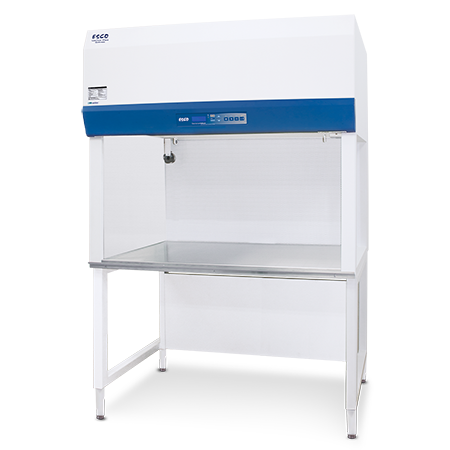

LHS-F

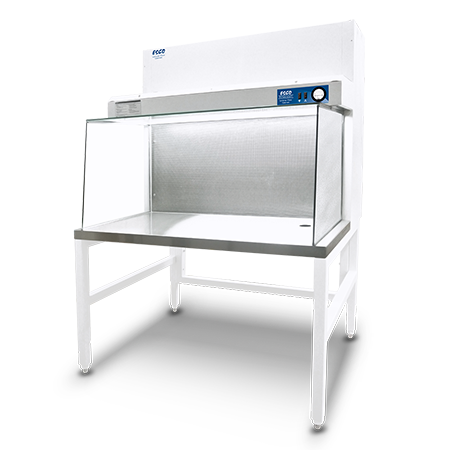

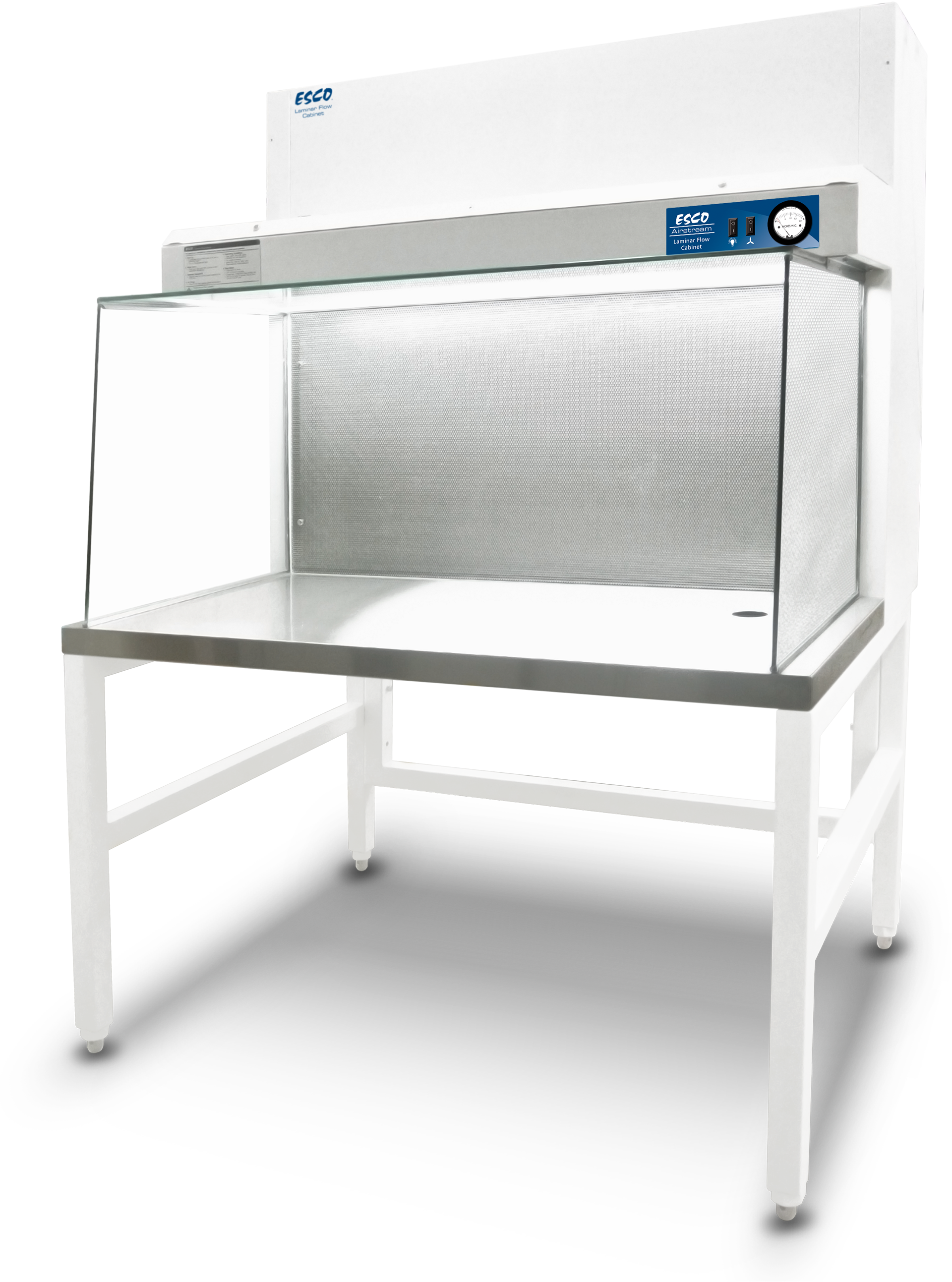

LHG-_-DS
Airstream® Gen 3 Horizontal Laminar Flow Cabinet
Scientific researches require complicated laboratory procedures and an expensive set of equipment. These laboratory equipment normally run for an average of 8 hours a day, which leads to substantial consumption of your power and expensive electricity bill. But worry no more, we have a solution for you! Airstream® Gen 3 Horizontal Laminar Flow Cabinets use energy-efficient technology. As a manufacturer of premium laminar flow cabinets, Esco does not settle until the best is achieved. To deliver the finest experience possible, every feature of a cabinet is carefully considered and fulfilled.
Esco's laminar air flow cabinet is a product of robust engineering combined with strategic ergonomic design. It provides long-term reliability and ultimate user comfort making it ideal for non-hazardous applications that need a sterile environment
Applications:
- Plant Tissue Culture
- Media Plate Preparation
- Electronics Inspection
- Medical Device Assembly
Models
| Item Code | Model Code | Description |
|---|---|---|
| Interior Height (2ft / 0.6m), Glass Sidewall, Fixed Sash Window | ||
| 2120387 | LHG-3AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120368 | LHG-4AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120372 | LHG-5AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120373 | LHG-6AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120417 | LHG-3AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2ft/0.6m H) , 115 VAC, 50/60 Hz |
| 2120419 | LHG-4AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2ft/0.6m H) , 115 VAC, 50/60 Hz |
| 2120421 | LHG-5AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2ft/0.6m H) , 115 VAC, 50/60 Hz |
| 2120423 | LHG-6AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2ft/0.6m H) , 115 VAC, 50/60 Hz |
| Interior Height (2.5ft / 0.8m), Glass Sidewall, Fixed Sash Window | ||
| 2120453 | LHG-3BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120455 | LHG-4BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120457 | LHG-5BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120459 | LHG-6BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120493 | LHG-3BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120495 | LHG-4BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120497 | LHG-5BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (5ft/1.5m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120499 | LHG-6BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| Interior Height (3ft / 0.9m), Glass Sidewall, Fixed Sash Window | ||
| 2120533 | LHG-3CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 3.0ft/0.9m H ) 230 VAC, 50/60 Hz |
| 2120535 | LHG-4CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 3.0ft/0.9m H ) 230 VAC, 50/60 Hz |
| 2120539 | LHG-6CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 3.0ft/0.9m H ) 230 VAC, 50/60 Hz |
| 2120573 | LHG-3CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (3ft/0.9m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
| 2120575 | LHG-4CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
| 2120579 | LHG-6CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (6ft/1.8m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
| Interior Height (3ft / 0.9m), Glass Sidewall, Fixed Sash Window for Plant Tissue Culture wit Glass Ceiling | ||
| 2120725 | LHG-4DS-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m external W, 3ft/0.9m internal W), Glass Ceiling230 VAC, 50/60 Hz |
| 2120726 | LHG-4DS-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Glass Sides (4ft/1.2m external W, 3ft/0.9m internal W), Glass Ceiling, 115 VAC, 50/60 Hz |
| Interior Height (2ft / 0.6m), Stainless Steel Sidewall, Fixed Sash Window | ||
| 2120377 | LHS-3AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120378 | LHS-4AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120379 | LHS-5AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120380 | LHS-6AG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2ft/0.6m H) 230 VAC, 50/60 Hz |
| 2120425 | LHS-3AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2ft/0.6m H) |
| 2120427 | LHS-4AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2ft/0.6m H) |
| 2120429 | LHS-5AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2ft/0.6m H) |
| 2120431 | LHS-6AG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2ft/0.6m H) |
| Interior Height (2.5ft / 0.8m), Stainless Steel Sidewall, Fixed Sash Window | ||
| 2120463 | LHS-3BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120465 | LHS-4BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120467 | LHS-5BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120469 | LHS-6BG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.5ft/0.8m H) 230 VAC, 50/60 Hz |
| 2120503 | LHS-3BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (3ft/0.9m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120505 | LHS-4BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120507 | LHS-5BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (5ft/1.5m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| 2120509 | LHS-6BG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 2.5ft/0.8m H) , 115 VAC, 50/60 Hz |
| Interior Height (3ft / 0.9m), Stainless Steel Sidewall, Fixed Sash Window | ||
| 2120545 | LHS-4CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H) 230 VAC, 50/60 Hz |
| 2120549 | LHS-6CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H) 230 VAC, 50/60 Hz |
| 2120704 | LHS-8CG-F8 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H) 230 VAC, 50/60 Hz |
| 2120585 | LHS-4CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (4ft/1.2m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
| 2120589 | LHS-6CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (6ft/1.8m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
| 2120719 | LHS-8CG-F9 | Horizontal Laminar Flow Cabinet, Gen 3 , Stainless Steel Sides (8ft/2.4m W, 3ft/0.9m H) , 115 VAC, 50/60 Hz |
Accessories
| Item Code | Model Code | Description |
|---|---|---|
| 5170251 | UV-15A | UV Lamp for 2ft, 3ft Cabinet |
| 5170255 | UV-30A | UV Lamp for 4ft, 5ft, 6ft Cabinets |
| 5170601 | FC-LHG/S-3A | Polycarbonate Front Cover for LHG/LHS-3A |
| 5170602 | FC-LHG/S-4A | Polycarbonate Front Cover for LHG/LHS-4A |
| 5170585 | FC-LHG/S-5A | Polycarbonate Front Cover for LHG/LHS-5A |
| 5170586 | FC-LHG/S-6A | Polycarbonate Front Cover for LHG/LHS-6A |
| 5170587 | FC-LHG/S-3B | Polycarbonate Front Cover for LHG/LHS-3B |
| 5170588 | FC-LHG/S-4B | Polycarbonate Front Cover for LHG/LHS-4B |
| 5170589 | FC-LHG/S-5B | Polycarbonate Front Cover for LHG/LHS-5B |
| 5170590 | FC-LHG/S-6B | Polycarbonate Front Cover for LHG/LHS-6B |
| 5170627 | FC-LHG/S-3C | Polycarbonate Front Cover for LHG/LHS-3C |
| 5170591 | FC-LHG/S-4C | Polycarbonate Front Cover for LHG/LHS-4C |
| 5170592 | FC-LHG/S-6C | Polycarbonate Front Cover for LHG/LHS-6C |
| 5130162 | SPC-5A0 Gen 2 | Support Stand with Caster Wheels (Height 28”) for 5ft cabinets |
| 5130154 | SPC-6A0 Gen 2 | Support Stand with Caster Wheels (Height 28”) for 6ft cabinets |
| 5130165 | SPC-3B0 Gen 2 | Support Stand with Caster Wheels (Height 34”) for 3ft cabinets |
| 5130166 | SPC-4B0 Gen 2 | Support Stand with Caster Wheels (Height 34”) for 4ft cabinets |
| 5130167 | SPC-5B0 Gen 2 | Support Stand with Caster Wheels (Height 34”) for 5ft cabinets |
| 5130168 | SPC-6B0 Gen 2 | Support Stand with Caster Wheels (Height 34”) for 6ft cabinets |
| 5130170 | SAL-3A0 Gen 2 | Support Stand with Leveling Feet - I (Height 28”) for 3ft cabinets |
| 5130134 | SAL-4A0 Gen 2 | Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets |
| 5130171 | SAL-5A0 Gen 2 | Support Stand with Leveling Feet - I (Height 28”) for 5ft cabinets |
| 5130172 | SAL-6A0 Gen 2 | Support Stand with Leveling Feet - I (Height 28”) for 6ft cabinets |
| 5130174 | SAL-3B0 Gen 2 | Support Stand with Leveling Feet - I (Height 34”) for 3ft cabinets |
| 5130175 | SAL-4B0 Gen 2 | Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets |
| 5130176 | SAL-5B0 Gen 2 | Support Stand with Leveling Feet - I (Height 34”) for 5ft cabinets |
| 5130177 | SAL-6B0 Gen 2 | Support Stand with Leveling Feet - I (Height 34”) for 6ft cabinets |
| 5130050 | STL-3A0 | Telescoping Stand with Leveling Feet (28" to 34") for 3ft cabinets |
| 5130051 | STL-4A0 | Telescoping Stand with Leveling Feet (28" to 34") for 4ft cabinets |
| 5130052 | STL-5A0 | Telescoping Stand with Leveling Feet (28" to 34") for 5ft cabinets |
| 5130053 | STL-6A0 | Telescoping Stand with Leveling Feet (28" to 34") for 6 ft cabinets |
| 5131150 | STL-8A0 Gen2 | Telescoping Stand with Leveling Feet (28" to 34") for 8 ft cabinets |
| 5090001 | PF-2 | Prefilter, 565 X 500mm |
| 5090002 | PF-3 | Prefilter, 717 X 500mm |
| 5090003 | PF-4 | Prefilter, 870 X 500mm |
