PCR-_A_

Airstream^® PCR Cabinet

Polymerase Chain Reaction is fundamental to almost all applications requiring a high copy number of starting material and is used in all laboratories working with DNA and RNA. Because of the high copy number generated during PCR, it is essential to prevent possible contamination of the PCR .

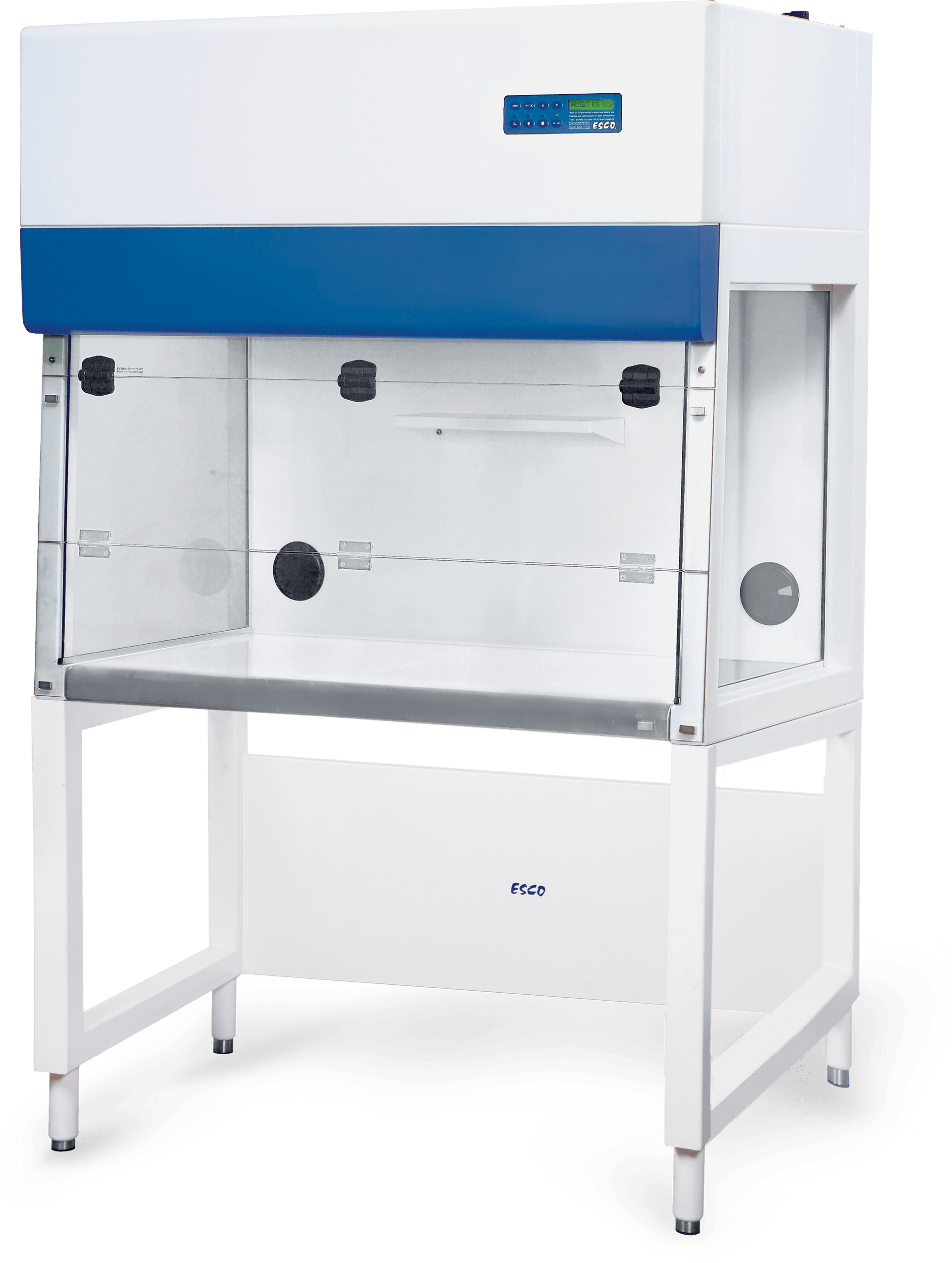

Esco Airstream® PCR Cabinet (PCR) is equipped with HEPA-filtered laminar flow, airflow monitoring, UV lamp & prefilter change alarm to provide a sterile environment for reagent and sample preparation during PCR mastermix preparation.

Request for Quote Online Product Form

Features

	Sentinel™ Silver Microprocessor Controller Displays basic parameters such as airflow on one screen Has alarms to notify users to change filters

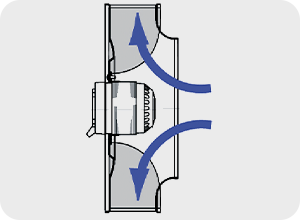

	High Performance Fan System German-made ebm-papst® permanently lubricated, centrifugal motor/blowers with external rotor designs.

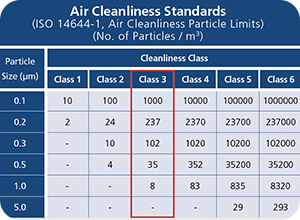

	Superior Air Cleanliness Provide ISO Class 3 air cleanliness within the work zone as per ISO 14644.1
	Proven Product Protection Vertical laminar airflow with HEPA-filtration, >99.99% at 0.3 microns.

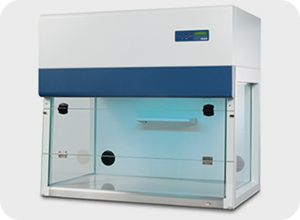

	UV Decontamination System UV lamp (253.7 nm) UV timer adjustable up to 18 hours. Default value at 60 minutes. UV-filtering polycarbonate front and glass sides shield the user from accidental UV exposure.
	Isocide™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Models

Item Code	Model Code	Description
2150001	PCR-3A1	Airstream^® PCR Cabinet, 3ft./0.9m, 220-230 VAC, 50 Hz
2150003	PCR-3A2	Airstream^® PCR Cabinet, 3ft./0.9m, 110-120 VAC, 50/60 Hz
2150004	PCR-3A3	Airstream^® PCR Cabinet, 3ft./0.9m, 220-230 VAC, 60 Hz
2150005	PCR-4A1	Airstream^® PCR Cabinet, 4ft./1.2m, 220-230 VAC, 50 Hz
2150007	PCR-4A2	Airstream^® PCR Cabinet, 4ft./1.2m, 110-120 VAC, 50/60 Hz
2150008	PCR-4A3	Airstream^® PCR Cabinet, 4ft./1.2m, 220-230 VAC, 60 Hz

Accessories

Item Code	Model Code	Description
5170251	UV-15A	UV Lamp for 3ft Cabinets
5170255	UV-30A	UV Lamp for 4ft Cabinets
5131345	SPC-3E0	Support Stand with Caster Wheels (Height 28”) for 3ft cabinets
5131346	SPC-4E0	Support Stand with Caster Wheels (Height 28”) for 4ft cabinets
5131354	SPC-3F0	Support Stand with Caster Wheels (Height 34”) for 3ft cabinets
5131355	SPC-4F0	Support Stand with Caster Wheels (Height 34”) for 4ft cabinets
5131348	SAL-3E0	Support Stand with Leveling Feet - I (Height 28”) for 3ft cabinets
5131349	SAL-4E0	Support Stand with Leveling Feet - I (Height 28”) for 4ft cabinets
5131351	SAL-3F0	Support Stand with Leveling Feet - I (Height 34”) for 3ft cabinets
5131352	SAL-4F0	Support Stand with Leveling Feet - I (Height 34”) for 4ft cabinets
